Quartz Screw-Cap Bottle, 5ml, Ø20×35mm, JGS2, PP Cap with PTFE Gasket, 1pc/ea, C051TC

Weight	100 g

SKU: C051TC

C051TC JGS2 Quartz 5 ml Screw-Cap Bottle 20mm OD 35mm Height PP PTFE Cap

Original price was: $43.00.Current price is: $39.00.

In Stock

JGS2 quartz screw-cap bottle, 5 ml, 20 mm OD × 35 mm. PP cap with PTFE gasket (PTFE/quartz caps available). Acid, base & organic solvent resistant. 350–1500 nm. 1 pc/ea. SKU: C051TC. Custom sizes available.

In Stock

SKU: C051TC Categories: Cuvettes, Products, Quartz Screw-Top Vials

Worldwide Timed Dispatch Available

Worldwide delivery to door service, hassle free shipping
Contact us for quotation of bulk purchase discount
Custom design. Send us graphic drawing for solution
POs for Academics. Pay after delivery.
Standard cuvettes ship in 3-5 days. Custom items 1-2 weeks.

Description

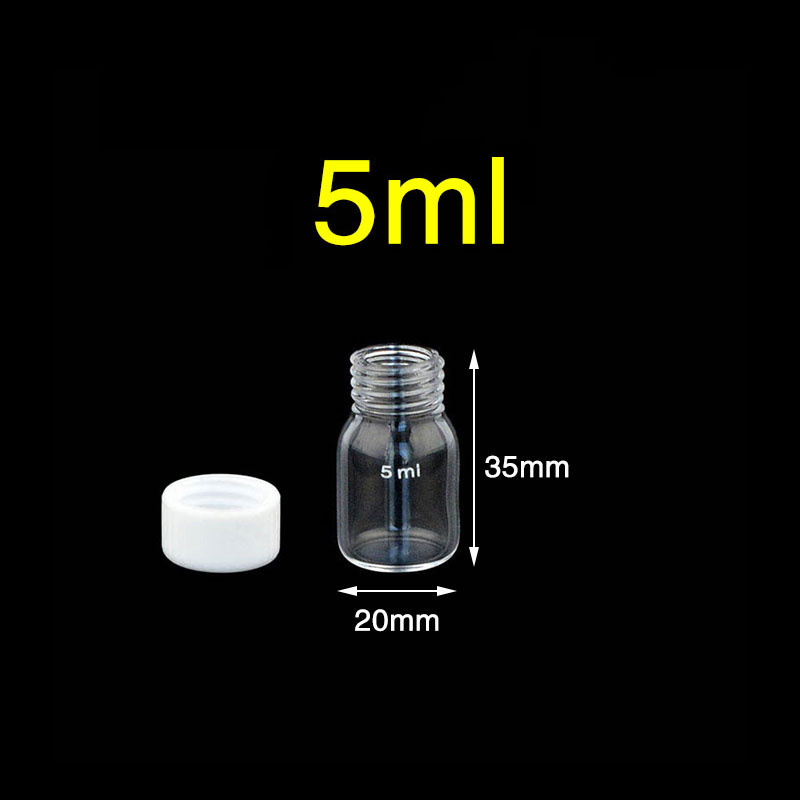

The C051TC is a 5 ml quartz screw-cap sample bottle manufactured from JGS2 Optical-Grade fused quartz — offering exceptional Vis-NIR transparency from 350 to 1,500 nm and outstanding chemical resistance to acids, bases, and organic solvents. Sealed with a PP screw cap with PTFE gasket for a leak-proof, chemically inert closure. The cylindrical body measures 20 mm OD × 35 mm height with a cylindrical clear body — suitable for both sample storage and direct spectroscopic measurement. 1 pc/ea.

Specifications

Parameter	Value	Parameter	Value
SKU	C051TC	Material	JGS2 Optical-Grade Fused Quartz
Volume	5 ml	Wavelength	350–1500 nm
Outer Diameter	20 mm	Exterior Height	35 mm
Default Cap	PP Cap + PTFE Gasket	Optional Caps	PTFE Cap · Quartz Cap (contact us)
Chemical Resistance	Acids · Bases · Organic Solvents	Temp. Rating	Quartz body: up to 1,100 °C
Pack	1 pc/ea

Cap Options: Ships with a PP (polypropylene) screw cap with PTFE gasket as standard. Need higher chemical or temperature resistance? We also offer solid PTFE caps and quartz caps — contact us to specify your preferred cap type at no extra lead time.

Applications

✔ Vis-NIR sample storage & measurement✔ Acid/base/organic reagent storage✔ Chemical synthesis & reaction vessels✔ High-temperature sample containment✔ Pharmaceutical & biotech R&D✔ Environmental water & soil analysis✔ Fluorescence & phosphorescence studies✔ Semiconductor wet-chemistry processing

Why JGS2 Quartz?

JGS2 (Optical-Grade fused quartz) delivers excellent optical transmission from 350 nm through 1,500 nm in the Vis-NIR range NIR — far superior to borosilicate glass which cuts off below 340 nm. JGS2 quartz is chemically inert against acids (HCl, H₂SO₄, HNO₃), bases (NaOH, KOH), and organic solvents (acetone, ethanol, toluene, DMSO). It withstands thermal shock and continuous temperatures up to 1,100 °C, making it ideal for demanding analytical and synthetic chemistry workflows.

Custom Manufacturing

We Specialize in Custom Quartz Bottles & Vials
Every lab has unique requirements. We manufacture quartz screw-cap bottles to your exact specifications:
• Custom volumes — from 1 ml to 500 ml and beyond
• Custom dimensions — any diameter, height, wall thickness, or shape
• Custom threading — GL14, GL18, GL25, GL32, GL45, or proprietary threads
• Custom caps — PP/PTFE gasket, solid PTFE, quartz, silicone septum, or ground-glass stopper
• Custom optical finish — polished windows, frosted sides, or all-clear
• Custom markings — graduated scales, logo etching, or serial numbers
Typical lead time: 5–10 business days. MOQ as low as 5 pieces for standard modifications. Contact us at sales@machinedquartz.com with your drawing or specifications — we reply within 24 hours with a free quote.

Usage & Care

Cleaning: Rinse with distilled water, ethanol, or acetone. For stubborn residues, soak in dilute HNO₃ or piranha solution. Avoid hydrofluoric acid (HF). Temperature: The quartz body withstands continuous use up to 1,100 °C. The PP cap is rated to ~120 °C; remove cap before high-temperature processing or switch to a PTFE or quartz cap for higher-temp needs. Handling: Hold by the threaded neck or body; avoid touching optical surfaces with bare fingers to prevent fingerprint residue.

Specifications are nominal and may vary ±5%. Images are representative; actual product appearance may differ slightly. JGS2 quartz provides excellent transmission from 350 to 1,500 nm. Not compatible with hydrofluoric acid (HF) or hot phosphoric acid.
