Quartz Cylinder Cuvettes
Our quartz cylinder cuvette collection includes cylindrical reflectance cuvettes for diffuse-reflectance spectroscopy (DRS), integrating-sphere measurements, and powder analysis, along with stoppered cylindrical cuvettes for sealed UV-Vis absorbance work with volatile or sensitive samples.
Reflectance cuvettes are open-top cylindrical cups fabricated using Sintered 83 (>83% transmittance), available in outer diameters from φ7 mm to φ64 mm. Stoppered cylindrical cuvettes feature Molded 83 monolithic construction with two-way light optical windows, glass stoppers, and path lengths from 1 mm to 10 mm.
All cuvettes are manufactured from UV-grade quartz (JGS1) with a working wavelength range of 190–2500 nm. Custom diameters, heights, and configurations are available on request — contact us for a quote.
10%

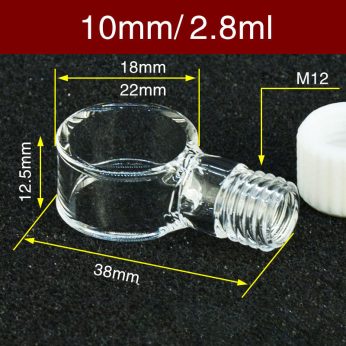

Quartz 10mm Stoppered Cylindrical Cuvette, 2.8ml, Molded 83, Two-way Light, Stopper, 1pc/ea, C102SS14
Original price was: $323.00.$291.00Current price is: $291.00.10%

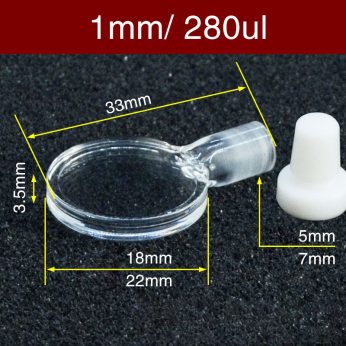

Quartz 1mm Stoppered Cylindrical Cuvette, 280µl, Molded 83, Two-way Light, Stopper, 1pc/ea, C012SS1
Original price was: $323.00.$291.00Current price is: $291.00.10%

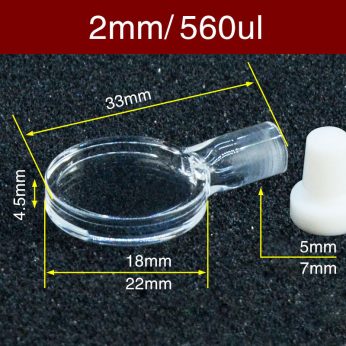

Quartz 2mm Stoppered Cylindrical Cuvette, 560µl, Molded 83, Two-way Light, Stopper, 1pc/ea, C022SS
Original price was: $323.00.$291.00Current price is: $291.00.10%
Quartz φ10mm Cylindrical Reflectance Cuvette, Sintered 83, φ8mm×10mm Interior, 1pc/ea, C101WS
Original price was: $41.00.$37.00Current price is: $37.00.10%
Quartz φ10mm Cylindrical Reflectance Cuvette, Sintered 83, φ8mm×14mm Interior, 1pc/ea, C101WS1
Original price was: $41.00.$37.00Current price is: $37.00.10%
Quartz φ10mm Cylindrical Reflectance Cuvette, Sintered 83, φ8mm×19mm Interior, 1pc/ea, C101WS2
Original price was: $41.00.$37.00Current price is: $37.00.10%
Quartz φ10mm Cylindrical Reflectance Cuvette, Sintered 83, φ8mm×39mm Interior, 1pc/ea, C101WS3
Original price was: $41.00.$37.00Current price is: $37.00.10%
Quartz φ12.5mm Cylindrical Reflectance Cuvette, Sintered 83, φ10mm×2mm Interior, 1pc/ea, C12.51WS
Original price was: $41.00.$37.00Current price is: $37.00.10%
Quartz φ12mm Cylindrical Reflectance Cuvette, Sintered 83, φ10mm×19mm Interior, 1pc/ea, C121WS
Original price was: $41.00.$37.00Current price is: $37.00.10%
Quartz φ15mm Cylindrical Reflectance Cuvette, Sintered 83, φ13mm×34mm Interior, 1pc/ea, C151WS
Original price was: $41.00.$37.00Current price is: $37.00.10%
Quartz φ16mm Cylindrical Reflectance Cuvette, Sintered 83, φ14mm×99mm Interior, 1pc/ea, C161WS
Original price was: $129.00.$117.00Current price is: $117.00.9%
Quartz φ17mm Cylindrical Reflectance Cuvette, Sintered 83, φ15mm×1mm Interior, 1pc/ea, C171WS
Original price was: $48.00.$44.00Current price is: $44.00.9%
Quartz φ17mm Cylindrical Reflectance Cuvette, Sintered 83, φ15mm×3mm Interior, 1pc/ea, C171WS1
Original price was: $48.00.$44.00Current price is: $44.00.10%
Quartz φ29mm Cylindrical Reflectance Cuvette, Sintered 83, φ25mm×36mm Interior, 1pc/ea, C291WS1
Original price was: $51.00.$46.00Current price is: $46.00.9%
Quartz φ30mm Cylindrical Reflectance Cuvette, Sintered 83, φ26mm×28mm Interior, 1pc/ea, C301WS1
Original price was: $48.00.$44.00Current price is: $44.00.9%
Quartz φ30mm Cylindrical Reflectance Cuvette, Sintered 83, φ26mm×8mm Interior, 1pc/ea, C301WS
Original price was: $48.00.$44.00Current price is: $44.00.10%
Quartz φ32mm Cylindrical Reflectance Cuvette, Sintered 83, φ28mm×23mm Interior, 1pc/ea, C321WS
Original price was: $52.00.$47.00Current price is: $47.00.10%
Quartz φ36mm Cylindrical Reflectance Cuvette, Sintered 83, φ32mm×23mm Interior, 1pc/ea, C361WS
Original price was: $61.00.$55.00Current price is: $55.00.10%
Quartz φ38mm Cylindrical Reflectance Cuvette, Sintered 83, φ34mm×51mm Interior, 1pc/ea, C381WS
Original price was: $71.00.$64.00Current price is: $64.00.10%
Quartz φ40mm Cylindrical Reflectance Cuvette, Sintered 83, φ36mm×5mm Interior, 1pc/ea, C401WS
Original price was: $65.00.$59.00Current price is: $59.00.10%
Quartz φ44mm Cylindrical Reflectance Cuvette, Sintered 83, φ40mm×18mm Interior, 1pc/ea, C441WS1
Original price was: $65.00.$59.00Current price is: $59.00.10%
Quartz φ44mm Cylindrical Reflectance Cuvette, Sintered 83, φ40mm×19mm Interior, 1pc/ea, C441WS2
Original price was: $65.00.$59.00Current price is: $59.00.10%
Quartz φ44mm Cylindrical Reflectance Cuvette, Sintered 83, φ40mm×8mm Interior, 1pc/ea, C441WS
Original price was: $65.00.$59.00Current price is: $59.00.10%
Quartz φ50mm Cylindrical Reflectance Cuvette, Sintered 83, φ45mm×27.5mm Interior, 1pc/ea, C501WS1
Original price was: $76.00.$69.00Current price is: $69.00.10%
Quartz φ50mm Cylindrical Reflectance Cuvette, Sintered 83, φ47mm×28.5mm Interior, 1pc/ea, C501WS
Original price was: $71.00.$64.00Current price is: $64.00.10%
Quartz φ60mm Cylindrical Reflectance Cuvette, Sintered 83, φ55.2mm×27.6mm Interior, 1pc/ea, C601WS
Original price was: $75.00.$68.00Current price is: $68.00.10%
Quartz φ64mm Cylindrical Reflectance Cuvette, Sintered 83, φ60mm×36mm Interior, 1pc/ea, C641WS
Original price was: $76.00.$69.00Current price is: $69.00.10%
Quartz φ64mm Cylindrical Reflectance Cuvette, Sintered 83, φ60mm×50mm Interior, 1pc/ea, C641WS1
Original price was: $95.00.$86.00Current price is: $86.00.10%
Quartz φ7mm Cylindrical Reflectance Cuvette, Sintered 83, φ5mm×14mm Interior, 1pc/ea, C071WS
Original price was: $41.00.$37.00Current price is: $37.00.10%
