Quartz Custom Cuvettes — Specialized Optical Cells for Advanced Spectroscopy
Our custom quartz cuvette collection features over 100 specialized designs engineered for applications beyond the scope of standard product lines. Every cell is manufactured from high-purity JGS1 fused silica with full UV-Vis-NIR transparency across 190–2500 nm, and each optical window is individually polished to spectroscopic grade.

What You’ll Find in This Category

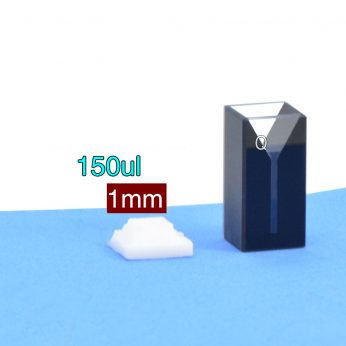

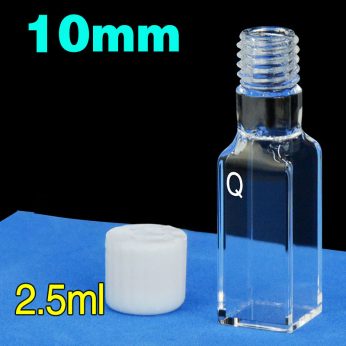

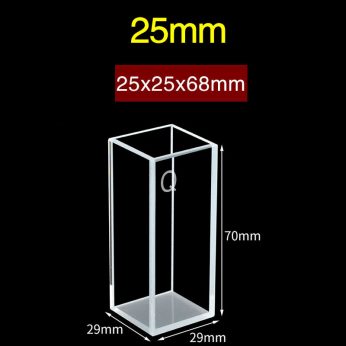

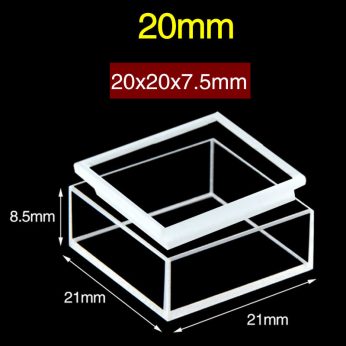

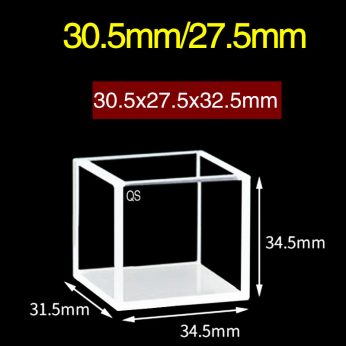

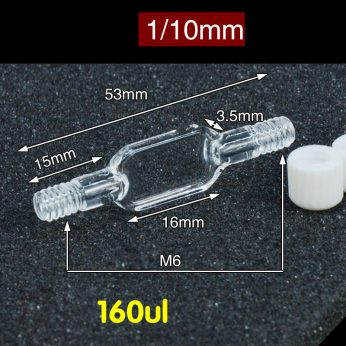

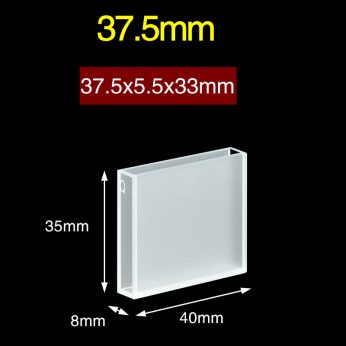

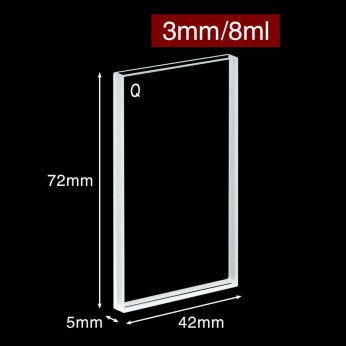

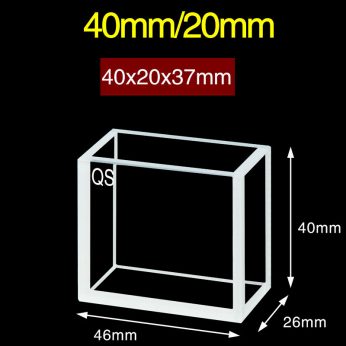

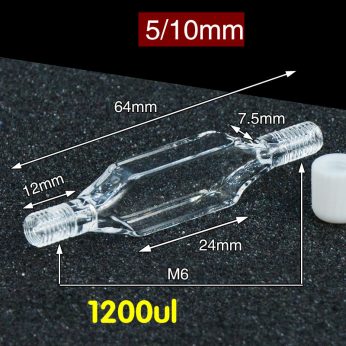

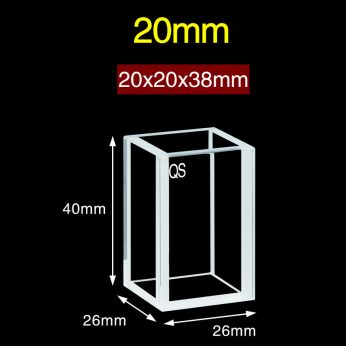

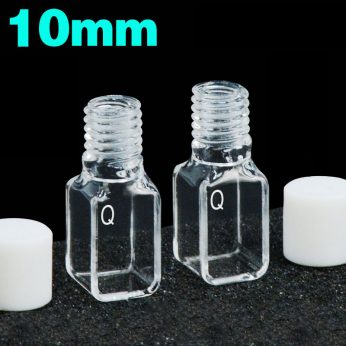

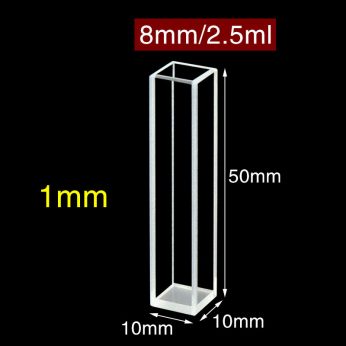

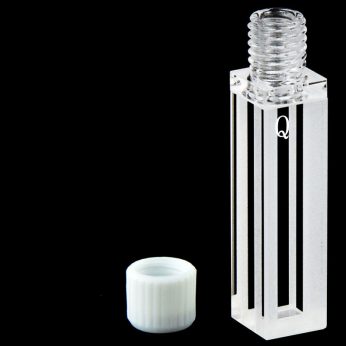

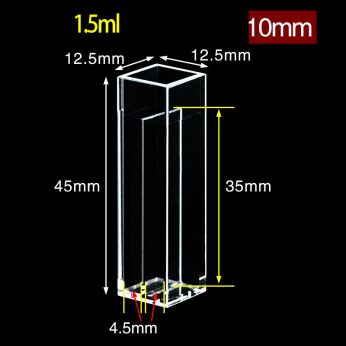

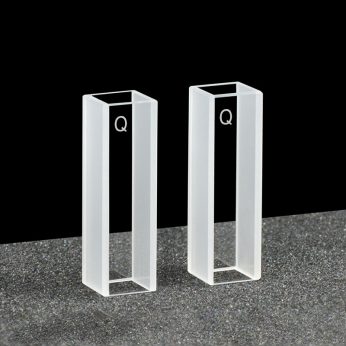

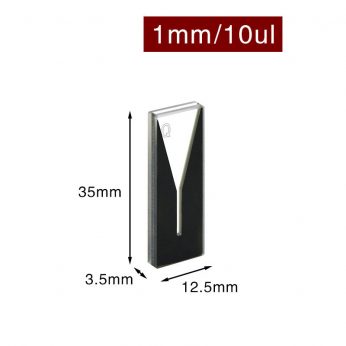

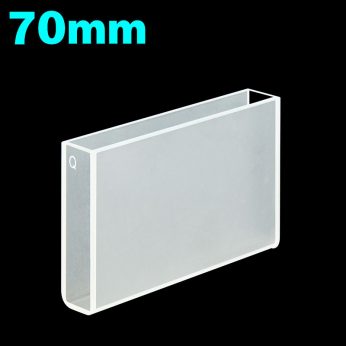

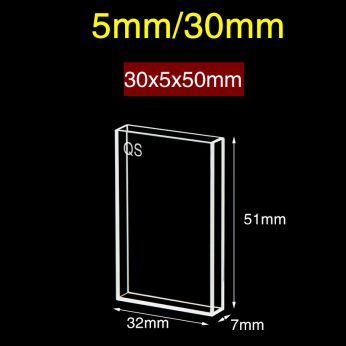

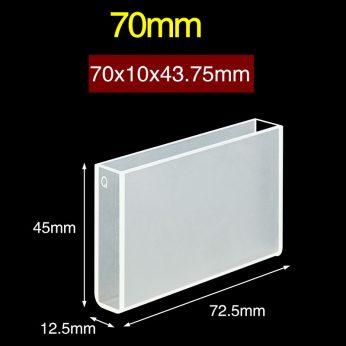

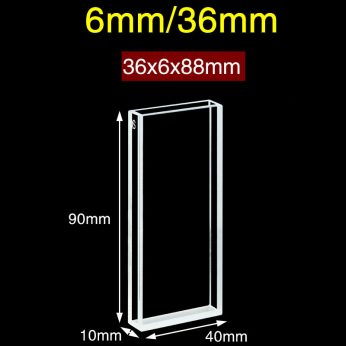

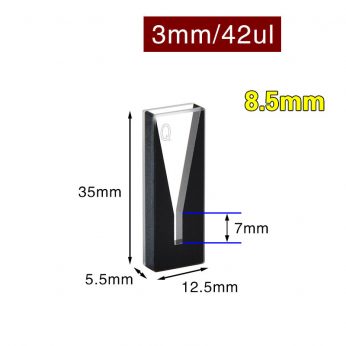

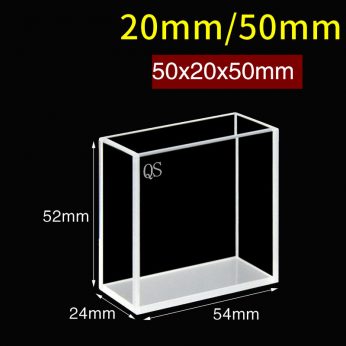

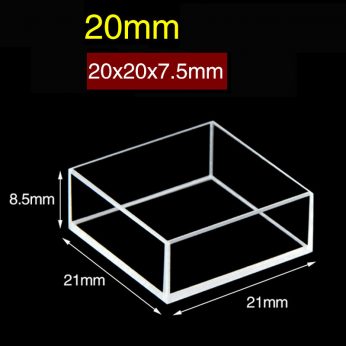

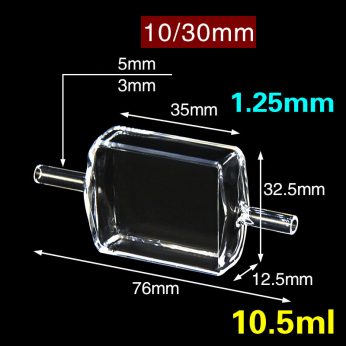

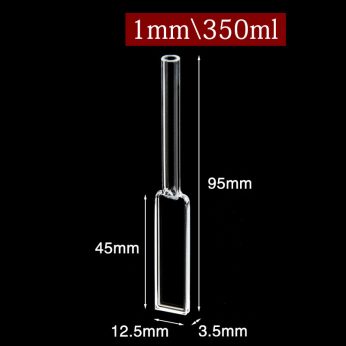

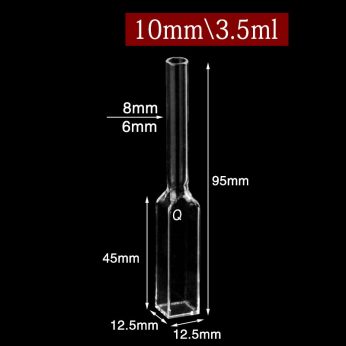

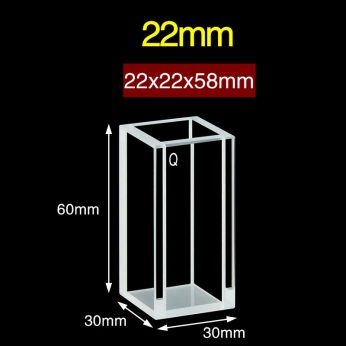

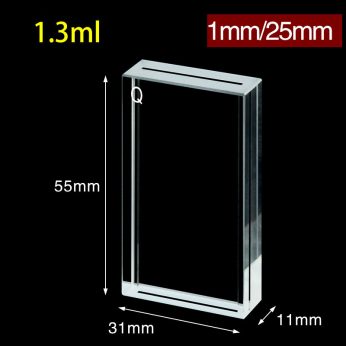

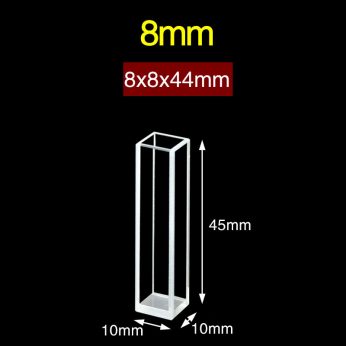

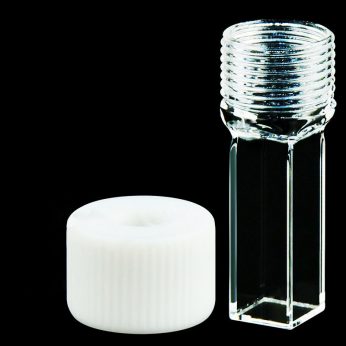

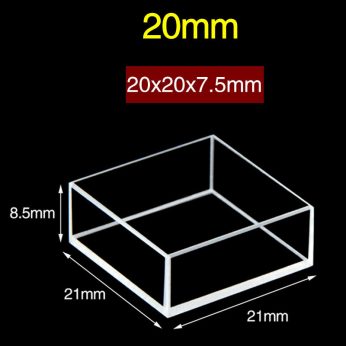

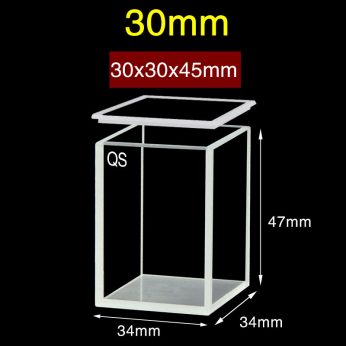

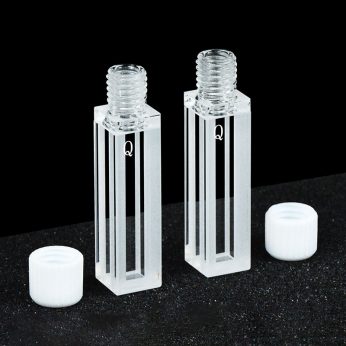

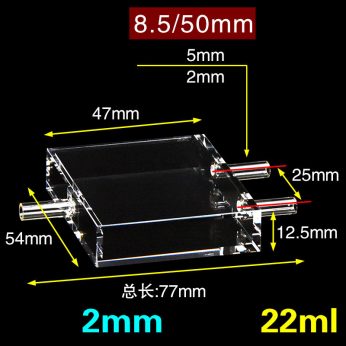

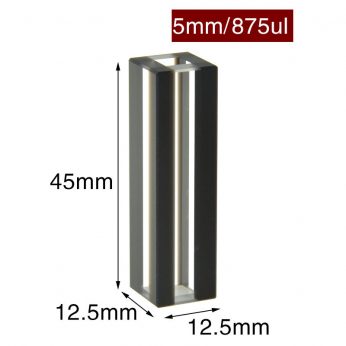

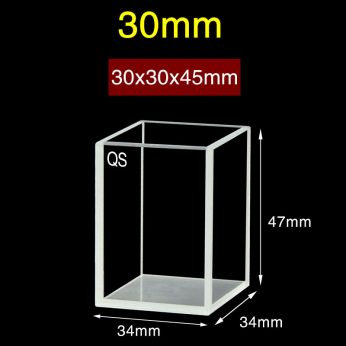

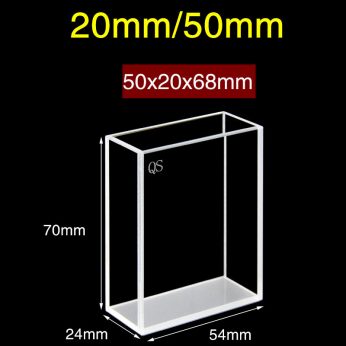

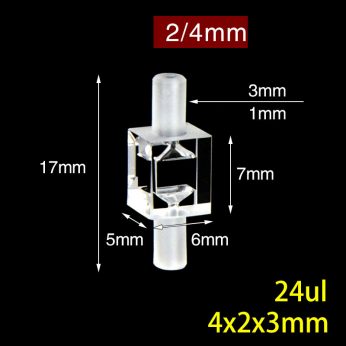

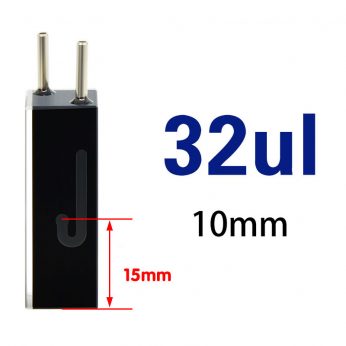

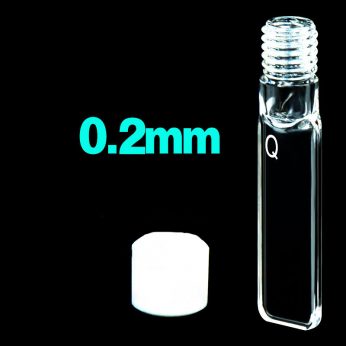

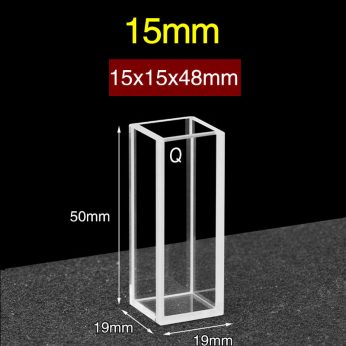

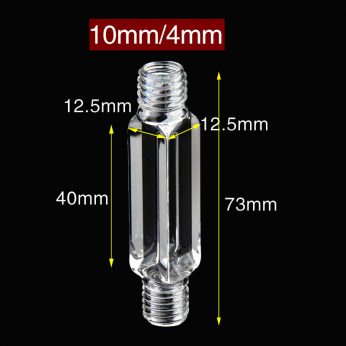

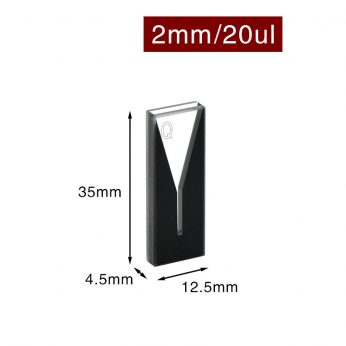

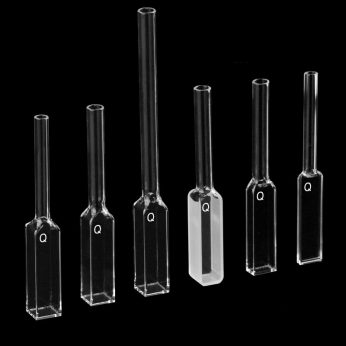

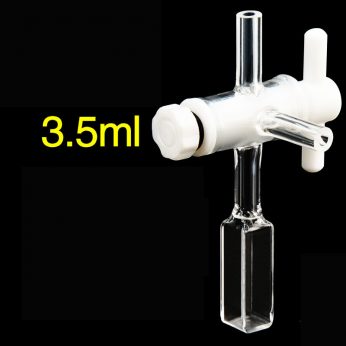

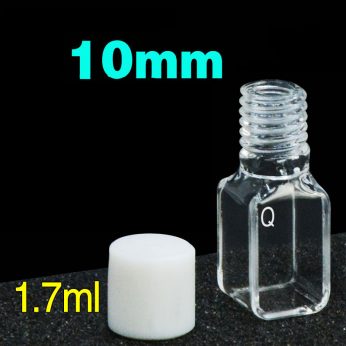

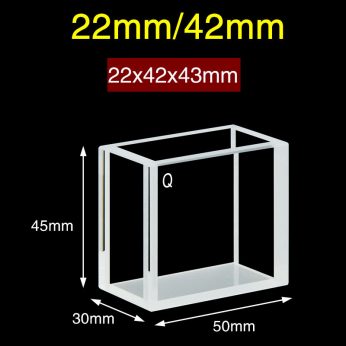

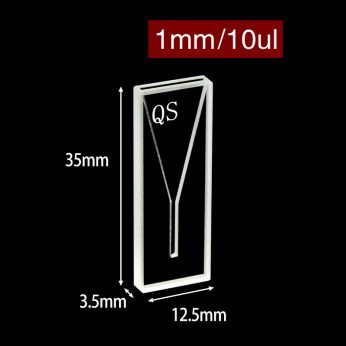

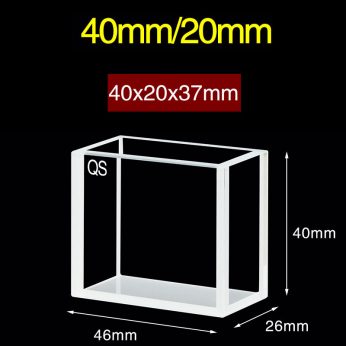

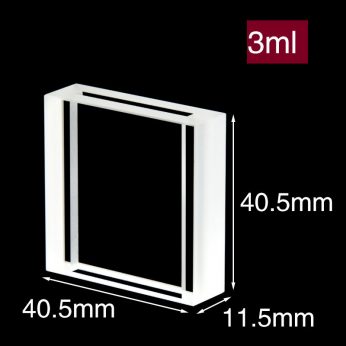

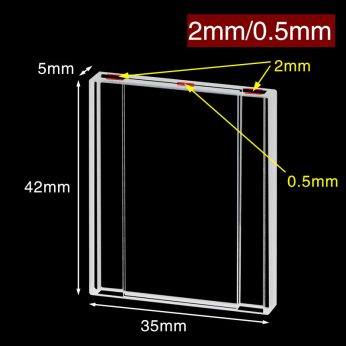

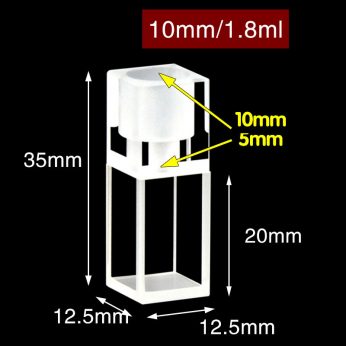

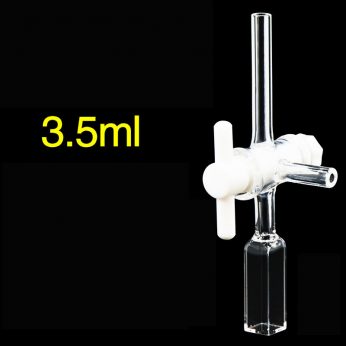

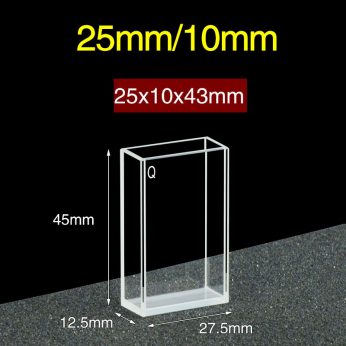

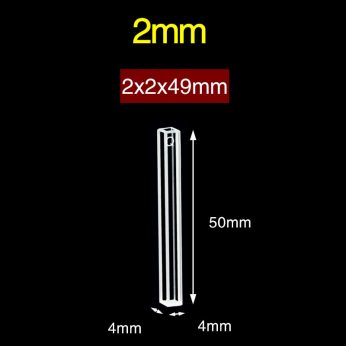

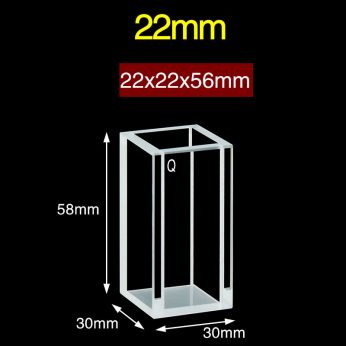

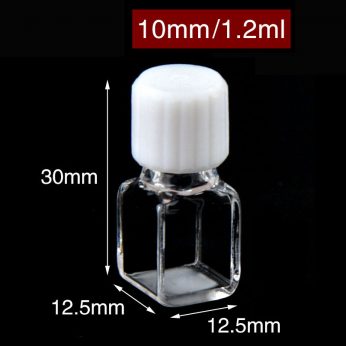

This collection spans a wide range of specialized configurations, including large-format fluorescence cuvettes (up to 70 mm path length) with four-way and five-way optical access, ultra-micro cells with volumes as low as 10 μl, flow cuvettes with integrated PTFE valves for continuous-flow experiments, threaded screw-cap cuvettes for volatile or air-sensitive samples, through-hole designs for fiber-optic coupling, black-walled cells for stray-light suppression, and multi-window cells for advanced excitation/emission geometries.

Fabrication Methods
Products in this category are built using three fabrication techniques, each suited to different experimental demands. Standard 80 (>80% transmittance) uses precision-glued quartz panels — ideal for routine aqueous measurements. Sintered 83 (>83% transmittance) fuses quartz panels at high temperature without adhesive — chemically resistant to strong acids, bases, and most organic solvents. Molded 83 (>83% transmittance) is precision-molded from a single piece of quartz with no adhesive joints — the most chemically inert option, compatible with virtually all solvents.

Need a Fully Bespoke Design?
If none of the listed products match your requirements, we manufacture quartz cuvettes to your exact specifications — custom path lengths, window counts, chamber dimensions, tube fittings, closure types, and more. Request a custom quote with your drawing or specifications and our engineering team will respond within 24 hours.
