(C054TR) Quartz Micro Cuvette, 5 mm Path, 875 µL

Weight	30 g

SKU: C054TR

Original price was: $299.00.Current price is: $270.00.

In Stock

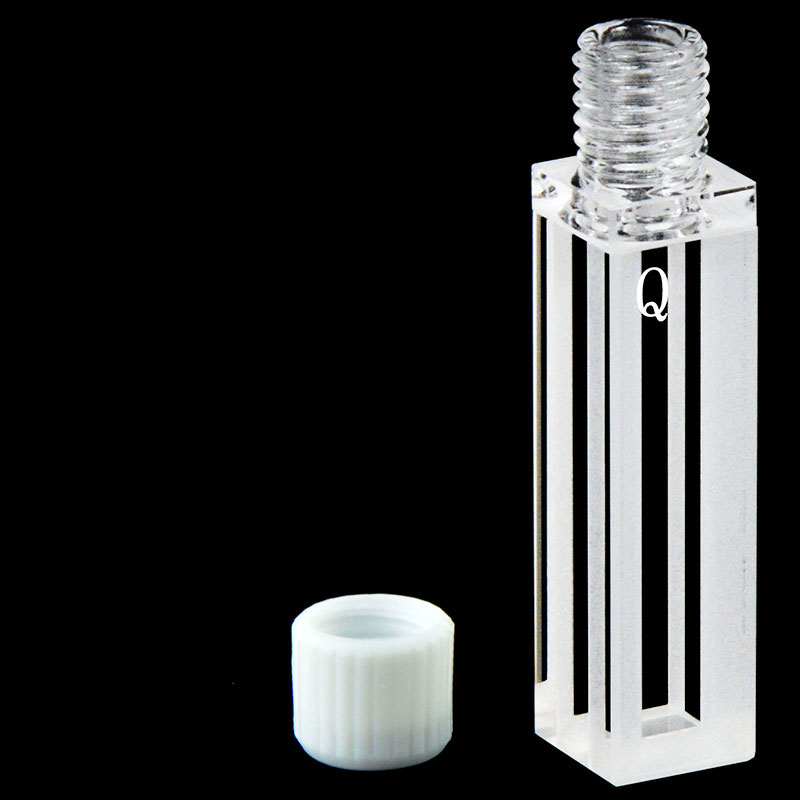

C054TR is a JGS1 quartz micro cuvette with a 5 mm optical path, Four-Way Light geometry and 875 µL nominal capacity for fluorescence spectroscopy. Its threaded neck and included screw cap suit methods that use a closed-top sample chamber. Supplied as 1 cuvette.

In Stock

SKU: C054TR Categories: Cuvettes, Products, Quartz Custom Cuvettes Brand: MachinedQuartz

Shipping and order support

Worldwide delivery to door service, hassle free shipping
Contact us for quotation of bulk purchase discount
Custom design. Send us graphic drawing for solution
POs for Academics. Pay after delivery.
Availability and dispatch timing vary by item and quantity. Contact us to confirm timing for your order.

Description

C054TR is a JGS1 quartz micro cuvette for fluorescence spectroscopy, built around a 5 mm optical path in a compact square body. The threaded neck and included screw cap give you a defined closed-top format, while the Four-Way Light layout provides optical access from multiple sides. Its 875 µL nominal capacity makes it a practical choice when you need a small cuvette body without moving to a larger cell format.

Path Length: 5 mm
Sample Volume (Nominal): 875 µL
Closure Type: Screw Cap

Selection Specifications

Product Kind	Cuvette
Cell Type	Micro Cuvette
Measurement Mode	Fluorescence Spectroscopy
Pack Quantity	1 Piece
Path Length	5 mm
Light Transmission Configuration	Four-Way Light
Wavelength Range — Lower Limit	200 nm
Wavelength Range — Upper Limit	2500 nm
Sample Volume (Nominal)	875 µL
External Dimensions	12.5 × 12.5 × 56 mm
Cell Body Dimensions	12.5 × 12.5 × 45 mm
Uncapped Cell Dimensions	12.5 × 12.5 × 56 mm
Overall Dimensions with Closure	12.5 × 12.5 × 59 mm
Overall Height without Closure	56 mm
External Dimensions Scope	Uncapped Cell
Body Height	45 mm
Overall Height with Closure	59 mm
Base Dimensions	12.5 × 12.5 mm
Material	Quartz
Material Grade	JGS1
Closure Type	Screw Cap
Closure Included	Yes

Choose this option

Choose C054TR when your method uses a 5 mm path and you want a micro cuvette with a screw-cap closure already included. This format is useful when you need direct top filling with a cap in place for routine handling, and when holder clearance needs to be planned around both the optical body and the neck above it.

What makes this option different

5 mm optical path: suited to methods built around this shorter path length.
Four-Way Light layout: allows optical access from multiple sides of the sample region.
Threaded neck with cap included: supplied as a closed-top micro cuvette rather than an open-top body.
Defined body and overall heights: 45 mm body height, 56 mm uncapped height and 59 mm overall height with the cap fitted.

Using this cell

Unscrew the cap, fill the cell, and re-seat the cap gently before measurement or routine handling. Keep the optical faces clean and dry on the outside, and avoid bubbles or residue in the illuminated region.

The 875 µL figure is the nominal capacity of the cell, not a minimum working volume. Set your fill level so the beam passes fully through covered sample under your own instrument conditions.

First-use check

Inspect the optical faces, threaded neck and cap seating surfaces before filling.
Rinse with a cleaning method suitable for your sample and dry the exterior windows with non-abrasive optical tissue.
Check holder fit with the cell both uncapped and capped if the cap will remain in place during measurement.

Fit and optical alignment

The square base is 12.5 × 12.5 mm, which helps with holder seating in standard micro-cuvette positions. For clearance checks, distinguish between the 45 mm optical body, the 56 mm uncapped height including the neck, and the 59 mm overall height with the cap installed.

Z Height is not stated for this SKU. If your instrument has a fixed beam height, confirm that the beam crosses the intended sample region before routine use.

Solvents and cleaning

This cell is made from JGS1 quartz. Choose sample and cleaning conditions for the complete assembled cell, including the closure. Do not use hydrofluoric acid on quartz. Avoid hot strong alkalis and abrasive cleaning materials.

For general fabrication background, see Compare fabrication methods. If your work involves aggressive chemicals, extended contact time or unusual cleaning steps, please check suitability before ordering.

Included with this option

1 quartz micro cuvette with screw cap.

Availability and ordering

Order this specification directly, or contact us to check current availability and dispatch timing. If temporarily unavailable, additional preparation or production time may be needed. For a required delivery date, contact us before checkout; preparation or production is separate from carrier transit and customs clearance.

Discuss a custom version

We coordinate custom JGS1 quartz cuvette projects for changes involving dimensions, optical path length, sample volume, optical windows or Z Height, closures and fabrication requirements. Send a dimensioned drawing or labelled sketch together with holder details, wavelength range, sample chemistry and target quantity. Discuss your requirements and quote part number C054TR.
