(C054TR1) Quartz Micro Cuvette, 5 mm Path, 875 µL, Pack of 2

Weight	30 g

SKU: C054TR1

Original price was: $597.00.Current price is: $538.00.

In Stock

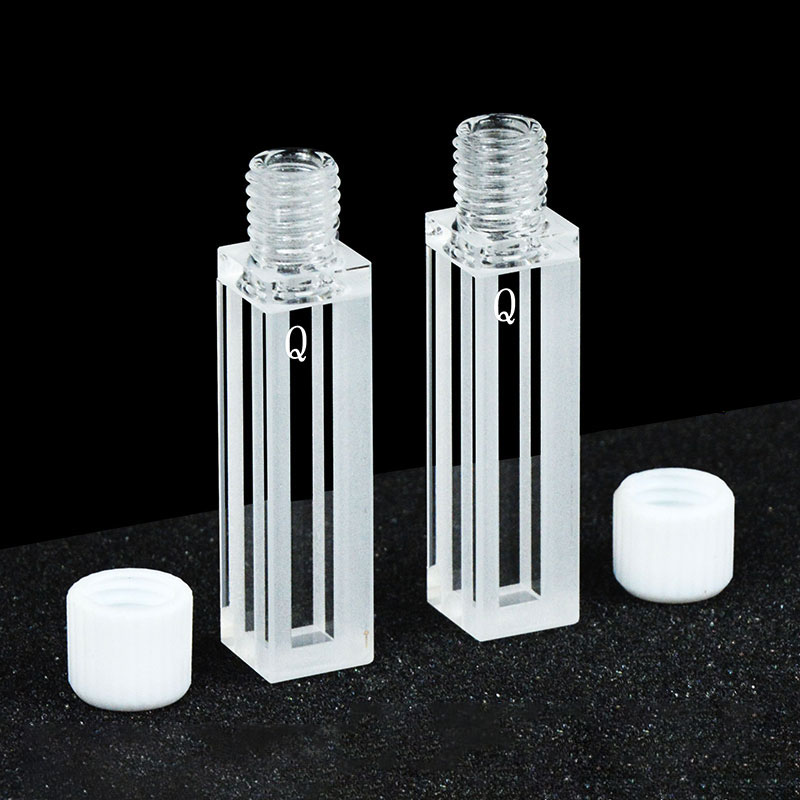

C054TR1 is a JGS1 quartz micro cuvette with a 5 mm optical path, Four-Way Light geometry and 875 µL nominal capacity for fluorescence spectroscopy. Its threaded neck and included screw cap suit methods that use a closed-top sample chamber. Supplied as a pack of 2 cuvettes.

In Stock

SKU: C054TR1 Categories: Cuvettes, Products, Quartz Custom Cuvettes Brand: MachinedQuartz

Shipping and order support

Worldwide delivery to door service, hassle free shipping
Contact us for quotation of bulk purchase discount
Custom design. Send us graphic drawing for solution
POs for Academics. Pay after delivery.
Availability and dispatch timing vary by item and quantity. Contact us to confirm timing for your order.

Description

C054TR1 is a JGS1 quartz micro cuvette for fluorescence spectroscopy, supplied as a pack of two matching-format cells. Each cuvette combines a 5 mm optical path, Four-Way Light geometry and a threaded neck with screw cap, giving you a compact closed-top format with optical access from multiple sides. The two-cuvette sales pack is useful when you want separate cells ready for blank and sample work or duplicate runs in the same geometry.

Path Length: 5 mm
Sample Volume (Nominal): 875 µL
Closure Type: Screw Cap

Selection Specifications

Product Kind	Cuvette
Cell Type	Micro Cuvette
Measurement Mode	Fluorescence Spectroscopy
Pack Quantity	Pack of 2
Path Length	5 mm
Light Transmission Configuration	Four-Way Light
Wavelength Range — Lower Limit	200 nm
Wavelength Range — Upper Limit	2500 nm
Sample Volume (Nominal)	875 µL
External Dimensions	12.5 × 12.5 × 56 mm
Cell Body Dimensions	12.5 × 12.5 × 45 mm
Uncapped Cell Dimensions	12.5 × 12.5 × 56 mm
Overall Dimensions with Closure	12.5 × 12.5 × 59 mm
Overall Height without Closure	56 mm
External Dimensions Scope	Uncapped Cell
Body Height	45 mm
Overall Height with Closure	59 mm
Base Dimensions	12.5 × 12.5 mm
Material	Quartz
Material Grade	JGS1
Closure Type	Screw Cap
Closure Included	Yes

Choose this option

Choose C054TR1 when you need this 5 mm threaded micro-cuvette format as a two-cuvette purchase. It suits users who want the same closed-top geometry available for paired preparation or repeated measurements, while keeping the same nominal capacity and body dimensions across both cells.

What makes this option different

Pack of 2 cuvettes: this sale option supplies two cells in the same format.
5 mm optical path: suited to methods built around this shorter path length.
Four-Way Light layout: allows optical access from multiple sides of the sample region.
Threaded neck with cap included: each cuvette is supplied as a closed-top micro format rather than an open-top body.

Using this cell

Unscrew the cap, fill the cuvette, and re-seat the cap gently before measurement or routine handling. When using the pair for blanks, samples or duplicate runs, keep the same orientation in the holder so the beam passes through the same faces each time.

The 875 µL figure is the nominal capacity per cuvette, not a minimum working volume. Set the fill level so the illuminated region is fully covered under your own measurement conditions.

First-use check

Inspect both cuvettes, the optical faces and the cap seating surfaces before filling.
Rinse with a cleaning method suitable for your sample and dry the exterior windows with non-abrasive optical tissue.
Test holder fit with one cuvette uncapped and capped if the cap will remain in place during measurement.

Fit and optical alignment

Each cuvette has a 12.5 × 12.5 mm square base. For holder and clearance planning, distinguish between the 45 mm optical body, the 56 mm uncapped height including the neck, and the 59 mm overall height with the cap fitted.

Z Height is not stated for this SKU. If your instrument has a fixed beam height, check alignment to the intended sample region before routine use, especially when you want comparable results across both cuvettes in the pack.

Solvents and cleaning

These cuvettes are made from JGS1 quartz. Choose sample and cleaning conditions for the complete assembled cell, including the closure. Do not use hydrofluoric acid on quartz. Avoid hot strong alkalis and abrasive cleaning materials.

For general fabrication background, see Compare fabrication methods. If your work involves aggressive chemicals, extended contact time or unusual cleaning steps, please check suitability before ordering.

Included with this option

2 quartz micro cuvettes with screw caps.

Availability and ordering

Order this specification directly, or contact us to check current availability and dispatch timing. If temporarily unavailable, additional preparation or production time may be needed. For a required delivery date, contact us before checkout; preparation or production is separate from carrier transit and customs clearance.

Discuss a custom version

We coordinate custom JGS1 quartz cuvette projects for changes involving dimensions, optical path length, sample volume, optical windows or Z Height, closures and fabrication requirements. Send a dimensioned drawing or labelled sketch together with holder details, wavelength range, sample chemistry and target quantity. Discuss your requirements and quote part number C054TR1.
