Quartz 5mm Quartz Fluorescence Cuvette, 0.8ml, Sintered 83, Four-Way Light, No Cap, 1pc/ea, C054CR

Weight	30 g

SKU: C054CR

C054CR Quartz 5mm Four-Way Light Quartz Fluorescence Cuvette 0.8ml Sintered 83

Original price was: $109.00.Current price is: $99.00.

In Stock

Quartz 5mm quartz fluorescence cuvette, 0.8ml, Sintered 83 (>83% transmittance). Four-Way Light. Open Top (No Cap). 190–2500 nm. SKU: C054CR.

In Stock

SKU: C054CR Categories: Cuvettes, Products, Quartz Custom Cuvettes Brand: MachinedQuartz

Worldwide Timed Dispatch Available

Worldwide delivery to door service, hassle free shipping
Contact us for quotation of bulk purchase discount
Custom design. Send us graphic drawing for solution
POs for Academics. Pay after delivery.
Standard cuvettes ship in 3-5 days. Custom items 1-2 weeks.

Description

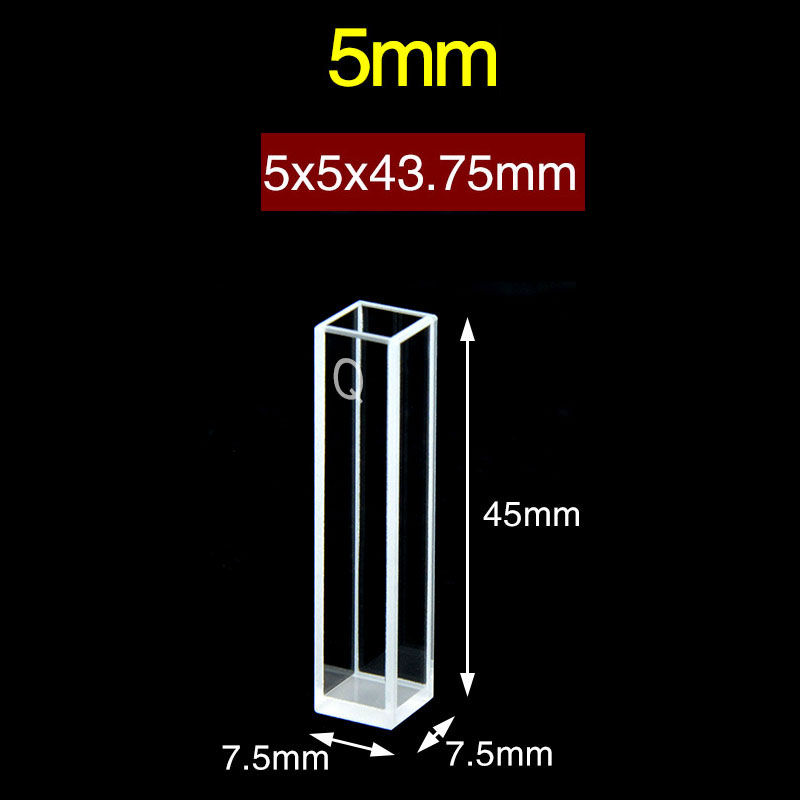

The C054CR is a quartz quartz fluorescence cuvette with 5mm path length and four-way light optical configuration — all four vertical faces are polished to optical grade, enabling both standard UV-Vis absorbance and 90° fluorescence detection. With a 0.8ml internal volume (5 × 5 × 43.75 mm chamber), the cell is compatible with most commercial spectrophotometers. Fabricated using Sintered 83 (>83% transmittance) — high-temperature sintered to fuse quartz panels without adhesive. Features a standard fluorescence cuvette profile (5mm x 5mm x 43.75mm internal) in a 7.5mm x 7.5mm outer body, with four crystal-clear polished windows and the ‘Q’ quality marking for reliable four-way optical measurements.

Technical Specifications — Quartz Fluorescence Cuvette
Material	Quartz	SKU	C054CR
Path Length	5mm	Internal Volume	0.8ml
Optical Windows	4 (Four-Way Light)	Fabrication	Sintered 83
Transmittance	>83%	Wavelength	190–2500 nm
Exterior Dimensions	7.5 × 7.5 × 45 mm	Interior Dimensions	5 × 5 × 43.75 mm
Closure	Open Top (No Cap)	Package	1pc/ea

Spectroscopy Applications

◆ UV-Vis Absorbance Spectroscopy — quantitative concentration, kinetics, Beer–Lambert studies

◆ Fluorescence Spectroscopy — 90° excitation/emission for fluorescent probes, dyes, and quantum dots

◆ DNA / RNA Quantification — nucleic-acid purity checks at 260/280 nm

◆ Protein Assays — Bradford, BCA, Lowry, and direct A280 measurements

◆ Enzyme Kinetics — real-time substrate conversion and inhibition studies

◆ Water Quality & Environmental — COD, nitrate, phosphate, heavy-metal colorimetric tests

◆ Pharmaceutical QC — dissolution testing, drug concentration, stability monitoring

◆ Chemical Reaction Monitoring — reaction progress tracking via absorbance changes

Why Four-Way Light?

Four-way light cuvettes have all four vertical faces polished to optical grade, enabling both standard absorbance measurements and 90° fluorescence detection geometry. The excitation beam enters through one face while emission is collected at right angles through an adjacent face — the standard configuration required by fluorimeters and spectrofluorometers.

Why Open Top?

This cuvette features an open-top design without a cap or cover, providing unrestricted access to the sample chamber for easy filling, mixing, and cleaning. The open design is ideal for workflows requiring frequent sample changes, titration experiments, or when using dip probes and fiber-optic accessories that need direct access to the liquid surface.

Why Sintered 83?

Sintered 83 uses high-temperature sintering to fuse quartz panels without adhesive, delivering >83% UV transmittance from 200–2500 nm. The sintered joints are chemically inert and compatible with strong acids, bases, and most organic solvents (excluding HF and aggressive organics such as toluene and acetone). This fabrication is ideal for analytical workflows involving harsh chemical matrices where standard glued cells would degrade.

Usage Tips

Rinse with a compatible solvent (e.g., ethanol or the measurement solvent) before first use to remove any residual particles.
Do not use abrasive materials or brushes on the polished optical faces — wipe gently with lens tissue.
Compatible with strong acids, bases, and most organic solvents (excluding HF and aggressive organics such as toluene and acetone).
Store in the original protective case to prevent scratches on the optical windows.
For baseline correction, fill with your reference solvent, and run a blank before sample measurements.

Custom Orders
Need a non-standard path length, volume, window configuration, or closure type? We manufacture quartz cuvettes to your exact specifications. Request a custom quote.

Disclaimer: Specifications are nominal values measured under standard laboratory conditions. Actual transmittance may vary slightly with wavelength and sample conditions. Images are representative; minor cosmetic variations between production batches are normal and do not affect optical performance.
