(C022WS1) Quartz Ultra-Micro Cuvette, 2 mm Path, 28 µL

Weight	30 g

SKU: C022WS1

Original price was: $204.00.Current price is: $184.00.

In Stock

C022WS1 is a JGS1 quartz ultra-micro cuvette for UV/Vis spectroscopy, with a 2 mm optical path, 28 µL nominal capacity and Two-Way Light transmission. Its open-top body allows direct filling from above, and the listed body size is 4.5 × 12.5 × 35 mm. Supplied as 1 cuvette per listed price unit.

In Stock

SKU: C022WS1 Categories: Cuvettes, Products, Quartz Custom Cuvettes Brand: MachinedQuartz

Shipping and order support

Worldwide delivery to door service, hassle free shipping
Contact us for quotation of bulk purchase discount
Custom design. Send us graphic drawing for solution
POs for Academics. Pay after delivery.
Availability and dispatch timing vary by item and quantity. Contact us to confirm timing for your order.

Description

C022WS1 is a JGS1 quartz ultra-micro cuvette for UV/Vis work where a short 2 mm optical path and a very small sample volume are part of the method. This open-top cell combines a 28 µL nominal capacity with a compact body and a straightforward Two-Way Light layout, making it suitable for direct pipette loading in a small transmission cell.

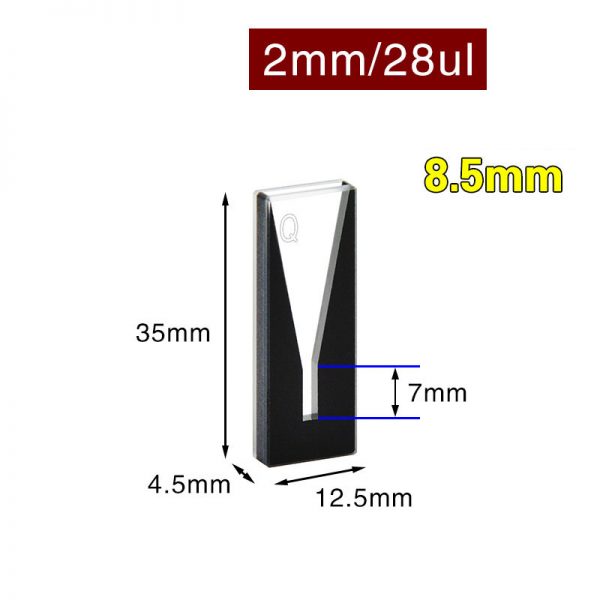

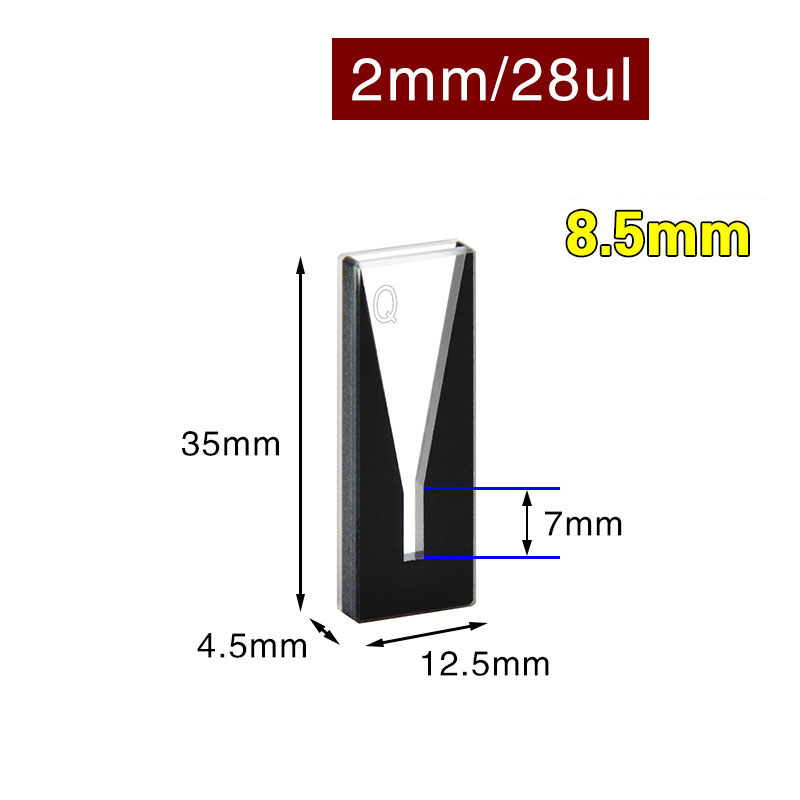

The body dimensions are 4.5 × 12.5 × 35 mm, which helps when checking holder clearance in compact accessories or tight compartments. It is specified for UV/Vis spectroscopy over 200–2500 nm.

Path Length: 2 mm
Sample Volume (Nominal): 28 µL
Opening Configuration: Open Top

Selection Specifications

Product Kind	Cuvette
Cell Type	Ultra-Micro Cuvette
Measurement Mode	UV/Vis Spectroscopy
Pack Quantity	1 Piece
Path Length	2 mm
Light Transmission Configuration	Two-Way Light
Optical Window Dimensions	2 × 7 mm
Wavelength Range — Lower Limit	200 nm
Wavelength Range — Upper Limit	2500 nm
Sample Volume (Nominal)	28 µL
External Dimensions	4.5 × 12.5 × 35 mm
Cell Body Dimensions	4.5 × 12.5 × 35 mm
External Dimensions Scope	Body Only
Material	Quartz
Material Grade	JGS1
Fabrication Method	Standard 80
Opening Configuration	Open Top
Detection Channel Width	2 mm

Choose this option

Choose C022WS1 when your method needs a 2 mm path in a compact quartz cell and you want direct top access for careful filling and rinsing. This format suits short-path UV/Vis measurements with a small nominal sample volume, while the body-only dimensions provide a practical starting point for checking whether the cell can physically fit your holder.

What makes this option different

2 mm optical path for short-path UV/Vis transmission measurements.
28 µL nominal capacity in an ultra-micro format for small-sample handling.
Open-top chamber for direct pipetting, visual access and rinsing from above.
Two-Way Light layout for standard transmission geometry rather than side optical access.
4.5 × 12.5 × 35 mm body-only dimensions for holder clearance checks.
Standard 80 adhesive-bonded quartz construction for routine room-temperature water-based samples and buffers.

Using this cell

Fill from the top with a fine pipette tip and make sure the illuminated region is fully covered before measurement. Because the nominal capacity is only 28 µL, bubbles, uneven filling and droplets on the optical faces can affect the result more quickly than in a larger cell.

Use a consistent loading approach for blanks and samples, and keep the cell orientation consistent between runs. The 28 µL value is a nominal capacity, not a minimum working volume.

First-use check

Inspect the optical faces and top opening for dust or residue.
Rinse with a suitable water-based cleaning liquid used in your method.
Seat the cuvette in the holder and confirm that the beam passes through the intended sample region.
Run a blank before routine measurements.

Fit and optical alignment

The listed 4.5 × 12.5 × 35 mm dimensions apply to the body only. Use them to check holder slot width, side clearance and insertion space, especially where clamps or guides sit close to the cell body.

A source-verified Z Height is not established for this item. That means body size alone does not confirm beam alignment in a specific instrument, so beam position should be checked in setups that depend on a fixed beam centre.

Solvents and cleaning

This cuvette uses Standard 80 adhesive-bonded construction. For this fabrication, routine room-temperature water-based samples and buffers are the practical selection direction.

Avoid organic samples and organic cleaning solvents with this adhesive-bonded assembly. Do not use hydrofluoric acid on quartz. Avoid hot strong alkalis and abrasive cleaning, and wipe the outer optical faces gently with non-abrasive optical tissue.

Included with this option

Supplied as 1 cuvette. A closure is not established as part of this selected option, so do not assume a cap or stopper is included unless the current listing states it separately.

Availability and ordering

Order this specification directly, or contact us to check current availability and dispatch timing. If temporarily unavailable, additional preparation or production time may be needed. For a required delivery date, contact us before checkout; preparation or production is separate from carrier transit and customs clearance.

Discuss a custom version

We coordinate custom JGS1 quartz production for related requirements involving dimensions, path length, sample volume, optical windows, closures and fabrication needs. Send a dimensioned drawing or labelled sketch, together with holder details, wavelength range, sample conditions and required quantity. Discuss your project at Discuss your requirements and quote part number C022WS1.
