(C0.52WS) Quartz Rectangular Sample Cell, 0.5 mm / 2 mm (dual path) Path

Weight	30 g

SKU: C0.52WS

Original price was: $188.00.Current price is: $170.00.

In Stock

C0.52WS is a JGS1 quartz rectangular sample cell body for UV/Vis work, with two specified path regions of 0.5 mm and 2 mm in one open-ended design. It is intended for use in a fixture or assembled setup rather than as a closed, ready-to-fill cuvette. Supplied as 1 cell body.

In Stock

SKU: C0.52WS Categories: Cuvettes, Products, Quartz Custom Cuvettes Brand: MachinedQuartz

Shipping and order support

Worldwide delivery to door service, hassle free shipping
Contact us for quotation of bulk purchase discount
Custom design. Send us graphic drawing for solution
POs for Academics. Pay after delivery.
Availability and dispatch timing vary by item and quantity. Contact us to confirm timing for your order.

Description

C0.52WS is a JGS1 quartz rectangular sample cell body for UV/Vis spectroscopy, combining two specified path regions of 0.5 mm and 2 mm in one component. Its open-at-both-ends format suits assemblies that use a defined fixture, seal or holder rather than a closed stand-alone cuvette. This sale option supplies 1 cell body per listed price unit.

Path Length: 0.5 mm / 2 mm (dual path)
Cell Type: Rectangular Sample Cell
Opening Configuration: Open at Both Ends

Selection Specifications

Product Kind	Cuvette
Cell Type	Rectangular Sample Cell
Measurement Mode	UV/Vis Spectroscopy
Pack Quantity	1 Piece
Path Length	0.5 mm / 2 mm (dual path)
Wavelength Range — Lower Limit	200 nm
Wavelength Range — Upper Limit	2500 nm
External Dimensions	35 × 5 × 42 mm
Cell Body Dimensions	35 × 5 × 42 mm
External Dimensions Scope	Body Only
Material	Quartz
Material Grade	JGS1
Closure Type	Open at Both Ends
Fabrication Method	Standard 80
Opening Configuration	Open at Both Ends

Choose this option

Choose this cell when your setup is built around this specific dual-path geometry and you already know how the body will be mounted, sealed and aligned in the full assembly. The two stated path regions are useful when your optical arrangement needs these two defined thicknesses in one quartz body. This option is best suited to custom fixtures, integrated mounts or instrument-specific assemblies, not general drop-in cuvette positions.

What makes this option different

Two specified path regions: 0.5 mm and 2 mm in the same body.
Open at both ends for use as a cell body within a fixture or assembled system.
JGS1 quartz specified for UV/Vis spectroscopy over 200–2500 nm.
Body dimensions of 35 × 5 × 42 mm for planning installation space around the bare cell body.
Standard 80 adhesive-bonded construction for room-temperature water-based sample and buffer use.

Using this cell

This is an open-ended cell body, so install it in the intended fixture or assembly before use. It is not presented as a ready-to-run sealed cuvette, and no supplied closure, holder or sealing parts are established for this option.

Because the body is open at both ends, the complete wetted path depends on your own fixture, seals and assembly method. If your method depends on leak control, a defined assembled envelope or a specific fluid route, those details need to be resolved in the surrounding hardware rather than assumed from the cell body alone.

First-use check

Inspect the optical faces and open ends for chips, dust or residue.
Dry-fit the body in your holder or fixture before wet assembly.
Run a blank with the full assembled setup to confirm beam alignment through the intended path region.
Check for trapped bubbles or liquid at the optical area before measuring sample.

Fit and optical alignment

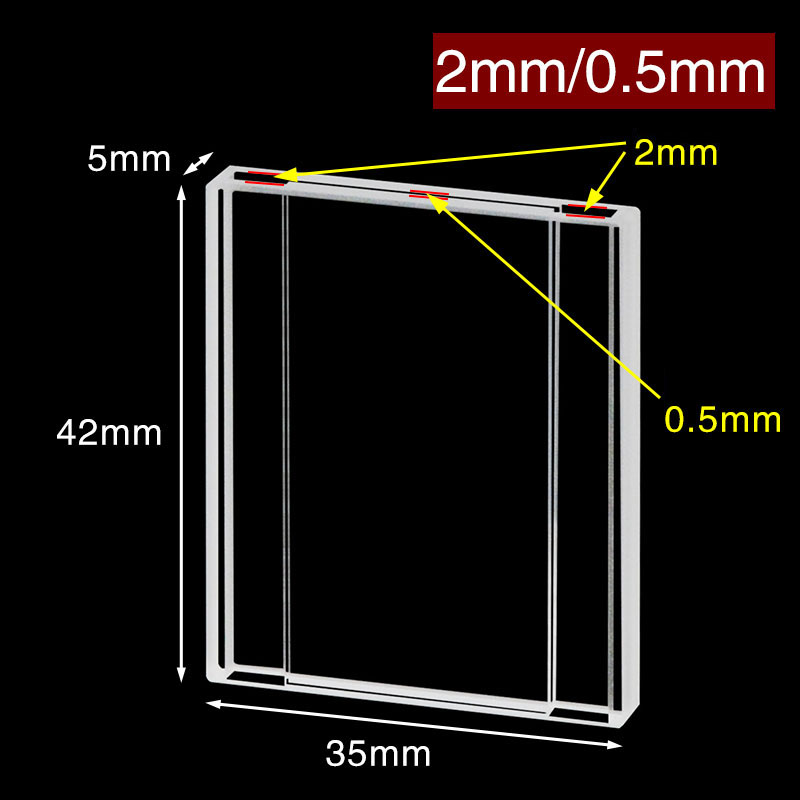

The stated dimensions are for the body only: 35 × 5 × 42 mm. They do not describe the final envelope after installation, because the mating fixture and sealing arrangement are not part of this sale item.

Z Height is not stated for this SKU. The 0.5 mm and 2 mm values refer to different path regions in the body, not to an adjustable single path. Check beam position and holder alignment against your own assembly drawing before ordering.

Solvents and cleaning

This SKU uses Standard 80 adhesive-bonded construction. For this fabrication type, room-temperature water-based samples and buffers are the safer routine use. Avoid organic sample solvents and organic cleaning agents unless you have separately verified suitability for the complete wetted assembly.

Do not use hydrofluoric acid on quartz. Avoid hot strong alkalis and abrasive cleaning, and clean the optical faces gently with non-abrasive optical tissue.

Included with this option

One order supplies 1 rectangular sample cell body. No closure, holder or other assembly parts are established for this option.

Availability and ordering

Order this specification directly, or contact us to check current availability and dispatch timing. If temporarily unavailable, additional preparation or production time may be needed. For a required delivery date, contact us before checkout; preparation or production is separate from carrier transit and customs clearance.

Discuss a custom version

We coordinate custom JGS1 quartz projects for requirements involving dimensions, optical path length, sample volume, optical windows or Z Height, closures, interfaces and tolerances. Send a dimensioned drawing or labelled sketch, together with your fixture details and sample conditions, through our contact page and refer to part number C0.52WS.
