(C022WS) Quartz Large-Window Cuvette, 2 mm Path, 500 µL

Weight	30 g

SKU: C022WS

Original price was: $80.00.Current price is: $72.00.

In Stock

C022WS is a JGS1 quartz large-window cuvette with a 2 mm optical path, 500 µL nominal capacity and an open-top sample chamber. Its Two-Way Light layout keeps a straightforward opposing-face transmission path in a 12.5 × 12.5 mm body. Sold as 1 cuvette per price unit.

In Stock

SKU: C022WS Categories: Cuvettes, Products, Quartz Custom Cuvettes Brand: MachinedQuartz

Shipping and order support

Worldwide delivery to door service, hassle free shipping
Contact us for quotation of bulk purchase discount
Custom design. Send us graphic drawing for solution
POs for Academics. Pay after delivery.
Availability and dispatch timing vary by item and quantity. Contact us to confirm timing for your order.

Description

C022WS is a short-path quartz cuvette for UV/Vis work when you want a 2 mm transmission distance without moving to an ultra-small special body. Its 500 µL nominal capacity and open-top chamber support direct filling from above, while the square 12.5 × 12.5 mm body suits setups built around a standard-style rectangular cuvette footprint.

Path Length: 2 mm
Sample Volume (Nominal): 500 µL
Opening Configuration: Open Top

Selection Specifications

Product Kind	Cuvette
Cell Type	Large-Window Cuvette
Measurement Mode	UV/Vis Spectroscopy
Pack Quantity	1 Piece
Path Length	2 mm
Light Transmission Configuration	Two-Way Light
Wavelength Range — Lower Limit	200 nm
Wavelength Range — Upper Limit	2500 nm
Sample Volume (Nominal)	500 µL
External Dimensions	12.5 × 12.5 × 45 mm
Cell Body Dimensions	12.5 × 12.5 × 45 mm
External Dimensions Scope	Body Only
Internal Dimensions	2 × 8 × 41 mm
Material	Quartz
Material Grade	JGS1
Fabrication Method	Standard 80
Opening Configuration	Open Top

Choose this option

Choose C022WS when your method needs a 2 mm optical path in a rigid large-window quartz body. This format is useful if you want a shorter path length but still prefer a full-height rectangular cuvette that is easy to pipette, rinse and place in a holder.

What makes this option different

2 mm optical path for methods set up around a shorter straight-through transmission distance.
500 µL nominal capacity in a full cuvette-style body rather than a very small specialty format.
Open-top chamber for direct pipetting, rinsing and visual checking during filling.

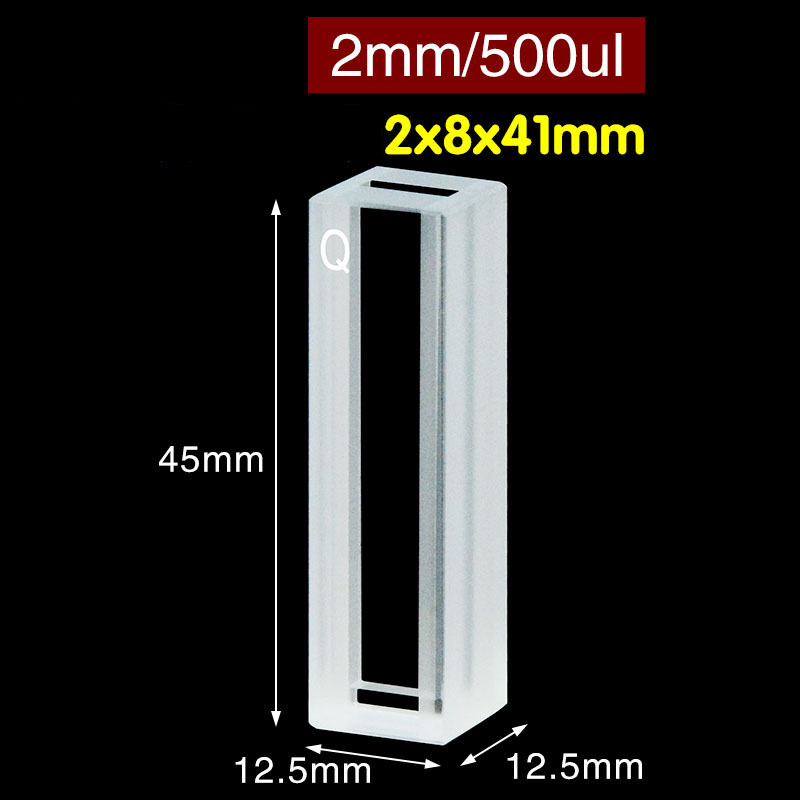

12.5 × 12.5 × 45 mm body with 2 × 8 × 41 mm internal dimensions that separates holder fit from sample-region geometry.

Using this cell

Fill the cell from the top and orient the two optical faces in the instrument beam path. For routine absorbance measurements, make sure the liquid covers the beam area and remove bubbles or residue before reading.

The 500 µL value is the nominal cell volume, not a stated minimum working volume. If your method depends on very low fill volumes or a precise beam height, check that condition in your own setup before routine use.

First-use check

Inspect the optical faces for dust, residue or fingerprints.
Rinse the chamber with a suitable liquid for your method.
Place the cell in the correct transmission orientation and run a blank before loading samples.

Fit and optical alignment

The body dimensions are 12.5 × 12.5 × 45 mm, which helps when you are checking holder clearance and insertion space. The internal sample region is narrower, at 2 × 8 × 41 mm, so the outside fit and the inside liquid geometry should be considered separately.

Z Height is not specified for this item. If your instrument, holder or accessory requires a defined beam-center height, confirm that fit before ordering rather than relying on overall body height alone.

Solvents and cleaning

Standard 80 is the MQ fabrication term for adhesive-bonded quartz cells that are typically chosen for routine water-based samples and buffers at room temperature. For this cell, that makes it a practical choice for ordinary aqueous UV/Vis work with direct top filling and rinsing.

Avoid organic sample solvents and organic cleaning agents with this adhesive-bonded construction. Do not use hydrofluoric acid on quartz. Avoid hot strong alkalis and abrasive cleaning, and wipe the optical faces gently with non-abrasive optical tissue.

Included with this option

Supplied as 1 cuvette. A closure or other accessories are not confirmed as included with this option.

Availability and ordering

Order this specification directly, or contact us to check current availability and dispatch timing. If temporarily unavailable, additional preparation or production time may be needed. For a required delivery date, contact us before checkout; preparation or production is separate from carrier transit and customs clearance.

Discuss a custom version

We coordinate custom JGS1 quartz production for requirements involving dimensions, optical path length, sample volume, optical windows or Z Height, closures and connections, fabrication and tolerances. Send a dimensioned drawing or labelled sketch and identify the dimensions and tolerances that are critical to your application. Prototype batches typically involve 2–4 cells; final feasibility, quantity, price and production time are confirmed in the quotation. Discuss your requirements.
