Quartz 1mm Ultra-Micro Cuvette, 10ul, Standard 80, Two-way Light, No Cap, 1pc/ea, C012CS5

Weight	30 g

SKU: C012CS5

C012CS5 Quartz 1mm Two-Way Light Ultra-Micro Cuvette 10ul Standard 80

Original price was: $190.00.Current price is: $171.00.

In Stock

Quartz 1mm ultra-micro cuvette, 10ul, Standard 80 (>80% transmittance). Two-Way Light. Open Top (No Cap). 190–2500 nm. SKU: C012CS5.

In Stock

SKU: C012CS5 Categories: Cuvettes, Products, Quartz Custom Cuvettes Brand: MachinedQuartz

Worldwide Timed Dispatch Available

Worldwide delivery to door service, hassle free shipping
Contact us for quotation of bulk purchase discount
Custom design. Send us graphic drawing for solution
POs for Academics. Pay after delivery.
Standard cuvettes ship in 3-5 days. Custom items 1-2 weeks.

Description

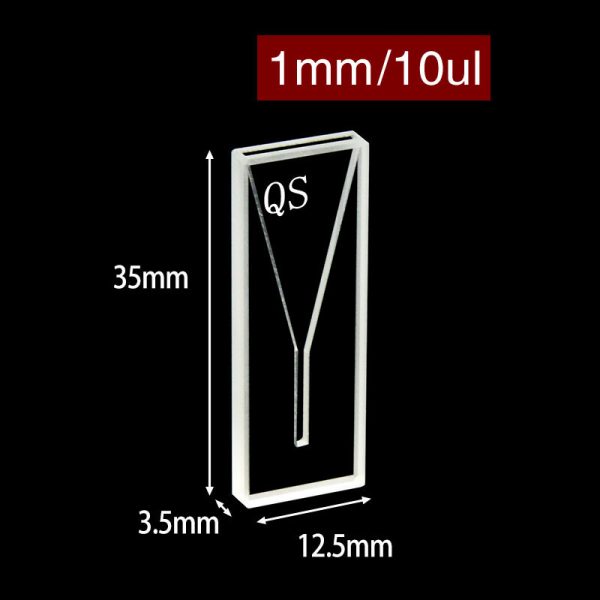

The C012CS5 is a quartz ultra-micro cuvette with 1mm path length and two-way light optical configuration — two opposite vertical faces are polished to optical grade, forming the standard transmission geometry for UV-Vis absorbance measurements. With a 10ul internal volume (10 × 1 × 33 mm chamber), the cell is compatible with most commercial spectrophotometers. Fabricated using Standard 80 (>80% transmittance) — precision-glued quartz construction, an industry-proven assembly method. The Z dimension (beam center height) is 10mm from the cell bottom — verify compatibility with your instrument’s beam height before ordering. Features a clear-body ultra-micro cuvette with a visible V-shaped internal funnel structure that concentrates 10ul samples into the precision 1mm path. The ‘QS’ quality marking and transparent walls allow easy visual inspection of sample filling.

Technical Specifications — Ultra-Micro Cuvette
Material	Quartz	SKU	C012CS5
Path Length	1mm	Internal Volume	10ul
Optical Windows	2 (Two-Way Light)	Fabrication	Standard 80
Transmittance	>80%	Wavelength	190–2500 nm
Exterior Dimensions	12.5 × 3.5 × 35 mm	Interior Dimensions	10 × 1 × 33 mm
Z Dimension	10mm
Closure	Open Top (No Cap)	Package	1pc/ea

Spectroscopy Applications

◆ UV-Vis Absorbance Spectroscopy — quantitative concentration, kinetics, Beer–Lambert studies

◆ DNA / RNA Quantification — nucleic-acid purity checks at 260/280 nm

◆ Protein Assays — Bradford, BCA, Lowry, and direct A280 measurements

◆ Enzyme Kinetics — real-time substrate conversion and inhibition studies

◆ Water Quality & Environmental — COD, nitrate, phosphate, heavy-metal colorimetric tests

◆ Pharmaceutical QC — dissolution testing, drug concentration, stability monitoring

◆ Chemical Reaction Monitoring — reaction progress tracking via absorbance changes

◆ Teaching & Student Labs — durable quartz cells for undergraduate spectroscopy courses

Why Two-Way Light?

Two-way light cuvettes have two opposite vertical faces polished to optical grade, forming the standard transmission geometry for UV-Vis absorbance measurements. The remaining two faces are frosted to minimize stray-light interference, providing clean baseline performance for quantitative spectrophotometry.

Why Open Top?

This cuvette features an open-top design without a cap or cover, providing unrestricted access to the sample chamber for easy filling, mixing, and cleaning. The open design is ideal for workflows requiring frequent sample changes, titration experiments, or when using dip probes and fiber-optic accessories that need direct access to the liquid surface.

Why Standard 80?

Standard 80 uses precision-glued quartz construction — an industry-proven assembly method delivering >80% UV transmittance from 200–2500 nm. The optical adhesive bond is optimized for aqueous (water-based) solutions, making this fabrication ideal for routine spectrophotometry, QC testing, and educational labs where the sample matrix is known and gentle. Standard 80 offers a cost-effective entry point with reliable, repeatable results under normal operating conditions.

Usage Tips

Rinse with a compatible solvent (e.g., ethanol or the measurement solvent) before first use to remove any residual particles.
Do not use abrasive materials or brushes on the polished optical faces — wipe gently with lens tissue.
Suitable for aqueous (water-based) solutions only. Do not use with organic solvents, strong acids, or strong bases.
Store in the original protective case to prevent scratches on the optical windows.
For baseline correction, fill with your reference solvent, and run a blank before sample measurements.

Custom Orders
Need a non-standard path length, volume, window configuration, or closure type? We manufacture quartz cuvettes to your exact specifications. Request a custom quote.

Disclaimer: Specifications are nominal values measured under standard laboratory conditions. Actual transmittance may vary slightly with wavelength and sample conditions. Images are representative; minor cosmetic variations between production batches are normal and do not affect optical performance.
