(C016SS) Quartz Fluorescence Cuvette, 1 mm / 50 mm (dual path) Path, 2 mL

Weight	30 g

SKU: C016SS

Original price was: $466.00.Current price is: $420.00.

In Stock

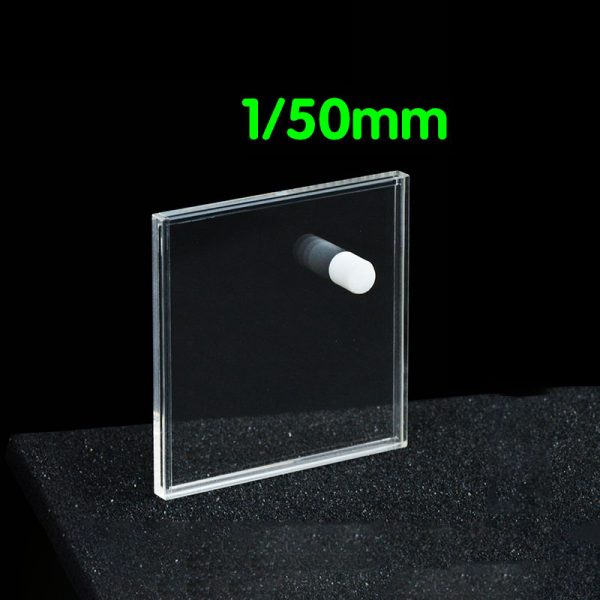

C016SS is a JGS1 quartz fluorescence cuvette with stated 1 mm and 50 mm optical paths in a Six-Way Light configuration. Its flat body format and 2 mL nominal capacity suit setups that need broad optical access around the sample region. Sold as 1 cuvette per listed price unit.

In Stock

SKU: C016SS Categories: Cuvettes, Products, Quartz Custom Cuvettes Brand: MachinedQuartz

Shipping and order support

Worldwide delivery to door service, hassle free shipping
Contact us for quotation of bulk purchase discount
Custom design. Send us graphic drawing for solution
POs for Academics. Pay after delivery.
Availability and dispatch timing vary by item and quantity. Contact us to confirm timing for your order.

Description

C016SS is a JGS1 quartz fluorescence cuvette with stated 1 mm and 50 mm optical paths, Six-Way Light geometry and 2 mL nominal capacity. This is a flat, panel-style cell rather than a conventional square cuvette body, so it is useful when your method depends on this specific dual-path arrangement and broad optical access around the sample area. The listed wavelength range is 200–2500 nm.

Path Length: 1 mm / 50 mm (dual path)
Sample Volume (Nominal): 2 mL
Closure Type: Stopper

Selection Specifications

Product Kind	Cuvette
Cell Type	Fluorescence Cuvette
Measurement Mode	Fluorescence Spectroscopy
Path Length	1 mm / 50 mm (dual path)
Light Transmission Configuration	Six-Way Light
Wavelength Range — Lower Limit	200 nm
Wavelength Range — Upper Limit	2500 nm
Sample Volume (Nominal)	2 mL
External Dimensions	53 × 53 × 4 mm
Cell Body Dimensions	53 × 53 × 4 mm
External Dimensions Scope	Body Only
Internal Dimensions	50 × 50 × 1 mm
Material	Quartz
Material Grade	JGS1
Closure Type	Stopper
Fabrication Method	Standard 80

Choose this option

Choose C016SS when your method is written around the stated 1 mm / 50 mm dual-path layout and a six-direction optical access format. The 50 × 50 × 1 mm internal geometry and 53 × 53 × 4 mm body dimensions make this a specialised cell that should be selected as a geometry-based part, not as a substitute for a standard square fluorescence cuvette. It is sold as 1 cuvette per listed price unit.

What makes this option different

Dual stated optical paths of 1 mm and 50 mm for methods built around this specific path arrangement.
Six-Way Light configuration for optical access from multiple directions around the sample region.
Flat 53 × 53 × 4 mm body format instead of a standard narrow square cuvette body.
2 mL nominal capacity with 50 × 50 × 1 mm internal dimensions for planning fill and optical coverage together.

Using this cell

Fill the sample chamber so the intended illuminated region is fully covered and free from bubbles or residue. If your method depends on one particular beam direction through the dual-path layout, keep the orientation consistent between blank and sample measurements.

This cell is best treated as a fixed-geometry optical part. Before routine use, confirm how your excitation and collection paths approach the sample region and whether any top projection or user-added closure detail affects access in your setup.

First-use check

Inspect the optical faces for chips, scratches or handling residue.
Rinse with a cleaning liquid suitable for the full wetted assembly and your method.
Run a blank and verify that the illuminated region is fully covered in the installed position.
Check that the cell seats securely without forcing the body or any projecting top detail.

Fit and optical alignment

The stated 53 × 53 × 4 mm dimensions apply to the body only. They do not define the full assembled envelope if any closure or fitting projects beyond the body, so enclosed holders should be checked for clearance above and around the installed cell.

Z Height is not stated for this SKU. If your instrument or fixture depends on a fixed beam-center height, check that directly against your holder requirements before ordering. Six-Way Light describes the optical access category, but it does not by itself prove fit in a specific fluorimeter or accessory.

Solvents and cleaning

This cell uses adhesive-bonded construction and is listed in the MQ Standard 80 category. That selection is generally used for routine room-temperature, water-based sample work.

Avoid organic samples and organic cleaning solvents with this adhesive-bonded cell. Do not use hydrofluoric acid on quartz. Avoid hot strong alkalis and abrasive cleaning methods. If your process involves more aggressive chemicals, check suitability for the exact full assembly before use.

Included with this option

Price is for 1 cuvette per MQ sale.

Availability and ordering

Order this specification directly, or contact us to check current availability and dispatch timing. If temporarily unavailable, additional preparation or production time may be needed. For a required delivery date, contact us before checkout; preparation or production is separate from carrier transit and customs clearance.

Discuss a custom version

We coordinate custom JGS1 quartz production for changes to dimensions, optical path length, sample volume, optical windows or Z Height, closures, connections, fabrication and tolerances. If you need a modified version, send a dimensioned drawing or labelled sketch through the contact page and reference C016SS.

Design notes for this configuration: 1 / 50 mm Dual-Path Quartz Cuvette: Two Views of the Same Sample
