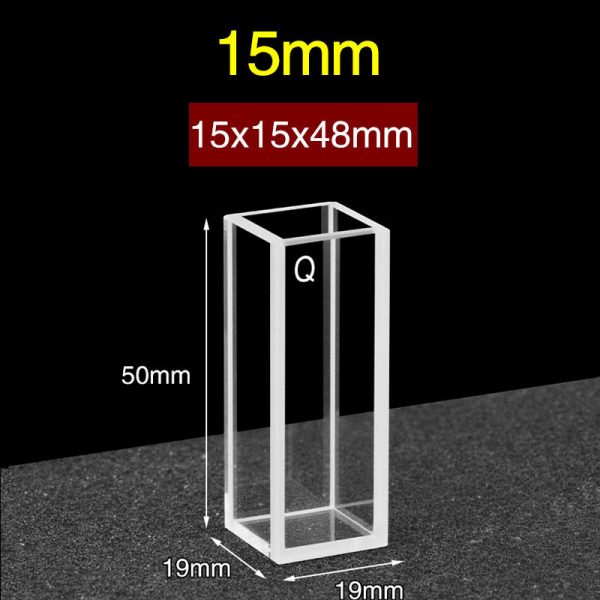

(C155CR) Quartz Fluorescence Cuvette, 15 mm Path, 8.6 mL

Weight	100 g

SKU: C155CR

Original price was: $204.00.Current price is: $184.00.

In Stock

C155CR is a JGS1 quartz fluorescence cuvette with a 15 mm optical path, Five-Way Light access and an open-top chamber for direct filling. Its 15 × 15 × 48 mm internal chamber and 8.6 mL nominal volume suit methods that use a larger square sample region rather than a narrow micro-style cell. Sold as 1 cuvette per listed price unit.

In Stock

SKU: C155CR Categories: Cuvettes, Products, Quartz Custom Cuvettes Brand: MachinedQuartz

Shipping and order support

Worldwide delivery to door service, hassle free shipping
Contact us for quotation of bulk purchase discount
Custom design. Send us graphic drawing for solution
POs for Academics. Pay after delivery.
Availability and dispatch timing vary by item and quantity. Contact us to confirm timing for your order.

Description

C155CR is a JGS1 quartz fluorescence cuvette for methods built around a 15 mm optical path and direct top access to the sample chamber. It combines Five-Way Light access with a 15 × 15 × 48 mm internal chamber and 8.6 mL nominal volume, giving you a larger square sample region for filling, rinsing and repeat handling in the same cell.

Path Length: 15 mm
Sample Volume (Nominal): 8.6 mL
Opening Configuration: Open Top (Cell Body)

Selection Specifications

Product Kind	Cuvette
Cell Type	Fluorescence Cuvette
Measurement Mode	Fluorescence Spectroscopy
Path Length	15 mm
Light Transmission Configuration	Five-Way Light
Wavelength Range — Lower Limit	200 nm
Wavelength Range — Upper Limit	2500 nm
Sample Volume (Nominal)	8.6 mL
External Dimensions	19 × 19 × 50 mm
Uncapped Cell Dimensions	19 × 19 × 50 mm
External Dimensions Scope	Uncapped Cell
Body Height	50 mm
Internal Dimensions	15 × 15 × 48 mm
Material	Quartz
Material Grade	JGS1
Opening Configuration	Open Top (Cell Body)

Choose this option

Choose C155CR when your method calls for a 15 mm path and you want open top access rather than a closed or fitted closure arrangement. The larger square chamber gives more room for pipetting and visual inspection from above, while the Five-Way Light layout is useful when your fluorescence setup needs optical access beyond a simple opposing-face transmission path. The listed 8.6 mL is a nominal volume for this chamber, not a minimum working fill level.

What makes this option different

15 mm optical path suits methods specified around this nominal path length.
Five-Way Light configuration gives more optical access than a simpler two-face layout, which matters when your fixture or method uses side access in addition to the main beam direction.
Open-top cell body allows direct filling, rinsing and visual checking of the sample region from above.
15 × 15 × 48 mm internal chamber provides a larger square sample space instead of a narrow micro-volume cavity.
8.6 mL nominal volume describes the chamber’s stated capacity, not the minimum volume required for your measurement.
Powder-fused construction is the supplier’s construction term for this option, relevant when you want this joining style rather than an adhesive-bonded body.

Using this cell

Fill the cell from the open top and keep the optical faces in the beam area clean and free of bubbles, droplets and dried residue. The larger square opening makes routine pipetting, rinsing and visual inspection straightforward, especially when you need to look directly into the sample region during preparation.

Keep the cell orientation consistent between blank and sample measurements so the same optical faces are presented to the instrument each time. This listing does not establish a supplied closure, so treat it as an open cell unless your own setup uses a separate cover or fixture.

First-use check

Inspect the optical faces and top opening for chips, residue or handling marks.
Rinse with a cleaning liquid that suits your sample and method.
Fill with your blank and confirm a clear, bubble-free sample section in the beam area.
Check holder clearance against the 19 × 19 × 50 mm uncapped body before routine use.

Fit and optical alignment

The uncapped cell body measures 19 × 19 × 50 mm. Use those body dimensions to check holder and compartment clearance for the cell itself.

Five-Way Light identifies the optical access layout of this cuvette, which can matter for holder design and beam approach in fluorescence work. It does not by itself establish a specific bottom-window position, polished-window count or fit to a particular instrument. Z Height is not available for this option, so if your holder depends on a defined beam-center height, that point should be checked before ordering.

Solvents and cleaning

This JGS1 quartz cell is listed for use across 200–2500 nm in supported applications for this type. The supplier’s construction term for this option is powder-fused, which is useful to note if your selection process distinguishes joining style. For general guidance on cuvette construction approaches, see Compare fabrication options.

Do not use hydrofluoric acid on quartz. Avoid hot strong alkalis and abrasive cleaning. Clean the optical faces gently with non-abrasive optical tissue, and select cleaning liquids according to your sample chemistry and operating conditions.

Included with this option

1 cuvette per listed price unit. If you need a supplied closure or other accessory, contact us before ordering.

Availability and ordering

Order this specification directly, or contact us to check current availability and dispatch timing. If temporarily unavailable, additional preparation or production time may be needed. For a required delivery date, contact us before checkout; preparation or production is separate from carrier transit and customs clearance.

Discuss a custom version

We coordinate custom JGS1 quartz versions for changes to dimensions, optical path length, sample volume, optical layout, closures or tolerance requirements. Send a dimensioned drawing or labelled sketch together with holder details, sample conditions and target quantity. Discuss your requirements and mention part number C155CR.
