(C505CR) Quartz Fluorescence Cuvette, 50 mm Path, 46 mL

Weight100 g
SKU: C505CR

Original price was: $270.00.Current price is: $243.00.

In Stock

C505CR is a JGS1 quartz fluorescence cuvette with a 50 mm optical path, Five-Way Light access and an open-top cell body for direct filling. Its 46 mL nominal capacity suits larger static samples handled from above. Sold as 1 cuvette per price unit.

In Stock
Add to Wishlist
Add to Wishlist
SKU: C505CR Categories: , , Brand:
Shipping and order support
  • Worldwide delivery to door service, hassle free shipping
  • Contact us for quotation of bulk purchase discount
  • Custom design. Send us graphic drawing for solution
  • POs for Academics. Pay after delivery.
  • Availability and dispatch timing vary by item and quantity. Contact us to confirm timing for your order.

Description

C505CR is a JGS1 quartz fluorescence cuvette for larger static samples, combining a 50 mm optical path with Five-Way Light access and an open-top cell body. The open top makes filling, rinsing and visual sample checks straightforward during bench work, while the 46 mL nominal capacity supports methods that need a larger sample volume in a single cell. This option is sold as 1 cuvette per price unit.

Path Length
50 mm
Sample Volume (Nominal)
46 mL
Opening Configuration
Open Top (Cell Body)

Selection Specifications

Product KindCuvette
Cell TypeFluorescence Cuvette
Measurement ModeFluorescence Spectroscopy
Pack Quantity1 Piece
Path Length50 mm
Light Transmission ConfigurationFive-Way Light
Wavelength Range — Lower Limit200 nm
Wavelength Range — Upper Limit2500 nm
Sample Volume (Nominal)46 mL
External Dimensions54 × 54 × 25 mm
Uncapped Cell Dimensions54 × 54 × 25 mm
External Dimensions ScopeUncapped Cell
MaterialQuartz
Material GradeJGS1
Closure TypeOpen Top
Opening ConfigurationOpen Top (Cell Body)

Choose this option

Choose C505CR when your method uses a 50 mm path length and you want direct access to the sample from above rather than through a stopper, screw cap or narrow inlet. It is a practical choice for larger-volume fluorescence work where you need to load, inspect and rinse the sample chamber directly and keep the cell in a consistent orientation during repeated measurements.

What makes this option different

  • 50 mm optical path for methods built around a longer path length.
  • Five-Way Light configuration for fluorescence setups that use this optical access pattern.
  • Open-top cell body for direct filling, pipetting, rinsing and visual inspection.
  • 46 mL nominal capacity for larger static sample volumes.
  • JGS1 quartz construction for fluorescence use across the stated 200–2500 nm source range.
  • Supplier-described powder-fused construction rather than an unspecified generic build.

Using this cell

Fill the sample directly into the open chamber from above. During use, keep the optical faces clean and keep bubbles, splashes and dried residue out of the beam path.

For repeatable fluorescence work, keep the same cell orientation between blank and sample measurements, especially when your setup uses a defined excitation side and collection side. This is an open cell body for static measurements, not a sealed or pressure-rated assembly.

First-use check

Inspect the optical faces when the cell arrives and rinse the sample chamber with a solvent appropriate for your method before first use. Then run a blank and confirm that the intended light path is free from particles, droplets and trapped bubbles.

Fit and optical alignment

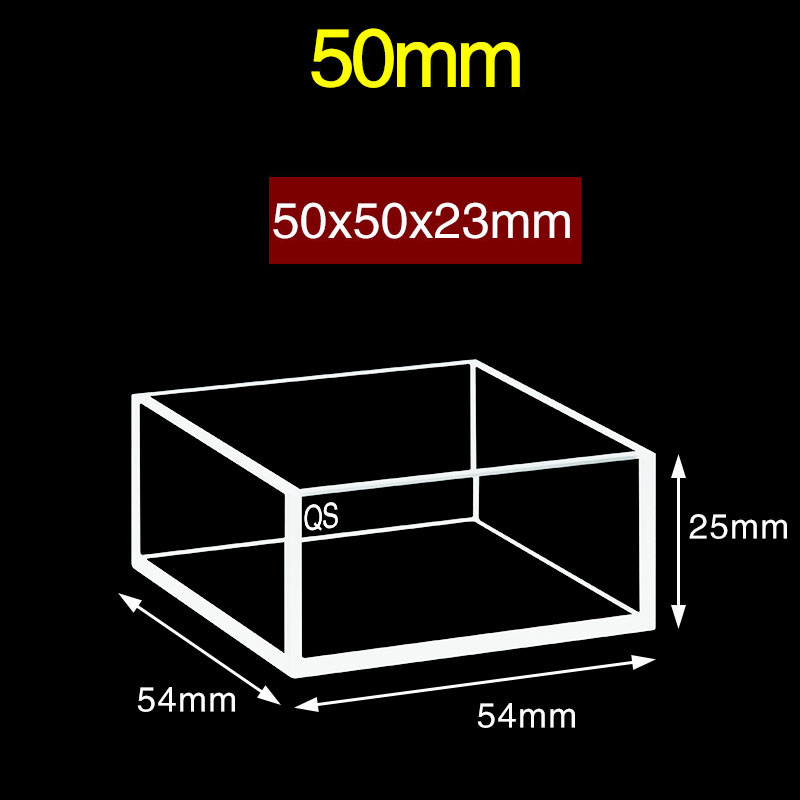

The listed outer size applies to the uncapped cell body: 54 × 54 × 25 mm. Check holder clearance around the square body and the space above the opening, since loading and cleaning are done from the top.

Five-Way Light identifies the supported optical access category, but holder fit still depends on your instrument geometry. Z Height is not listed for this option, so do not assume beam-center alignment from path length alone if your instrument requires a defined beam height.

Solvents and cleaning

This cuvette is made from JGS1 quartz, and the supplier describes the construction as powder-fused. For general fabrication background, see Compare fabrication methods.

Do not use hydrofluoric acid on quartz. Avoid hot strong alkalis and abrasive cleaning, and wipe the optical faces gently with non-abrasive optical tissue. Specific chemical limits for this exact configuration are not listed here, so aggressive solvent, concentration or temperature conditions should be checked before ordering.

Included with this option

One quartz fluorescence cuvette.

Availability and ordering

Order this specification directly, or contact us to check current availability and dispatch timing. If temporarily unavailable, additional preparation or production time may be needed. For a required delivery date, contact us before checkout; preparation or production is separate from carrier transit and customs clearance.

Discuss a custom version

We coordinate custom JGS1 quartz projects for changes to dimensions, optical path length, sample volume, optical windows or Z Height, closures and connections, and tolerance requirements. Send a dimensioned drawing or labelled sketch together with holder details, sample conditions and target quantity. Prototype batches typically involve 2–4 cells; final feasibility, price and production time are confirmed in the project quotation. Discuss your requirements and quote part number C505CR.
