(C504CR3) Quartz Fluorescence Cuvette, 50 mm Path, 46 mL

Weight	100 g

SKU: C504CR3

Original price was: $317.00.Current price is: $286.00.

In Stock

C504CR3 is a JGS1 quartz fluorescence cuvette with a 50 mm optical path, Four-Way Light access and an included lid. Its 46 mL nominal capacity and 50 × 50 × 23 mm internal chamber suit larger static samples that benefit from side-face optical access and a covered top. Sold as 1 cuvette per price unit.

In Stock

SKU: C504CR3 Categories: Cuvettes, Products, Quartz Custom Cuvettes Brand: MachinedQuartz

Shipping and order support

Worldwide delivery to door service, hassle free shipping
Contact us for quotation of bulk purchase discount
Custom design. Send us graphic drawing for solution
POs for Academics. Pay after delivery.
Availability and dispatch timing vary by item and quantity. Contact us to confirm timing for your order.

Description

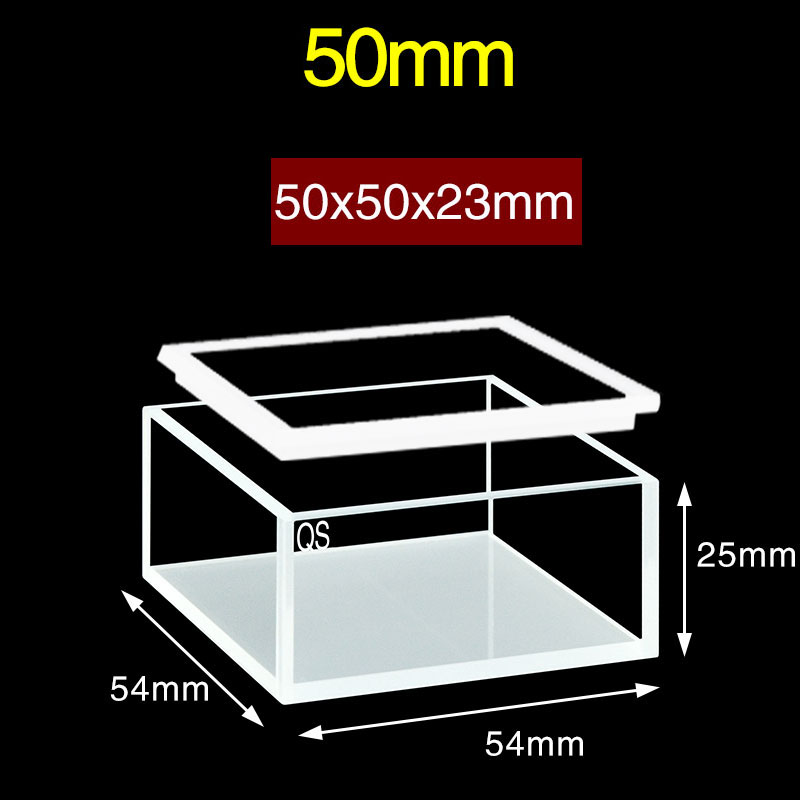

C504CR3 is a JGS1 quartz fluorescence cuvette with a 50 mm optical path, Four-Way Light access and a lidded sample chamber. The large 50 × 50 × 23 mm internal chamber and 46 mL nominal capacity make it suitable for larger static samples, while the lid provides chamber coverage during routine bench handling. The published 54 × 54 × 25 mm dimensions apply to the uncapped cell body.

Path Length: 50 mm
Sample Volume (Nominal): 46 mL
Closure Type: Lid

Selection Specifications

Product Kind	Cuvette
Cell Type	Fluorescence Cuvette
Measurement Mode	Fluorescence Spectroscopy
Path Length	50 mm
Light Transmission Configuration	Four-Way Light
Wavelength Range — Lower Limit	200 nm
Wavelength Range — Upper Limit	2500 nm
Sample Volume (Nominal)	46 mL
External Dimensions	54 × 54 × 25 mm
Uncapped Cell Dimensions	54 × 54 × 25 mm
External Dimensions Scope	Uncapped Cell
Body Height	25 mm
Internal Dimensions	50 × 50 × 23 mm
Material	Quartz
Material Grade	JGS1
Closure Type	Lid
Closure Included	Yes

Choose this option

Choose C504CR3 when you need a large fluorescence cell with side-face optical access and prefer a covered chamber rather than a fully open top during routine handling. This option suits bench-filled measurements where a broad chamber is useful, but you still want the sample area covered once loaded.

What makes this option different

50 mm optical path for methods set up around a longer path length.
Four-Way Light configuration with optical access through the side faces.
Included lid for covering the chamber after filling.
46 mL nominal capacity with a 50 × 50 × 23 mm internal chamber for larger static samples.

Using this cell

Fill the chamber from the top, then place the lid for routine handling and measurement setup. Keep the optical faces clean, and use a consistent orientation between blank and sample measurements so the same faces are presented to the optical system each time.

This is a static sample cell with a separate lid, not a sealed flow cell or pressure assembly. The nominal 46 mL value describes chamber capacity, not a minimum working volume, so partial-fill work should be checked against your own beam-height and sample-coverage needs.

First-use check

Inspect the optical faces and chamber for particles or residue before first use. Rinse with a solvent suitable for your method, run a blank, and make sure the intended optical path is clear of bubbles and droplets.

Fit and optical alignment

The uncapped body measures 54 × 54 × 25 mm. Check holder clearance for the square body and allow extra space above the cell for the lid, because the assembled height with lid in place is not listed here.

Z Height is not stated for this model. If your fluorimeter or holder depends on a defined beam-center height, confirm that requirement before ordering instead of assuming fit from the path length alone.

Solvents and cleaning

This cuvette is made from JGS1 quartz, and the supplier describes the construction as powder-fused. For general fabrication background, see Compare fabrication methods.

Do not use hydrofluoric acid on quartz. Avoid hot strong alkalis and abrasive cleaning, and wipe the optical faces gently with non-abrasive optical tissue. Specific chemical limits for this exact configuration are not listed here, so demanding solvent, concentration or temperature conditions should be checked before ordering.

Included with this option

One quartz fluorescence cuvette with lid.

Availability and ordering

Order this specification directly, or contact us to check current availability and dispatch timing. If temporarily unavailable, additional preparation or production time may be needed. For a required delivery date, contact us before checkout; preparation or production is separate from carrier transit and customs clearance.

Discuss a custom version

We coordinate custom JGS1 quartz projects for changes to dimensions, optical path length, sample volume, optical windows or Z Height, closures and connections, and tolerance requirements. Send a dimensioned drawing or labelled sketch together with holder details, sample conditions and target quantity. Prototype batches typically involve 2–4 cells; final feasibility, price and production time are confirmed in the project quotation. Discuss your requirements and quote part number C504CR3.
