(C504CR) Quartz Fluorescence Cuvette, 50 mm Path, 46 mL
Original price was: $270.00.$243.00Current price is: $243.00.
C504CR is a JGS1 quartz fluorescence cuvette with a 50 mm optical path, Four-Way Light access and a 46 mL nominal capacity. Its open-top body and broad 50 × 50 × 23 mm internal chamber suit larger static samples that are filled directly from above. Sold as 1 cuvette per price unit.
Description
C504CR is a large JGS1 quartz fluorescence cuvette for methods built around a 50 mm optical path and a broad sample chamber. The Four-Way Light layout gives optical access through the side faces, while the open top makes filling, rinsing and visual sample checks straightforward. With a 46 mL nominal capacity and a 50 × 50 × 23 mm internal chamber, it suits larger static samples that are handled directly on the bench.
- Path Length
- 50 mm
- Sample Volume (Nominal)
- 46 mL
- Opening Configuration
- Open Top (Cell Body)
Selection Specifications
| Product Kind | Cuvette |
|---|---|
| Cell Type | Fluorescence Cuvette |
| Measurement Mode | Fluorescence Spectroscopy |
| Path Length | 50 mm |
| Light Transmission Configuration | Four-Way Light |
| Wavelength Range — Lower Limit | 200 nm |
| Wavelength Range — Upper Limit | 2500 nm |
| Sample Volume (Nominal) | 46 mL |
| External Dimensions | 54 × 54 × 25 mm |
| Uncapped Cell Dimensions | 54 × 54 × 25 mm |
| External Dimensions Scope | Uncapped Cell |
| Body Height | 25 mm |
| Internal Dimensions | 50 × 50 × 23 mm |
| Material | Quartz |
| Material Grade | JGS1 |
| Opening Configuration | Open Top (Cell Body) |
Choose this option
Choose C504CR when you need a longer stated path length together with direct top access and a larger sample body than compact fluorescence cells provide. This format is useful when you want room for filling, rinsing or inspecting the sample from above, while keeping side-face optical access for fluorescence work.
What makes this option different
- 50 mm optical path for methods designed around a longer path length.
- Four-Way Light configuration with optical access through the side faces.
- Open-top cell body for direct filling, sample changes and chamber rinsing.
- 46 mL nominal capacity with a 50 × 50 × 23 mm internal chamber for larger static sample volumes.
Using this cell
Fill the sample directly through the top opening and keep the optical faces clean in the measurement area. Before a run, check for bubbles, droplets or residue in the beam path, and keep the same orientation between blank and sample measurements.
This is an open cell body for static sample handling rather than a sealed or pressure-rated assembly. The nominal 46 mL value describes chamber capacity, not a minimum working fill, so partial-fill methods should be checked against your own beam height and coverage requirements.
First-use check
Rinse the chamber with a solvent suitable for your method before first use, then inspect the optical faces under good light. Run a blank first and make sure the selected optical path is free of particles, bubbles and dried residue.
Fit and optical alignment

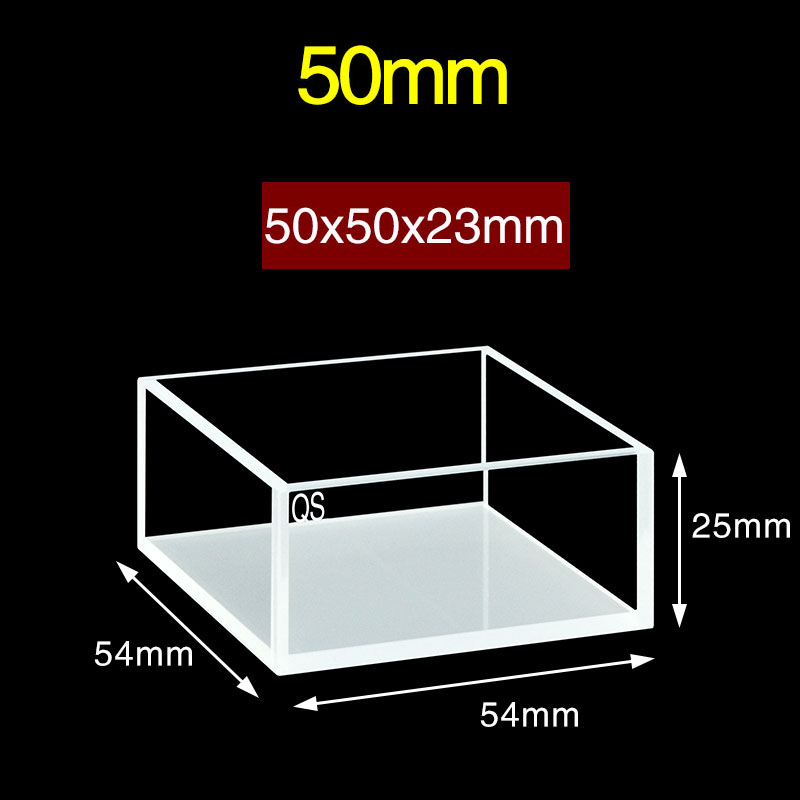

The stated outer size is 54 × 54 × 25 mm for the uncapped cell body, and the internal chamber is 50 × 50 × 23 mm. These dimensions are useful when checking holder clearance, top access and whether the chamber footprint suits your sample handling routine.
Z Height is not listed for this model. If your fluorimeter or holder depends on a defined beam-center height, confirm that point before ordering rather than relying on path length alone.
Solvents and cleaning
This cuvette is made from JGS1 quartz, and the supplier describes the construction as powder-fused. For general fabrication background, see Compare fabrication methods.
Do not use hydrofluoric acid on quartz. Avoid hot strong alkalis and abrasive cleaning, and wipe the optical faces gently with non-abrasive optical tissue. Specific chemical limits for this exact configuration are not listed here, so demanding solvent, concentration or temperature conditions should be checked before ordering.
Included with this option
1 cuvette per listed price unit. If you need a supplied closure or other accessory, contact us before ordering.
Availability and ordering
Order this specification directly, or contact us to check current availability and dispatch timing. If temporarily unavailable, additional preparation or production time may be needed. For a required delivery date, contact us before checkout; preparation or production is separate from carrier transit and customs clearance.
Discuss a custom version
We coordinate custom JGS1 quartz projects for changes to dimensions, optical path length, sample volume, optical windows or Z Height, closures and connections, and tolerance requirements. Send a dimensioned drawing or labelled sketch together with holder details, sample conditions and target quantity. Prototype batches typically involve 2–4 cells; final feasibility, price and production time are confirmed in the project quotation. Discuss your requirements and quote part number C504CR.
Additional information
| Weight | 100 g |
|---|
