Quartz 50mm Quartz Fluorescence Cuvette, 46ml, Sintered 83, Five-Way Light, Quartz Cover, 1pc/ea, C505CR1

Weight	100 g

SKU: C505CR1

C505CR1 Quartz 50mm Five-Way Light Quartz Fluorescence Cuvette 46ml Sintered 83

Original price was: $317.00.Current price is: $286.00.

In Stock

Quartz 50mm quartz fluorescence cuvette, 46ml, Sintered 83 (>83% transmittance). Five-Way Light. Quartz Cover. 190–2500 nm. SKU: C505CR1.

In Stock

SKU: C505CR1 Categories: Cuvettes, Products, Quartz Custom Cuvettes Brand: MachinedQuartz

Worldwide Timed Dispatch Available

Worldwide delivery to door service, hassle free shipping
Contact us for quotation of bulk purchase discount
Custom design. Send us graphic drawing for solution
POs for Academics. Pay after delivery.
Standard cuvettes ship in 3-5 days. Custom items 1-2 weeks.

Description

The C505CR1 is a quartz quartz fluorescence cuvette with 50mm path length and five-way light optical configuration — four vertical faces and the bottom face are polished to optical grade, enabling standard absorbance, 90° fluorescence, and downward/upward detection geometries. With a 46ml internal volume (50 × 50 × 23 mm chamber), the cell is compatible with most commercial spectrophotometers. Fabricated using Sintered 83 (>83% transmittance) — high-temperature sintered to fuse quartz panels without adhesive. Showcases the companion 50mm five-way cuvette with 46ml capacity, providing matched optical geometry for paired measurements in the maximum-path fluorescence format.

Technical Specifications — Quartz Fluorescence Cuvette
Material	Quartz	SKU	C505CR1
Path Length	50mm	Internal Volume	46ml
Optical Windows	5 (Five-Way Light)	Fabrication	Sintered 83
Transmittance	>83%	Wavelength	190–2500 nm

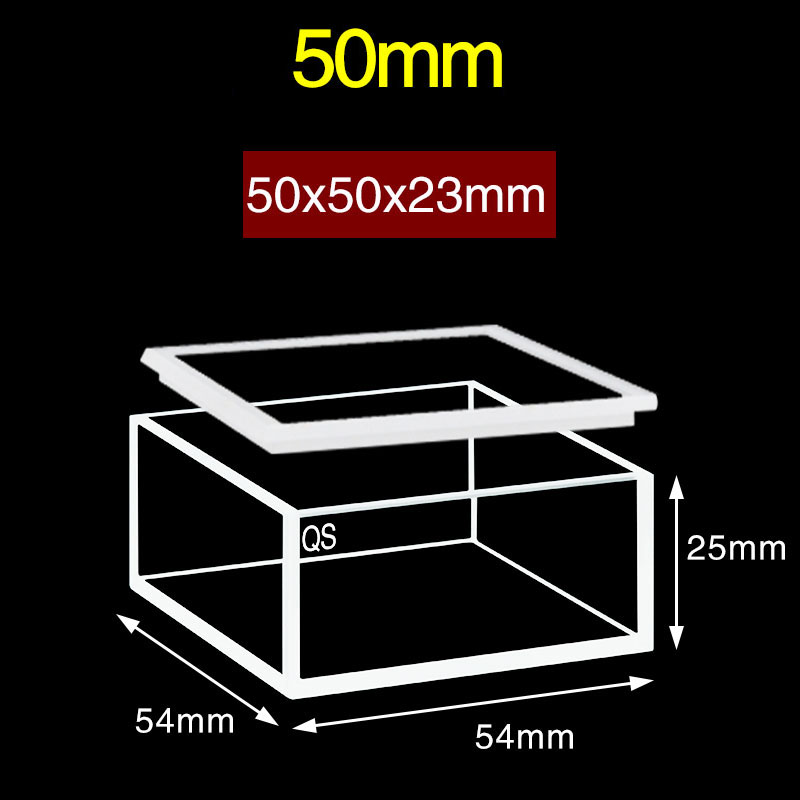

Exterior Dimensions	54 × 54 × 25 mm	Interior Dimensions	50 × 50 × 23 mm
Closure	Quartz Cover	Package	1pc/ea

Spectroscopy Applications

◆ UV-Vis Absorbance Spectroscopy — quantitative concentration, kinetics, Beer–Lambert studies

◆ Fluorescence Spectroscopy — 90° excitation/emission for fluorescent probes, dyes, and quantum dots

◆ DNA / RNA Quantification — nucleic-acid purity checks at 260/280 nm

◆ Protein Assays — Bradford, BCA, Lowry, and direct A280 measurements

◆ Enzyme Kinetics — real-time substrate conversion and inhibition studies

◆ Water Quality & Environmental — COD, nitrate, phosphate, heavy-metal colorimetric tests

◆ Pharmaceutical QC — dissolution testing, drug concentration, stability monitoring

◆ Chemical Reaction Monitoring — reaction progress tracking via absorbance changes

Why Five-Way Light?

Five-way light cuvettes have four vertical faces and the bottom face polished to optical grade. In addition to standard transmission and 90° fluorescence measurements, the polished bottom enables downward excitation or upward emission collection — a geometry used in total-internal-reflection fluorescence (TIRF) and certain plate-reader-style instruments.

Why a Quartz Cover?

The quartz cover plate provides a flat, optically transparent seal over the sample chamber. Unlike PTFE caps, a quartz cover allows top-down excitation or emission collection — enabling five-way optical access for advanced fluorescence geometries. The cover also minimizes evaporation and keeps contaminants out of the sample during measurements while maintaining full UV-Vis transparency across 190–2500 nm.

Why Sintered 83?

Sintered 83 uses high-temperature sintering to fuse quartz panels without adhesive, delivering >83% UV transmittance from 200–2500 nm. The sintered joints are chemically inert and compatible with strong acids, bases, and most organic solvents (excluding HF and aggressive organics such as toluene and acetone). This fabrication is ideal for analytical workflows involving harsh chemical matrices where standard glued cells would degrade.

Usage Tips

Rinse with a compatible solvent (e.g., ethanol or the measurement solvent) before first use to remove any residual particles.
Do not use abrasive materials or brushes on the polished optical faces — wipe gently with lens tissue.
Compatible with strong acids, bases, and most organic solvents (excluding HF and aggressive organics such as toluene and acetone).
Store in the original protective case to prevent scratches on the optical windows.
For baseline correction, fill with your reference solvent, and run a blank before sample measurements.

Custom Orders
Need a non-standard path length, volume, window configuration, or closure type? We manufacture quartz cuvettes to your exact specifications. Request a custom quote.

Disclaimer: Specifications are nominal values measured under standard laboratory conditions. Actual transmittance may vary slightly with wavelength and sample conditions. Images are representative; minor cosmetic variations between production batches are normal and do not affect optical performance.
