(C265CR) Quartz Fluorescence Cuvette, 26 mm Path, 15 mL

Weight	100 g

SKU: C265CR

Original price was: $237.00.Current price is: $214.00.

In Stock

C265CR is a JGS1 quartz fluorescence cuvette with a 26 mm optical path, Five-Way Light access and an open-top chamber for direct filling and inspection. Its 15 mL nominal capacity and 26 × 26 × 28 mm internal chamber suit methods that need a broad sample region in a compact body. Sold as 1 cuvette per listed price unit.

In Stock

SKU: C265CR Categories: Cuvettes, Products, Quartz Custom Cuvettes Brand: MachinedQuartz

Shipping and order support

Worldwide delivery to door service, hassle free shipping
Contact us for quotation of bulk purchase discount
Custom design. Send us graphic drawing for solution
POs for Academics. Pay after delivery.
Availability and dispatch timing vary by item and quantity. Contact us to confirm timing for your order.

Description

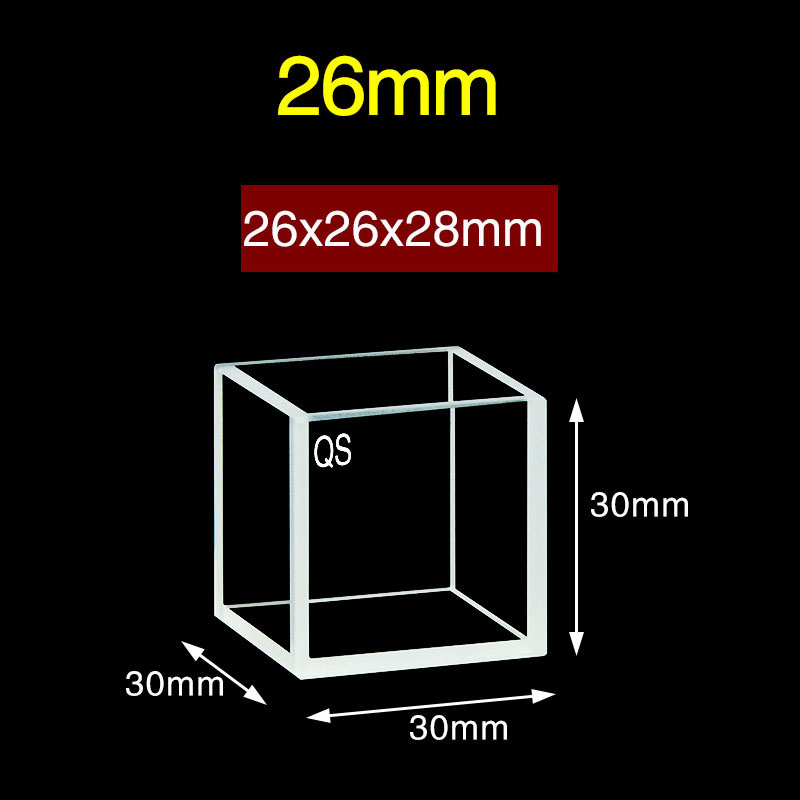

C265CR is a JGS1 quartz fluorescence cuvette with a 26 mm optical path, Five-Way Light access and a 15 mL nominal capacity. The open-top chamber lets you fill, inspect and rinse the sample area directly from above, while the 30 × 30 × 30 mm uncapped body keeps the outside geometry compact for holders and fixtures with limited side clearance.

This option is useful when you need a larger fluorescence sample chamber without moving to a tall or bulky cell body. The 26 × 26 × 28 mm internal chamber gives a broad sample region, and the powder-fused construction identified for this SKU is part of the physical build of the cell body rather than a separate cap or assembled plate arrangement.

Path Length: 26 mm
Sample Volume (Nominal): 15 mL
Opening Configuration: Open Top (Cell Body)

Selection Specifications

Product Kind	Cuvette
Cell Type	Fluorescence Cuvette
Measurement Mode	Fluorescence Spectroscopy
Path Length	26 mm
Light Transmission Configuration	Five-Way Light
Wavelength Range — Lower Limit	200 nm
Wavelength Range — Upper Limit	2500 nm
Sample Volume (Nominal)	15 mL
External Dimensions	30 × 30 × 30 mm
Uncapped Cell Dimensions	30 × 30 × 30 mm
External Dimensions Scope	Uncapped Cell
Body Height	30 mm
Internal Dimensions	26 × 26 × 28 mm
Material	Quartz
Material Grade	JGS1
Opening Configuration	Open Top (Cell Body)

Choose this option

Choose C265CR when your method uses a 26 mm fluorescence path and you want direct top access to the sample chamber. It suits manual filling and visual sample checking, and it is also useful when your optical setup needs side access in addition to the main beam direction, so the orientation of the cell matters in routine use.

What makes this option different

Open-top chamber: you can add sample, check liquid level and rinse the chamber directly from above, without working through a narrow neck or threaded port.
Five-Way Light layout: this body is intended for fluorescence setups that use more than one optical access direction around the sample region, so you should keep the cell orientation consistent in the holder.
26 mm optical path: the selected path length is fixed by this cell design and should match methods or holders planned around this path.
Broad internal chamber: the 26 × 26 × 28 mm sample region and 15 mL nominal capacity make this option suitable for a larger liquid chamber than micro-volume formats.
Compact outer body: the uncapped body remains 30 × 30 × 30 mm, which helps when checking holder opening and nearby fixture clearance.
Powder-fused construction: the supplier identifies this cell as a powder-fused build, which is a construction feature of this exact SKU and should be considered together with your sample and cleaning method rather than treated as a generic grade claim.

Using this cell

Fill the cell from the top opening and make sure the sample covers the intended beam area during measurement. The open chamber is convenient for pipetting, pouring, visual inspection and routine rinsing between runs.

For fluorescence work, place the cell in a consistent orientation each time if your method uses a defined optical direction within the Five-Way Light layout. Use the same orientation for blanks, standards and samples so the same faces are presented to the instrument on each run.

First-use check

Inspect the chamber opening, optical faces and edges for chips, particles or scratches.
Rinse the chamber with a cleaning liquid suitable for your method before first use.
Place the cell in the holder and confirm the intended measurement orientation.
Run a blank before introducing the sample.

Fit and optical alignment

The stated 30 × 30 × 30 mm dimensions apply to the uncapped cell body. Use these body dimensions when checking holder opening, side clearance and surrounding fixture space.

Z Height is not specified for this SKU. If your instrument depends on a defined beam-center height, confirm that point with your holder or setup instead of relying on body size alone.

Solvents and cleaning

This quartz cell is listed for fluorescence spectroscopy in the stated 200–2500 nm range. For fabrication background, see the MQ Cuvette Fabrication Glossary.

Detailed chemical compatibility limits are not specified for this exact option, so check suitability for chemically aggressive samples or cleaning agents before use. Do not use hydrofluoric acid on quartz. Avoid hot strong alkalis and abrasive cleaning methods, and wipe the optical faces gently with non-abrasive optical tissue.

Included with this option

1 cuvette per listed price unit. If you need a supplied closure or other accessory, contact us before ordering.

Availability and ordering

Order this specification directly, or contact us to check current availability and dispatch timing. If temporarily unavailable, additional preparation or production time may be needed. For a required delivery date, contact us before checkout; preparation or production is separate from carrier transit and customs clearance.

Discuss a custom version

We coordinate custom JGS1 quartz production for requirements involving dimensions, optical path length, sample volume, optical windows or Z Height, closures and connections, fabrication and tolerances. Send a dimensioned drawing or labelled sketch and identify the dimensions and tolerances that are critical to your application. Prototype batches typically involve 2–4 cells; the final quantity, feasibility, specifications, price and production time are confirmed in the project quotation. Modified designs and prototype batches are quoted separately from the listed SKU. Discuss your requirements and quote part number C265CR.
