(C051TC) Quartz Screw-Cap Bottle with PTFE Cap, Volume: 5 mL, Size: 20 x 35 mm

Description

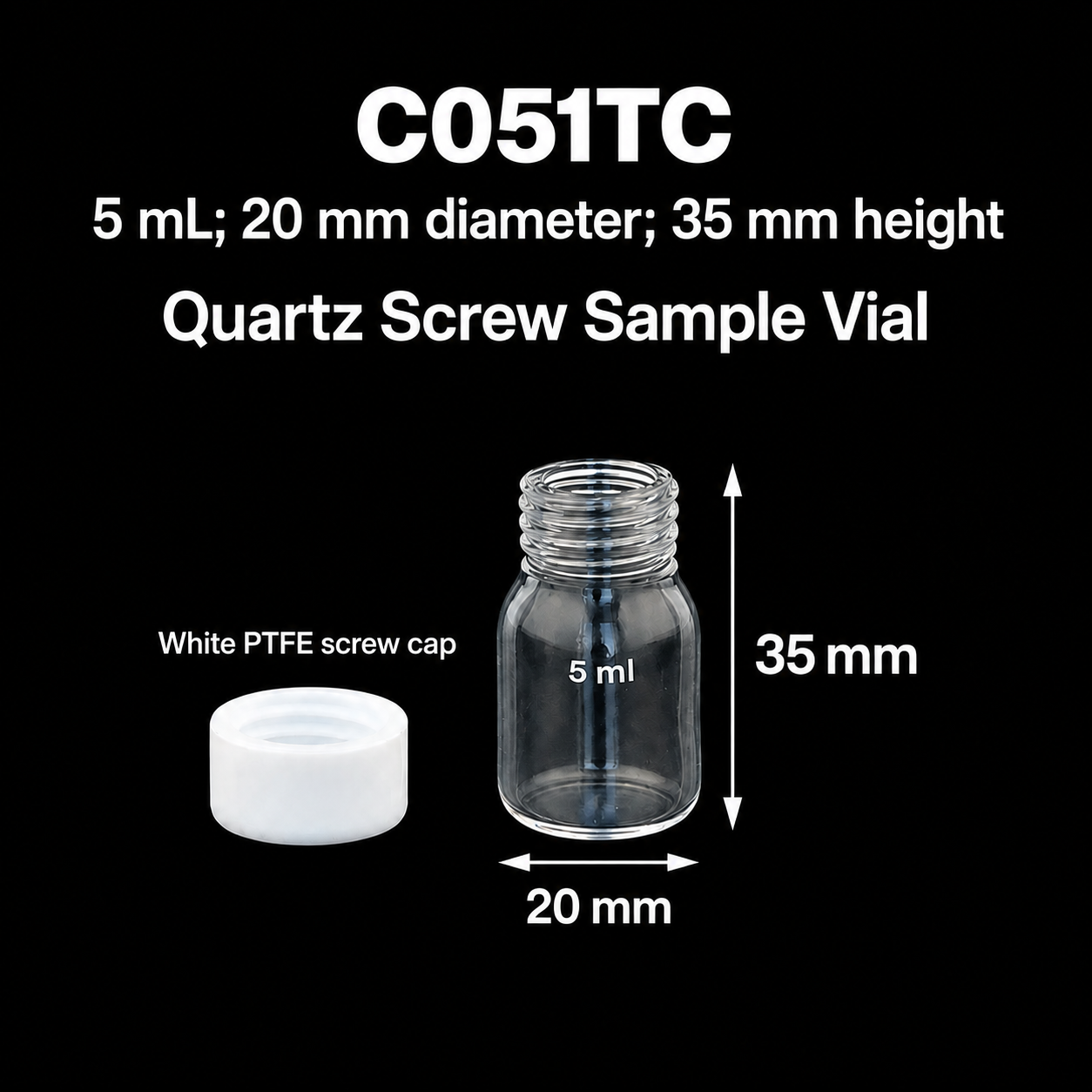

5 mL quartz screw-cap sample bottle with a white PTFE screw cap. Bottle dimensions: 20 mm outer diameter x 35 mm height, excluding the cap. Supplied as one bottle with one matching cap.

Product specifications

Cap and liner configuration

The white screw-cap body is PTFE. This is a PTFE cap configuration, distinct from a PP cap containing a PTFE liner. A quartz cap is a separate closure option and is not included in this sales unit.

Choosing this bottle

Compare the 20 x 35 mm bottle dimensions with your available holder or rack space. Nominal capacity describes the bottle size and is not a volumetric calibration specification. For replacement caps, confirm the bottle-neck diameter, thread and sealing arrangement; matching nominal capacity alone does not establish compatibility.

What is included

One 5 mL quartz bottle and one matching white PTFE screw cap. Spare caps and spare liners are not included.

Handling and compatibility

Inspect the bottle, threaded opening and closure before use. Avoid overtightening. Select operating conditions for the complete bottle-and-cap assembly rather than the quartz body alone. No pressure rating or universal instrument fit is specified.

Custom sizes and cap options

For a different capacity, bottle shape, PTFE cap or quartz cap, contact us with the required dimensions and closure configuration. Availability and dispatch timing for custom requirements must be confirmed.

Compare screw-cap bottles

Browse quartz screw sample vials and accessories for other sizes and separately sold caps. Confirm thread and liner fit before selecting replacement parts.
