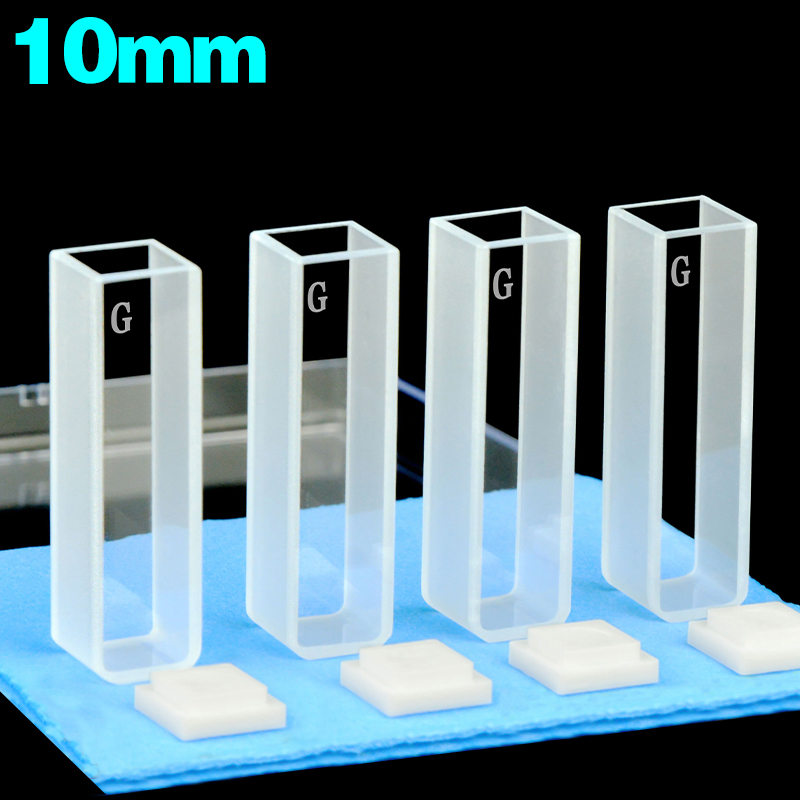

(C102CE31) Glass Standard Cuvette, 10 mm Path, 3.5 mL

Weight	30 g

SKU: C102CE31

Original price was: $23.00.Current price is: $21.00.

In Stock

C102CE31 is a glass standard cuvette with a 10 mm optical path, 3.5 mL nominal capacity and a supplied lid. The covered opening is useful when you want a standard rectangular cell body with direct filling access and a simple top cover during handling or measurement. Sold here as 4 cuvettes per price unit.

In Stock

SKU: C102CE31 Categories: Cuvettes, Glass Cuvettes, Products Brand: MachinedQuartz

Shipping and order support

Worldwide delivery to door service, hassle free shipping
Contact us for quotation of bulk purchase discount
Custom design. Send us graphic drawing for solution
POs for Academics. Pay after delivery.
Availability and dispatch timing vary by item and quantity. Contact us to confirm timing for your order.

Description

C102CE31 is a glass standard cuvette with a 10 mm optical path and a supplied lid in a familiar full-size rectangular format. Its 3.5 mL nominal capacity suits routine sample loading, while the covered opening can be useful when you want to place a lid over the sample after filling. The stated wavelength range is 350–2000 nm.

Path Length: 10 mm
Sample Volume (Nominal): 3.5 mL
Closure Type: Lid

Selection Specifications

Product Kind	Cuvette
Cell Type	Standard Cuvette
Measurement Mode	Absorbance Spectroscopy
Path Length	10 mm
Light Transmission Configuration	Two-Way Light
Wavelength Range — Lower Limit	350 nm
Wavelength Range — Upper Limit	2000 nm
Sample Volume (Nominal)	3.5 mL
External Dimensions	12.5 × 12.5 × 45 mm
Uncapped Cell Dimensions	12.5 × 12.5 × 45 mm
External Dimensions Scope	Uncapped Cell
Material	Glass
Closure Type	Lid
Closure Included	Yes

Choose this option

Choose C102CE31 when you want a standard 10 mm glass cuvette with a lid included rather than an entirely open body. It suits users who need direct top filling but also want the sample opening covered during handling or in-instrument use, without moving to a threaded, stoppered or flow-cell design.

What makes this option different

10 mm optical path for methods based on a standard 1 cm cell.
3.5 mL nominal capacity in a standard rectangular cuvette body.
Lid included for covering the sample opening after filling.
Stated wavelength range of 350–2000 nm.
Uncapped body size of 12.5 × 12.5 × 45 mm for holder-fit checks.
Sold here as 4 cuvettes per price unit.

Using this cell

Fill the cuvette from the top so the liquid level covers the beam area used by your instrument. After filling, check for bubbles on the optical faces and keep a consistent orientation if your procedure relies on repeatable positioning.

The lid serves as a cover for the opening. Use it for handling and measurement as appropriate in your setup, but do not treat it as a pressure-rated or leak-tight closure.

First-use check

Inspect the optical faces and edges for chips, residue or scratches.
Seat one empty cell in your holder to confirm fit and top clearance.
Run a test fill and verify that your operating liquid level covers the beam.
Check that the lid can be used in your setup without interfering with holder or instrument clearance.

Fit and optical alignment

The listed outer dimensions apply to the uncapped cell body: 12.5 × 12.5 × 45 mm. That helps you check holder width and insertion depth, while the presence of a lid means you should also allow top clearance if the cover remains in place during use.

Z Height is not established for this SKU. If your instrument has a fixed beam height or limited vertical adjustment, confirm beam alignment with this cell format before ordering.

Solvents and cleaning

Clean with methods appropriate for the actual sample and cleaning liquids used in your process. Chemical limits for this exact assembly are not established here, so if your workflow involves aggressive chemicals, check suitability for the full cell-and-lid assembly before use.

Avoid abrasive cleaning on the optical faces. For general fabrication background, see https://machinedquartz.com/fabrication-method-of-cuvettes/.

Included with this option

4 cuvettes per listed price unit. A lid is included.

Availability and ordering

Order this specification directly, or contact us to check current availability and dispatch timing. If temporarily unavailable, additional preparation or production time may be needed. For a required delivery date, contact us before checkout; preparation or production is separate from carrier transit and customs clearance.

Discuss a custom version

For a different design, send a drawing or describe the change you need through https://machinedquartz.com/contact/. Custom JGS1 quartz enquiries are assessed separately from this listed specification.
