(C102CE34) Glass Standard Cuvette, 10 mm Path, 3.5 mL

Weight	30 g

SKU: C102CE34

Original price was: $23.00.Current price is: $21.00.

In Stock

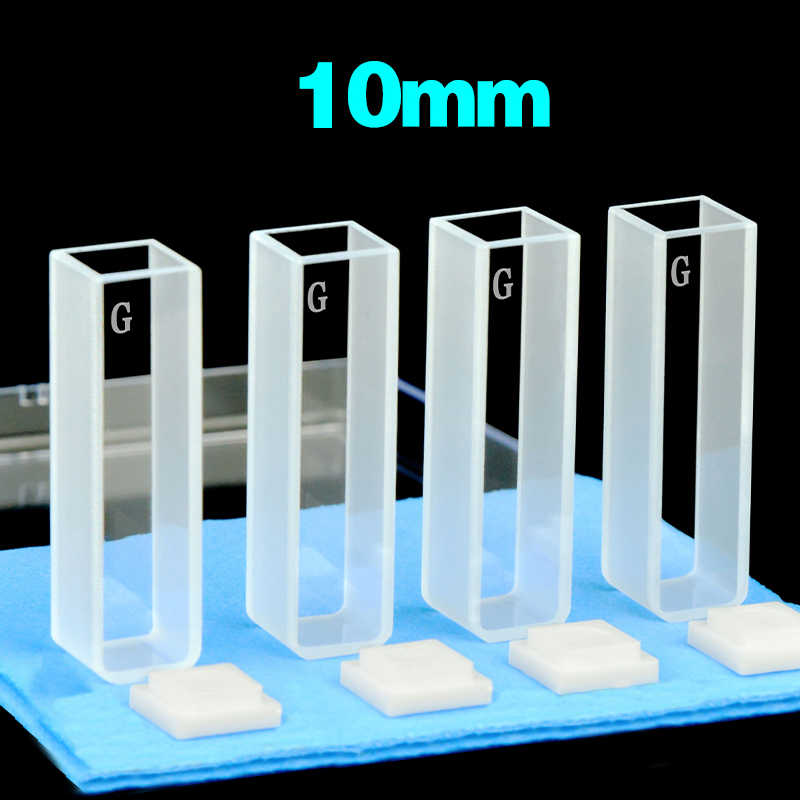

C102CE34 is a glass standard cuvette with a 10 mm optical path, 3.5 mL nominal volume and a top lid for covered handling between filling and measurement. Its 350–2000 nm stated range suits visible to near-infrared work in a familiar full-size rectangular format. Sold as one MQ price unit of 4 cuvettes.

In Stock

SKU: C102CE34 Categories: Cuvettes, Glass Cuvettes, Products Brand: MachinedQuartz

Shipping and order support

Worldwide delivery to door service, hassle free shipping
Contact us for quotation of bulk purchase discount
Custom design. Send us graphic drawing for solution
POs for Academics. Pay after delivery.
Availability and dispatch timing vary by item and quantity. Contact us to confirm timing for your order.

Description

C102CE34 is a glass standard cuvette for methods built around a 10 mm optical path. It combines a 3.5 mL nominal volume with a full-size rectangular body and a top lid, so you can fill it directly from above and then cover the opening during routine bench handling. The stated 350–2000 nm range suits visible to near-infrared work.

Path Length: 10 mm
Sample Volume (Nominal): 3.5 mL
Closure Type: Lid

Selection Specifications

Product Kind	Cuvette
Cell Type	Standard Cuvette
Measurement Mode	Absorbance Spectroscopy
Path Length	10 mm
Light Transmission Configuration	Two-Way Light
Wavelength Range — Lower Limit	350 nm
Wavelength Range — Upper Limit	2000 nm
Sample Volume (Nominal)	3.5 mL
External Dimensions	12.5 × 12.5 × 45 mm
Uncapped Cell Dimensions	12.5 × 12.5 × 45 mm
External Dimensions Scope	Uncapped Cell
Material	Glass
Closure Type	Lid
Closure Included	Yes

Choose this option

Choose C102CE34 when you need a conventional 10 mm cell in glass rather than a microvolume or flow format. The full-size 3.5 mL body suits routine manual filling, and the lid is useful when you want the sample opening covered during preparation and transfer to the instrument. This listing is sold as one MQ price unit of 4 cuvettes.

What makes this option different

10 mm optical path for methods that use the common 1 cm light path.
3.5 mL nominal volume in a standard rectangular cuvette body for direct top filling.
Top lid included for covered handling after filling.
Stated wavelength range of 350–2000 nm for visible to near-infrared use.
Uncapped body dimensions are 12.5 × 12.5 × 45 mm for holder and clearance checks.
Sold as one MQ price unit of 4 cuvettes.

Using this cell

Fill the cell from the top opening and make sure the filled sample region covers the beam path used by your instrument. Before measurement, check for bubbles on the optical faces and keep a consistent orientation if your procedure depends on matching blank and sample placement.

The lid covers the top opening during normal preparation and handling. It should not be treated as a leak-proof, pressure-rated or transport-sealed closure.

First-use check

Inspect the optical faces, edges and top opening before first use. Rinse with a liquid suitable for your method, then do a trial fit or blank run to confirm that the cell seats properly and that the filled sample level covers the beam in your setup.

Fit and optical alignment

The stated 12.5 × 12.5 × 45 mm dimensions apply to the uncapped cell body. Use those dimensions to check holder seating and side clearance in your cuvette position, then allow extra space above the cell when you plan to use it with the lid in place.

Z Height is not specified for this item. If your instrument, thermostat block or accessory depends on a particular beam-centre height, check that requirement directly instead of relying on the outer body size alone.

Solvents and cleaning

Chemical limits are not established here for the full glass-and-lid assembly, so match both the sample liquid and the cleaning liquid to your actual conditions before routine use. Do not assume suitability for all acids, bases or organic solvents.

Use non-abrasive cleaning methods and avoid harsh scrubbing on the optical faces. For general background on cuvette fabrication approaches, see https://machinedquartz.com/fabrication-method-of-cuvettes/.

Included with this option

Price is for one MQ pack of four cuvettes. A lid is included with this option. Other package contents are not specified here.

Availability and ordering

Order this specification directly, or contact us to check current availability and dispatch timing. If temporarily unavailable, additional preparation or production time may be needed. For a required delivery date, contact us before checkout; preparation or production is separate from carrier transit and customs clearance.

Discuss a custom version

If you need another path length, a different body size or a quartz alternative for another wavelength range, send your drawing or labelled sketch, holder details and sample conditions through https://machinedquartz.com/contact/ and include part number C102CE34.
