Glass 10mm Round-Corner Glass Cuvette, 3.5ml, Sintered 80, Two-way Light, PTFE Cap, Pack of Four, C102CA9
6%
USD$19.00 USD$18.00
Glass 10 mm round-corner cuvette, 3.5 ml, Sintered 80 (>80%). Two-Way Light. 340–2500 nm. PTFE Cap. Pack of Four. SKU: C102CA9. In Stock.
Description

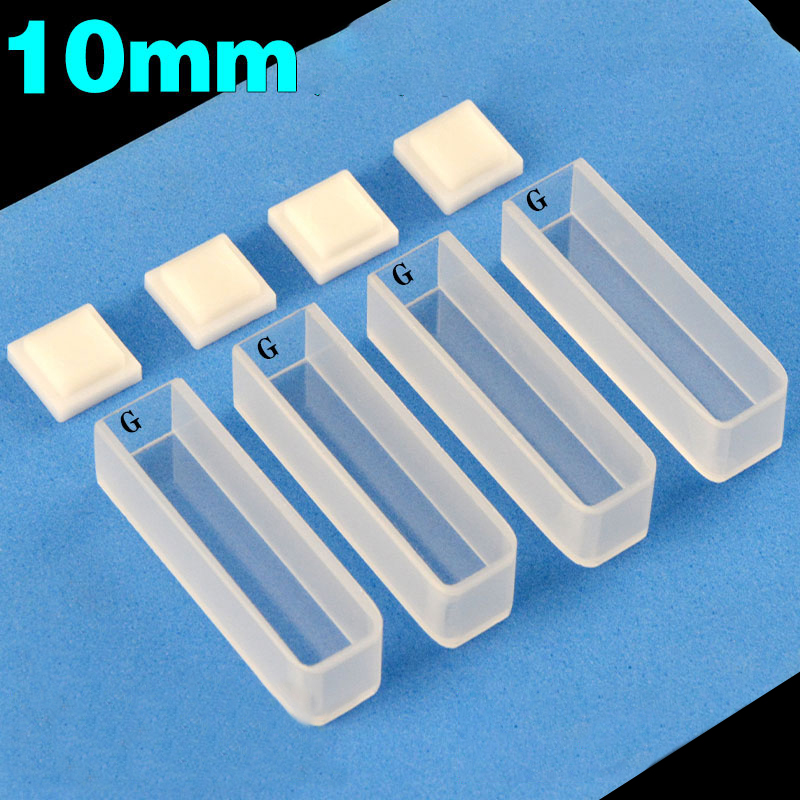

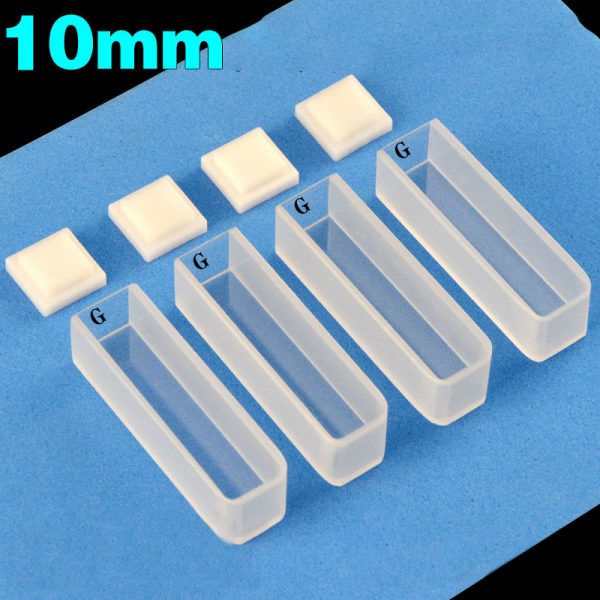

The C102CA9 is a pack of four of round-corner glass cuvettes, each with a 10 mm optical path length and 3.5 ml volume. Sintered 80 fabrication provides fused-joint construction for superior chemical resistance and long-term durability. Round corners reduce the risk of chipping during handling.
| Specifications — C102CA9 | |||
|---|---|---|---|
| Material | Optical Glass (Sintered 80) | SKU | C102CA9 |
| Type | Standard Cell (Two-Way Light) | Path Length | 10 mm |
| Volume | 3.5 ml | Optical Windows | 2 (frosted sides) |
| Corner Style | Round Corner | Fabrication | Sintered 80 |
| Transmittance | > 80% (340–2500 nm) | Wavelength Range | 340 – 2500 nm |
| Exterior Dimensions | 12.5 × 12.5 × 45 mm | Interior Dimensions | 10 × 10 × 43 mm |
| Cap Type | PTFE Cap | Package | Pack of Four |
Spectroscopy Applications
🔬UV-Vis Spectroscopy
Absorbance and transmittance measurements across 340–2500 nm🏥Clinical Diagnostics
Blood chemistry, serum protein, and biomarker analysis💊Pharmaceutical Analysis
Drug concentration, purity, and dissolution testing🌊Environmental Monitoring
Water quality, pollutant detection, and nutrient analysis🍷Food & Beverage Testing
Color measurement, additive analysis, and quality control🎓Educational Laboratories
Teaching spectroscopy principles with durable, affordable cells⚗️Chemical Analysis
Reaction kinetics, titration monitoring, and concentration assays🧪Quality Control
Industrial process monitoring and raw material verification
Absorbance and transmittance measurements across 340–2500 nm🏥Clinical Diagnostics
Blood chemistry, serum protein, and biomarker analysis💊Pharmaceutical Analysis
Drug concentration, purity, and dissolution testing🌊Environmental Monitoring
Water quality, pollutant detection, and nutrient analysis🍷Food & Beverage Testing
Color measurement, additive analysis, and quality control🎓Educational Laboratories
Teaching spectroscopy principles with durable, affordable cells⚗️Chemical Analysis
Reaction kinetics, titration monitoring, and concentration assays🧪Quality Control
Industrial process monitoring and raw material verification
Why Round-Corner Construction?
Round-corner cuvettes are less prone to chipping and cracking during routine handling and cleaning. The softened edges also reduce the likelihood of cutting gloves or fingers, making them a safer and more durable choice for busy laboratories and high-throughput workflows.
Why Sintered Glass?
Sintered (fused) fabrication bonds the cuvette walls using high-temperature fusion rather than adhesive. This creates superior chemical resistance against aggressive solvents and acids, along with greater thermal stability. Ideal for labs working with organic solvents or requiring long service life.
💡 Usage Tips
Filling: Fill to approximately 80% capacity (~2.8 ml) for optimal light path coverage.
Cleaning: Rinse with distilled water, then ethanol or acetone. Dry with lint-free tissue.
Orientation: Align the two clear (polished) windows with the instrument beam path; frosted sides face left and right.
Filling: Fill to approximately 80% capacity (~2.8 ml) for optimal light path coverage.
Cleaning: Rinse with distilled water, then ethanol or acetone. Dry with lint-free tissue.
Orientation: Align the two clear (polished) windows with the instrument beam path; frosted sides face left and right.
🛠 Custom Orders
Need a different path length, volume, or material? We offer custom fabrication for glass cuvettes. Contact us with your specifications.
Need a different path length, volume, or material? We offer custom fabrication for glass cuvettes. Contact us with your specifications.
Specifications are nominal and may vary slightly due to manufacturing tolerances. Images are for reference only; actual product appearance may differ.
Additional information
| Weight | 30 g |
|---|
