(C202CE7) Glass Standard Cuvette, 20 mm Path, 7 mL

Weight	100 g

SKU: C202CE7

Original price was: $33.00.Current price is: $30.00.

In Stock

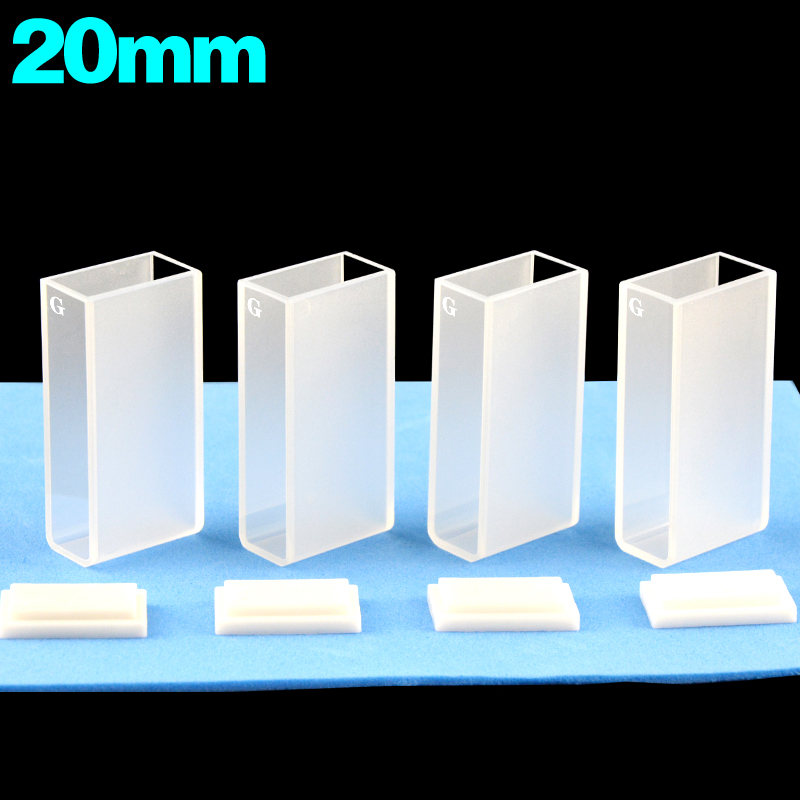

Glass standard cuvette C202CE7 uses a 20 mm optical path and 7 mL nominal capacity in a full-size rectangular body. A lid is included, and the MQ sale unit for this listing is a pack of 4 cuvettes.

In Stock

SKU: C202CE7 Categories: Cuvettes, Glass Cuvettes, Products Brand: MachinedQuartz

Shipping and order support

Worldwide delivery to door service, hassle free shipping
Contact us for quotation of bulk purchase discount
Custom design. Send us graphic drawing for solution
POs for Academics. Pay after delivery.
Availability and dispatch timing vary by item and quantity. Contact us to confirm timing for your order.

Description

C202CE7 is a glass standard cuvette for measurements that use a 20 mm optical path in a full-size rectangular format. The 7 mL nominal capacity suits routine liquid loading, and the included lid gives you a covered top arrangement for normal bench handling. This listing is sold as a pack of 4 cuvettes.

Path Length: 20 mm
Sample Volume (Nominal): 7 mL
Closure Type: Lid

Selection Specifications

Product Kind	Cuvette
Cell Type	Standard Cuvette
Measurement Mode	Absorbance Spectroscopy
Path Length	20 mm
Light Transmission Configuration	Two-Way Light
Wavelength Range — Lower Limit	350 nm
Wavelength Range — Upper Limit	2000 nm
Sample Volume (Nominal)	7 mL
External Dimensions	22.5 × 12.5 × 45 mm
Uncapped Cell Dimensions	22.5 × 12.5 × 45 mm
External Dimensions Scope	Uncapped Cell
Material	Glass
Closure Type	Lid
Closure Included	Yes

Choose this option

Choose C202CE7 when your method is written around a 20 mm path and you want a standard glass cell supplied with a lid. It suits laboratories that want direct top filling in a familiar body size while keeping the sample covered during handling steps around the instrument.

What makes this option different

20 mm optical path for methods that require this longer standard-cell light path.
7 mL nominal capacity for routine liquid sample preparation and loading.
Lid included for covered top handling during normal use.
MQ sale unit: pack of 4 cuvettes at the listed price.

Using this cell

Fill the cell from the top and make sure the sample covers the beam area used by your instrument. Remove visible bubbles before measurement, and keep the same orientation for blank and sample when your method relies on consistent positioning.

The lid can be used during routine handling, but this product is not presented here as a sealed, leak-tight or pressure-rated assembly. Handle the cell by the non-optical outer surfaces to help keep the measurement windows clean.

First-use check

Inspect the cuvette body and lid for chips, scratches, dust or residue.
Rinse with a cleaning method suited to your application.
Test one empty cell in the holder and confirm that the lid does not interfere with placement or removal.

Fit and optical alignment

The stated outer dimensions are 22.5 × 12.5 × 45 mm for the uncapped cell body. Use those dimensions to check holder fit and insertion space, and allow additional clearance above the body because the installed size with the lid is not established here.

Z Height is not established for this SKU. If your holder or instrument depends on a fixed beam height, check that point before ordering.

Solvents and cleaning

The exact chemical limits for this assembly are not established here, so choose sample and cleaning liquids with care for the complete cell-and-lid setup. If your procedure involves aggressive chemicals, long soak times, heated solutions or unusual cleaning agents, check suitability before use.

Avoid abrasive cleaning that could mark the optical faces. For general background on cuvette fabrication approaches, see Compare fabrication options.

Included with this option

Supplied as one MQ sale pack of four cuvettes. A lid is included with this option.

Availability and ordering

Order this specification directly, or contact us to check current availability and dispatch timing. If temporarily unavailable, additional preparation or production time may be needed. For a required delivery date, contact us before checkout; preparation or production is separate from carrier transit and customs clearance.

Discuss a custom version

If you need a different path length, dimensions, closure style or another fit detail, we can review a custom version. Send your requirements through our contact page and refer to C202CE7.
