(C402CA6) Glass Standard Cuvette, 40 mm Path, 14 mL

Weight	100 g

SKU: C402CA6

Original price was: $24.00.Current price is: $22.00.

In Stock

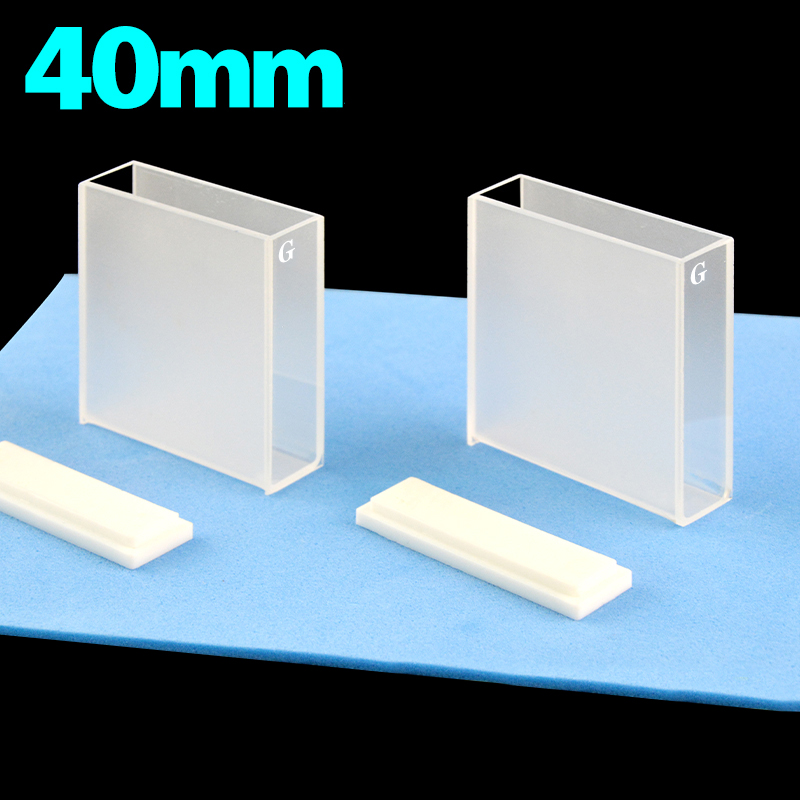

C402CA6 is a glass standard cuvette with a 40 mm optical path, 14 mL nominal capacity and a supplied lid for covered sample handling in the 350–2000 nm range. It suits methods that need a longer rectangular cell body and a larger nominal sample chamber than shorter-path standard cuvettes.

In Stock

SKU: C402CA6 Categories: Cuvettes, Glass Cuvettes, Products Brand: MachinedQuartz

Shipping and order support

Worldwide delivery to door service, hassle free shipping
Contact us for quotation of bulk purchase discount
Custom design. Send us graphic drawing for solution
POs for Academics. Pay after delivery.
Availability and dispatch timing vary by item and quantity. Contact us to confirm timing for your order.

Description

C402CA6 is a glass standard cuvette with a 40 mm optical path, 14 mL nominal capacity and a supplied lid. It is a practical choice when your method needs a longer light path in a familiar rectangular cell format, while still allowing direct top filling before you place the lid.

Path Length: 40 mm
Sample Volume (Nominal): 14 mL
Closure Type: Lid

Selection Specifications

Product Kind	Cuvette
Cell Type	Standard Cuvette
Measurement Mode	Absorbance Spectroscopy
Pack Quantity	Pack of 2
Path Length	40 mm
Light Transmission Configuration	Two-Way Light
Wavelength Range — Lower Limit	350 nm
Wavelength Range — Upper Limit	2000 nm
Sample Volume (Nominal)	14 mL
External Dimensions	42.5 × 12.5 × 45 mm
Uncapped Cell Dimensions	42.5 × 12.5 × 45 mm
External Dimensions Scope	Uncapped Cell
Material	Glass
Closure Type	Lid
Closure Included	Yes

Choose this option

Choose C402CA6 when your procedure calls for a 40 mm path length and you want a full-size glass sample cell rather than a low-volume format. The larger nominal capacity suits routine liquid filling in a longer body, and the lid gives you a covered cell during normal handling and measurement setup without changing the basic top-access filling style.

What makes this option different

40 mm optical path: match the measurement method to this transmission distance and align the beam through the sample region.
14 mL nominal capacity: plan the working fill and beam footprint together so liquid covers the illuminated region; nominal capacity is not a minimum working fill.
Accompanying closure: cover the opening after preparation and allow room to remove it; no pressure or leak-tight rating is specified.
Supplier-described fused integrated construction: keep the body assembled for routine cleaning and rinse through the sample opening, using liquids suitable for the complete glass assembly.

Using this cell

Fill the sample from the top opening and make sure the liquid level covers the beam area used by your instrument during measurement. Keep the same orientation for blank and sample if your procedure depends on consistent positioning, and remove visible bubbles from the light path before reading.

The 14 mL figure is the nominal cell capacity, not a minimum working volume. If you expect to run with a low fill level or a tightly defined beam position, check your actual liquid coverage in the holder because no Z Height value is available for this item.

First-use check

Inspect the optical faces and lid for chips, dust or residue.
Place the empty cell in the holder to confirm stable seating and top clearance.
Rinse using a cleaning method suitable for your sample and the complete cell assembly before first use.

Fit and optical alignment

The recorded dimensions of the uncapped cell body are 42.5 × 12.5 × 45 mm. Use these body dimensions for holder fit and side clearance, and leave additional room above the cell because the overall installed height with the lid is not stated here.

A rectangular standard-style body does not by itself guarantee instrument fit. If your instrument or accessory depends on a defined beam-center height, confirm that requirement before ordering because this SKU does not have a stated Z Height.

Solvents and cleaning

Use cleaning and sample-contact conditions appropriate for a glass cuvette together with its lid and full assembly. The exact chemical limits for this specific SKU are not established here, so if your work involves aggressive chemicals or specialised cleaning liquids, check suitability for your full process before use.

Use non-abrasive cleaning methods and protect the optical faces from scratching. For general background on cuvette construction approaches, see https://machinedquartz.com/fabrication-method-of-cuvettes/.

Included with this option

This configuration includes an accompanying closure. Confirm the cell quantity and any separately specified accessories covered by your order.

Availability and ordering

Order this specification directly, or contact us to check current availability and dispatch timing. If temporarily unavailable, additional preparation or production time may be needed. For a required delivery date, contact us before checkout; preparation or production is separate from carrier transit and customs clearance.

Discuss a custom version

We coordinate custom JGS1 quartz production for requirements involving dimensions, optical path length, sample volume, optical windows or Z Height, closures and connections, fabrication and tolerances. Send a dimensioned drawing or labelled sketch and identify the dimensions and tolerances that are critical to your application. Prototype batches typically involve 2–4 cells; the final quantity, feasibility, specifications, price and production time are confirmed in the project quotation. Modified designs and prototype batches are quoted separately from the listed SKU. https://machinedquartz.com/contact/
