(MQACC015) Single-Position Cuvette Holder for 10 mm Path Cells

Weight50 g
SKU: MQACC015

$48.00

In Stock

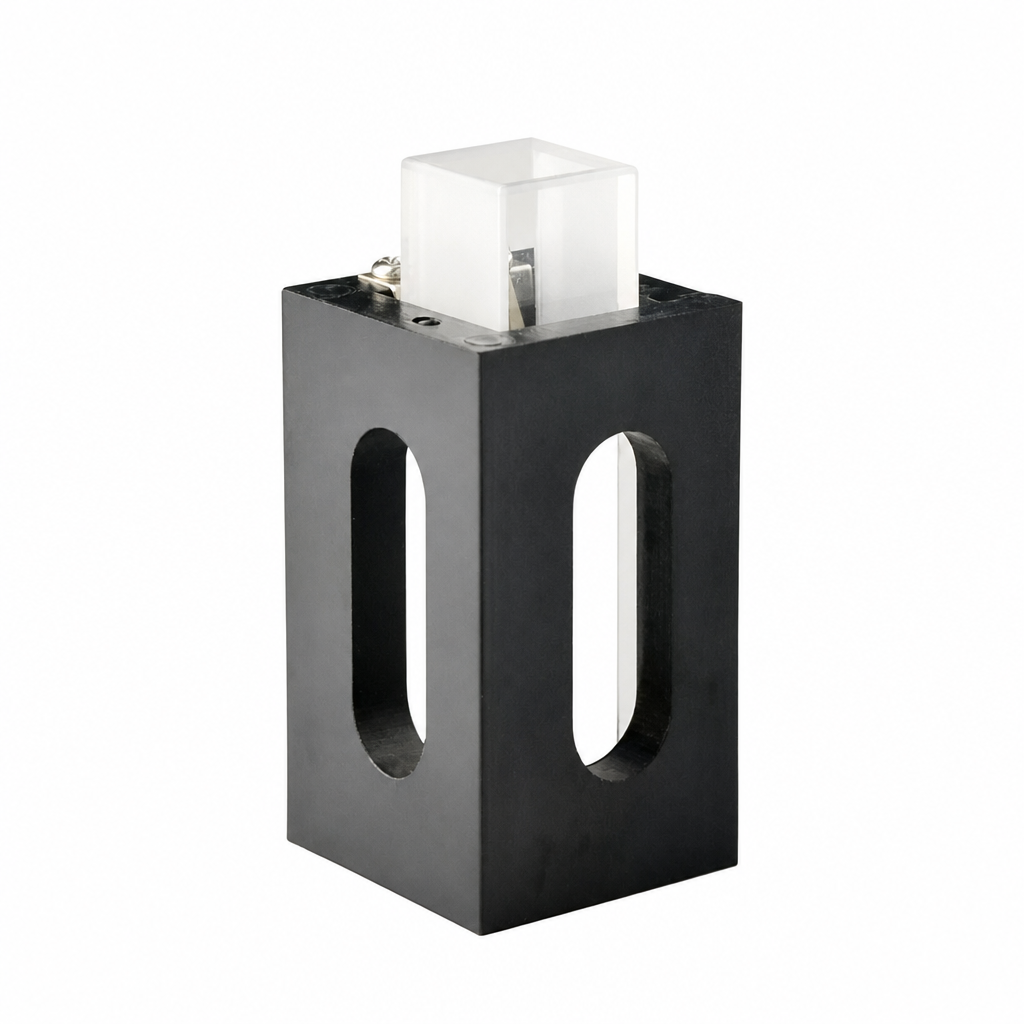

Single-position plastic holder for matching 10 mm path cuvettes, with a 24 × 24 × 40 mm exterior, 14.5 × 14.5 mm internal opening and metal retaining clip. The 20 mm mounting-hole spacing helps identify the fixture pattern. One holder; cuvette sold separately.

In Stock
Add to Wishlist
Add to Wishlist
Shipping and order support
  • Worldwide delivery to door service, hassle free shipping
  • Contact us for quotation of bulk purchase discount
  • Custom design. Send us graphic drawing for solution
  • POs for Academics. Pay after delivery.
  • Availability and dispatch timing vary by item and quantity. Contact us to confirm timing for your order.

Description

MQACC015 is a single-position plastic holder for the listed 10 mm path cuvette format. Its compact 24 × 24 × 40 mm one-piece body suits installations where you need one dedicated cell position, a replacement holder or a simple standalone support rather than a multi-cell rack. The holder is selected by the cuvette format it supports and by the mounting space available around it.

External Dimensions
24 × 24 × 40 mm
Material
Plastic
Pack Quantity
1 Piece

Selection Specifications

Product KindAccessory
Compatible Cuvette Path Length10 mm
External Dimensions24 × 24 × 40 mm
Body Height40 mm
Base Dimensions24 × 24 mm
MaterialPlastic
Pack Quantity1 Piece
Sales Unitpiece
Package Contents1 × Cuvette holder

Choose this option

Choose this holder when your setup uses a 10 mm path cuvette format and you want one fixed measurement position in a compact accessory body. It is particularly useful where the surrounding fixture space is limited or where only one cuvette needs to be installed at a time.

What makes this option different

  • Single-position holder for one cuvette at a time.
  • Listed for 10 mm path cuvette format.
  • One-piece plastic body for a compact 24 × 24 mm footprint.
  • 40 mm overall holder height for installation clearance review.
  • 14.5 × 14.5 mm internal opening and a metal retaining clip for the matching cell body.

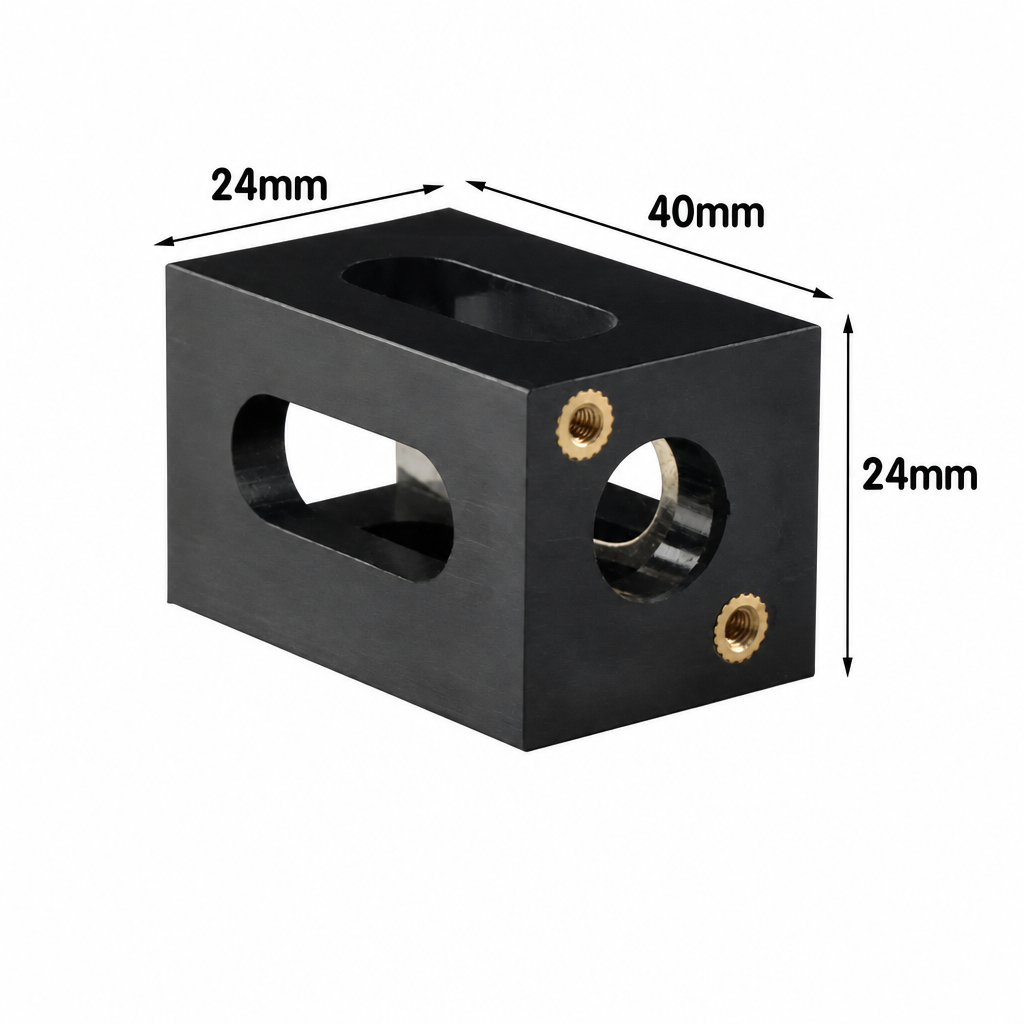

Structure and dimensions

Holder layout and cell-support openings.
Holder layout and cell-support openings.Open image ↗

Using this accessory

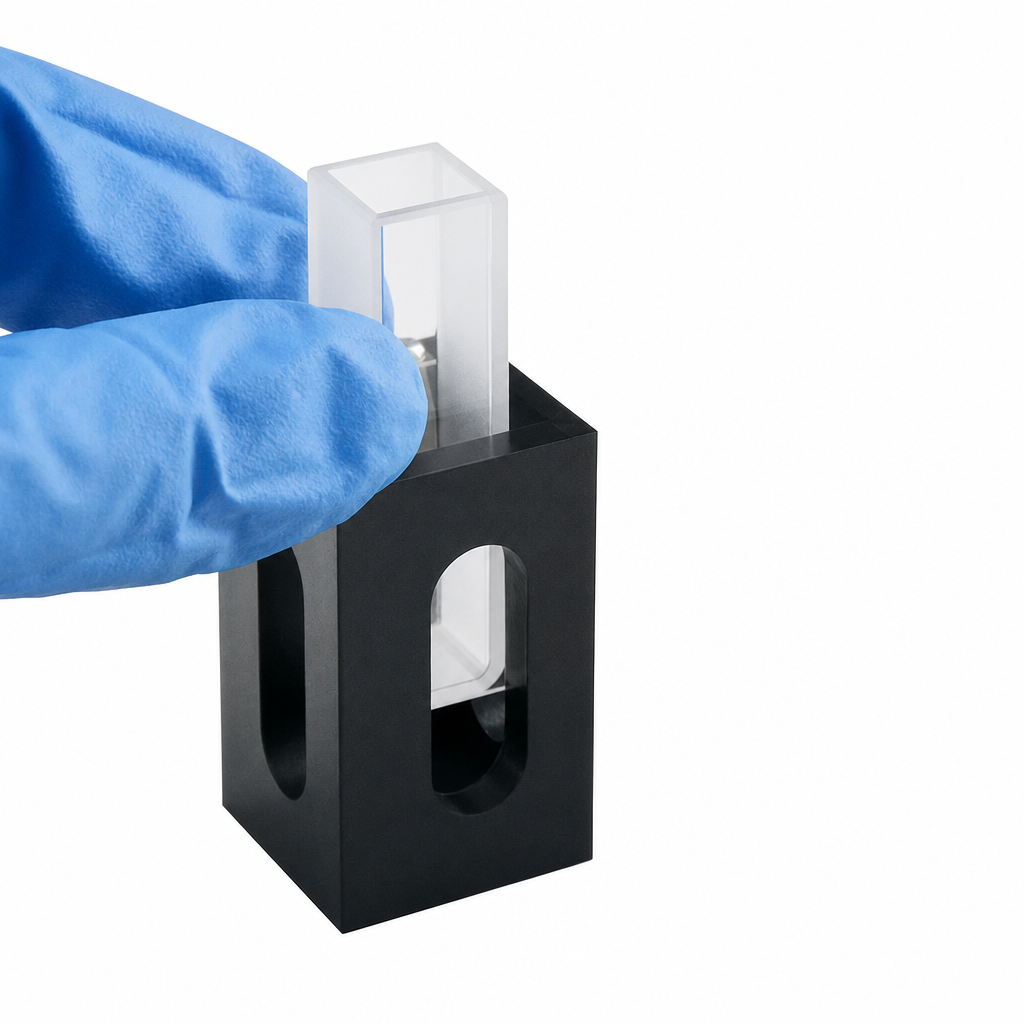

Place the holder in your mount or fixture and seat the matching cuvette carefully so it sits squarely and remains supported during use. Before measurement, verify that the cuvette orientation presents its optical faces correctly to the beam path and that the cell body is not under side load.

The metal retaining clip supports the matching cell within the 14.5 × 14.5 mm internal opening. Compare the cell exterior and contact points with that opening, and keep its optical faces clear of the support surfaces. The opening is a holder feature, not the liquid chamber or cuvette optical path.

First-use check

Inspect the holder and contact surfaces for residue or damage, then test the cuvette fit dry before use. Confirm that the installed cell sits evenly and that any required beam access remains unobstructed.

Fit and optical alignment

View the English selection reference.

Check the 24 × 24 mm footprint and 40 mm holder height against your bracket, holder seat or instrument compartment. The selection reference also shows 20 mm hole spacing as a mounting detail for fit review. It is not a beam-height value, and the 10 mm path designation does not by itself establish full instrument alignment.

English selection reference
Selection reference ↗

Handling and cleaning

Clean the holder with a gentle, non-abrasive method suitable for plastic parts. If reagents or cleaning liquids may contact the holder during use, check the full assembly before routine exposure.

Included with this option

1 cuvette holder. The listed price is for one piece. Cuvettes are not included.

Availability and ordering

Order directly, or ask us about current availability and dispatch. Preparation time is separate from transit and customs clearance; ask before checkout if you need a particular delivery date.

Need a different fit?

For a different fit, send your cuvette SKU and mating dimensions or a drawing.
