(MQACC016) Blue Silicone Injection Cap for 10 mm Path Cuvettes
Description

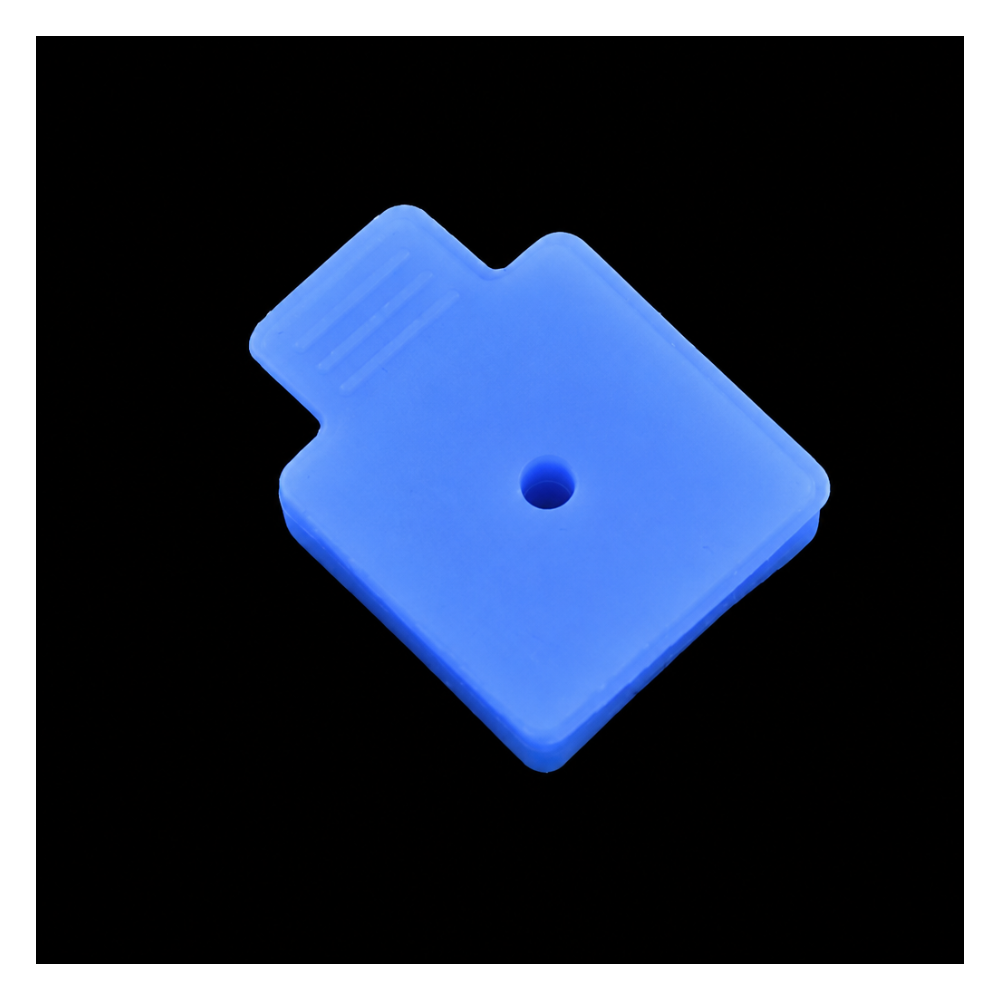

MQACC016 is a blue silicone cap with a preformed access hole and a pull tab for the corresponding 10 mm path cuvette format. The opening lets you add liquid through the top while the cap remains seated; the tab provides a separate point to grip when removing it.
- Closure Type
- Sealing Cap
Selection Specifications
| Product Kind | Accessory |
|---|---|
| Compatible Cuvette Path Length | 10 mm |
| Material | Silicone |
| Closure Type | Sealing Cap |
| Closure Material | Silicone |
| Pack Quantity | 1 Piece |
| Sales Unit | piece |
| Package Contents | 1 × Cuvette cap/lid |
Choose this option
Choose this version when you need a cap with an existing top opening rather than a plain removable cover. The blue colour and pull tab distinguish it from the plain white cap style. Match the complete plug and rim geometry to the cell you use.
What makes this option different
- Preformed access hole: provides an existing route through the top for controlled liquid addition.
- Pull tab: provides a visible grip point for removal.
- Blue silicone: distinguishes the cap during handling and replacement.
- One separate cap: for the matching 10 mm path cell top.
Using this accessory
Support the cuvette and seat the cap evenly on clean mating surfaces. Use the existing opening without levering against the cell or displacing the cap; lift by the tab when removal is required.
First-use check
Inspect the accessory and mating surfaces for damage, residue or deformation. Trial-fit with a clean, empty cell and confirm even seating and smooth removal before introducing sample.
Fit and installation
The 10 mm designation refers to the intended cuvette path, not a cap dimension. Cap footprint, plug dimensions and hole diameter are not specified; compare the actual shape with your original cap or a drawing. Leave enough space above the cell for placement and removal.

Handling and cleaning
Use a gentle, non-abrasive cleaning method suitable for silicone and the complete cell assembly. Check chemical and temperature suitability for your sample. An open access hole is not a needle-punctured, self-sealing septum; no gas-tightness, pressure or repeated-puncture performance is specified.
Included with this option

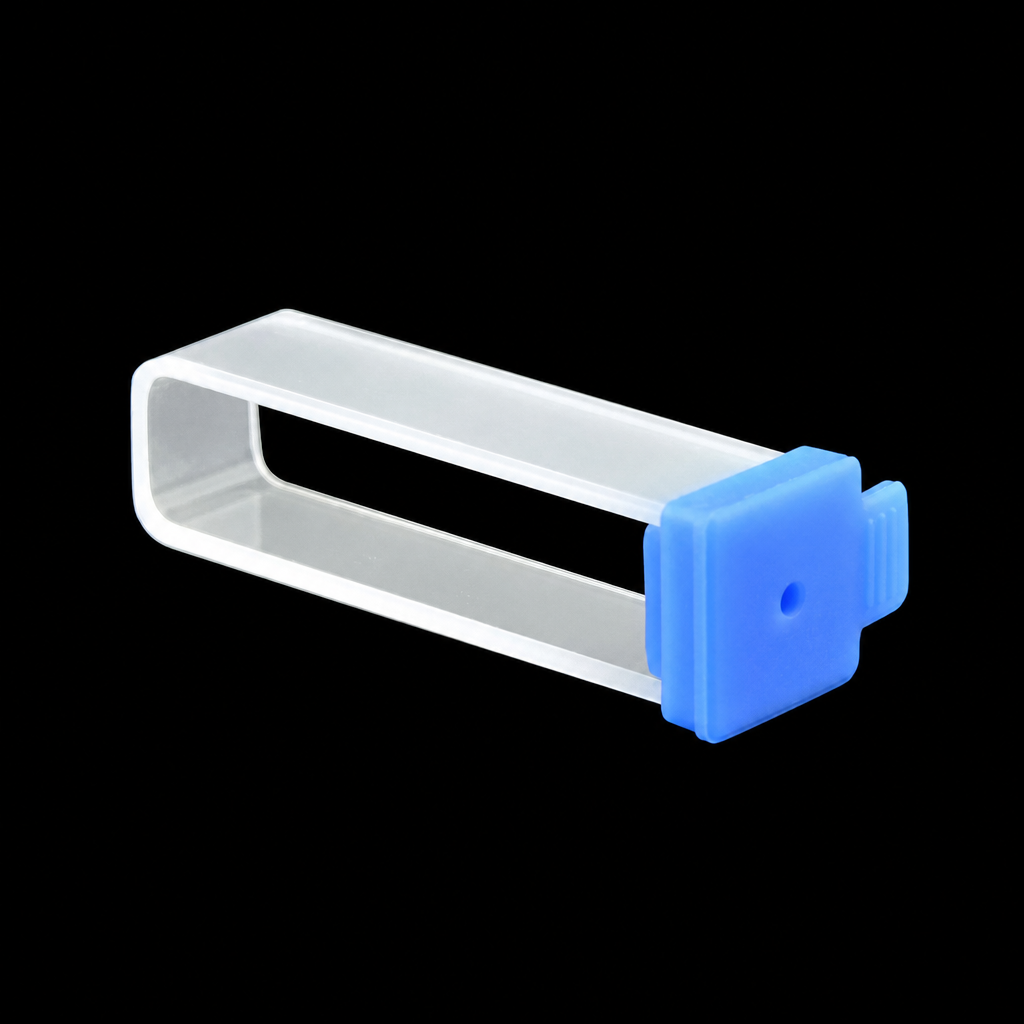

One blue access-hole cap. Cuvettes shown for fit illustration are not included.
Availability and ordering
Order this listed option directly, or contact us to check current availability and dispatch timing. For a required delivery date, please ask before checkout. Preparation time is separate from carrier transit and customs clearance.
Need a different fit?
Contact us with SKU MQACC016 and your cuvette SKU or mating-part details if you need a different cap style or fit.
Additional information
| Weight | 50 g |
|---|
