(MQACC030) PTFE Cuvette Lid for 20 mm Path Cells

Weight50 g
SKU: MQACC030

$3.00

In Stock

PTFE stepped lid for matching 20 mm path cuvettes, with a 22.5 × 12.5 mm outer footprint and 5 mm overall height. Its rectangular profile helps distinguish this replacement from similar covers; match the step as well as the outline. One lid supplied; cuvette sold separately.

In Stock
Add to Wishlist
Add to Wishlist
Shipping and order support
  • Worldwide delivery to door service, hassle free shipping
  • Contact us for quotation of bulk purchase discount
  • Custom design. Send us graphic drawing for solution
  • POs for Academics. Pay after delivery.
  • Availability and dispatch timing vary by item and quantity. Contact us to confirm timing for your order.

Description

MQACC030 is a PTFE lid for the matching 20 mm path cuvette format. Its rectangular stepped profile measures 22.5 × 12.5 mm across the outer footprint and 5 mm in overall height, providing a size reference when choosing a replacement or spare.

View the English selection reference.

Closure Type
Lid

Selection Specifications

Product KindAccessory
Compatible Cuvette Path Length20 mm
External Dimensions22.5 × 12.5 × 5 mm
Body Height5 mm
Base Dimensions22.5 × 12.5 mm
Closure TypeLid
Closure MaterialPTFE
Pack Quantity1 Piece
Sales Unitpiece
Package Contents1 × Cuvette cap/lid

Choose this option

The 22.5 mm long rectangular lid is intended for the corresponding 20 mm path cell format. Its length and 12.5 mm width help distinguish it from the square cover used on a different top format.

What makes this option different

  • Stepped profile: a raised section sits within the wider outer footprint. Match the profile to the cuvette top rather than selecting by outline alone.
  • 22.5 × 12.5 × 5 mm exterior: these are the lid dimensions; the 20 mm path designation refers to the intended cuvette format.
  • Separate PTFE cover: supplied as one lid for replacement or spare use.

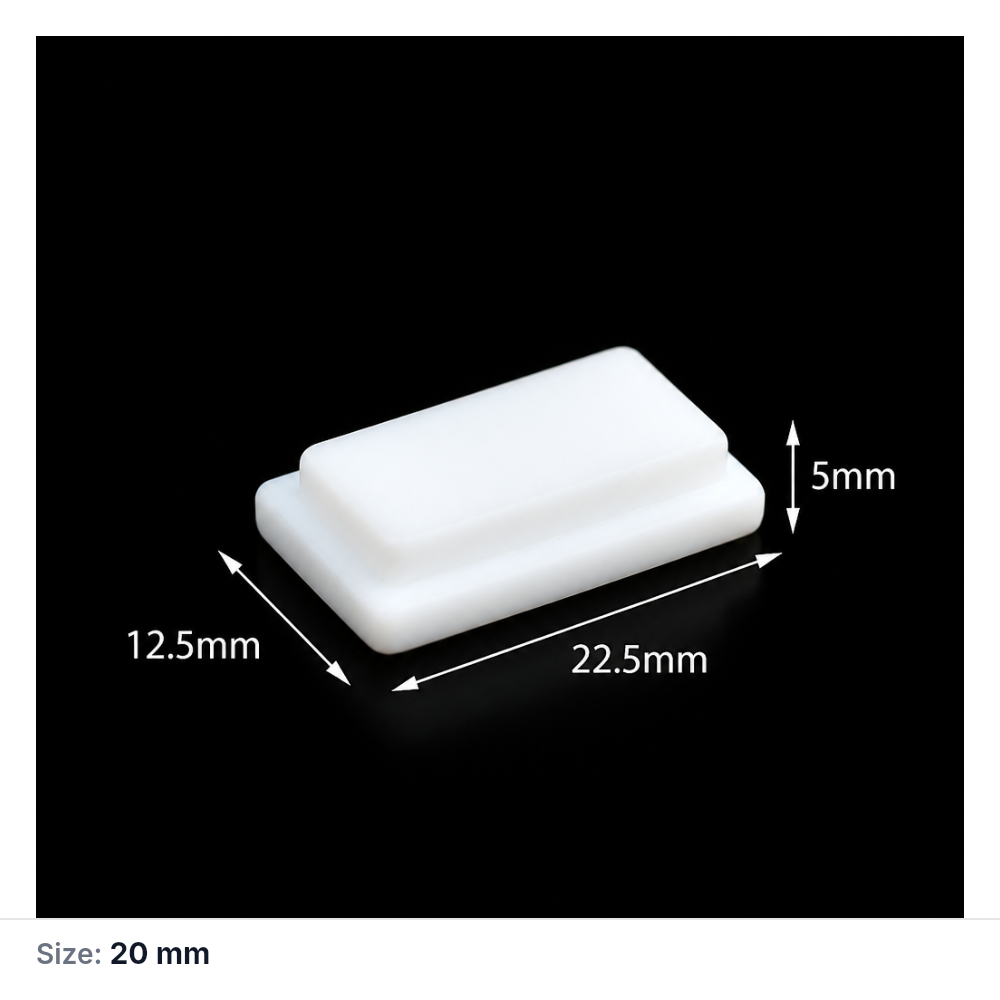

Structure and dimensions

Compare the closure dimensions with the seating surface of your cell.
Compare the closure dimensions with the seating surface of your cell.Open image ↗

Using this accessory

Place the lid gently on a clean, supported cuvette. During filling, rinsing or sampling, lift it clear of the rim and set it on a clean surface before refitting. Keep sample residue and debris away from the contact surfaces.

First-use check

Inspect the lid and cuvette rim for residue, edge damage or distortion. Trial-fit the lid on a clean, empty cell; it should sit evenly without force.

Fit and installation

Compare your existing lid or cuvette drawing with the outer dimensions and the raised section shown in the image. The raised-section dimensions and insertion depth are not specified. Path length alone does not guarantee that another cell uses the same closure seat.

The 5 mm value is the overall lid height, not a guaranteed 5 mm increase in assembled height. Assess clearance with the lid seated, including space to lift it past nearby clamps or compartment covers.

English selection reference
Selection reference ↗

Handling and cleaning

Use a non-abrasive cleaning method suitable for PTFE, the cuvette body and your sample. Chemical suitability depends on the complete assembly and exposure conditions. No leak-tightness or pressure rating is specified for this lid.

Included with this option

One PTFE cuvette lid. The cuvette is sold separately.

Availability and ordering

Order directly, or ask us about current availability and dispatch. Preparation time is separate from transit and customs clearance; ask before checkout if you need a particular delivery date.

Need a different fit?

For a different fit, send your cuvette SKU and mating dimensions or a drawing.
