(MQACC042) PTFE Square Lid for 50 mm Path Sample Cells

Weight50 g
SKU: MQACC042

$35.00

In Stock

Square PTFE lid for matching 50 mm path sample cells, with a 54 × 54 mm outer flange and 49 × 49 mm raised square. The two square profiles distinguish this cover from narrow rectangular lids. One lid supplied; cell sold separately.

In Stock
Add to Wishlist
Add to Wishlist
Shipping and order support
  • Worldwide delivery to door service, hassle free shipping
  • Contact us for quotation of bulk purchase discount
  • Custom design. Send us graphic drawing for solution
  • POs for Academics. Pay after delivery.
  • Availability and dispatch timing vary by item and quantity. Contact us to confirm timing for your order.

Description

MQACC042 is a square PTFE lid for the corresponding 50 mm path sample-cell format. A 54 × 54 mm outer flange surrounds a smaller 49 × 49 mm raised square, giving you two distinct surfaces to compare with an existing lid or cell drawing.

View the English selection reference. Also available in the product gallery.

Closure Type
Lid

Selection Specifications

Product KindAccessory
Compatible Cuvette Path Length50 mm
Base Dimensions54 × 54 mm
Closure TypeLid
Closure MaterialPTFE
Pack Quantity1 Piece
Sales Unitpiece
Package Contents1 × Cuvette cap/lid

Choose this option

Choose this square format when the cell has a broad square top, rather than the narrow rectangular opening used by a different cuvette style. The outer flange lies around the raised section; matching both areas is more useful than choosing by the 50 mm path designation alone.

What makes this option different

  • 54 × 54 mm flange: identifies the wider outer footprint and the space it occupies around the cell top.
  • 49 × 49 mm raised square: identifies the central profile to compare with the receiving opening or recess.
  • Separate 3 mm and 2 mm profile labels: use the individual dimensions shown on the photograph for shape comparison.
  • One separate PTFE lid: a replacement or spare for a cell with the corresponding top geometry.

Structure and dimensions

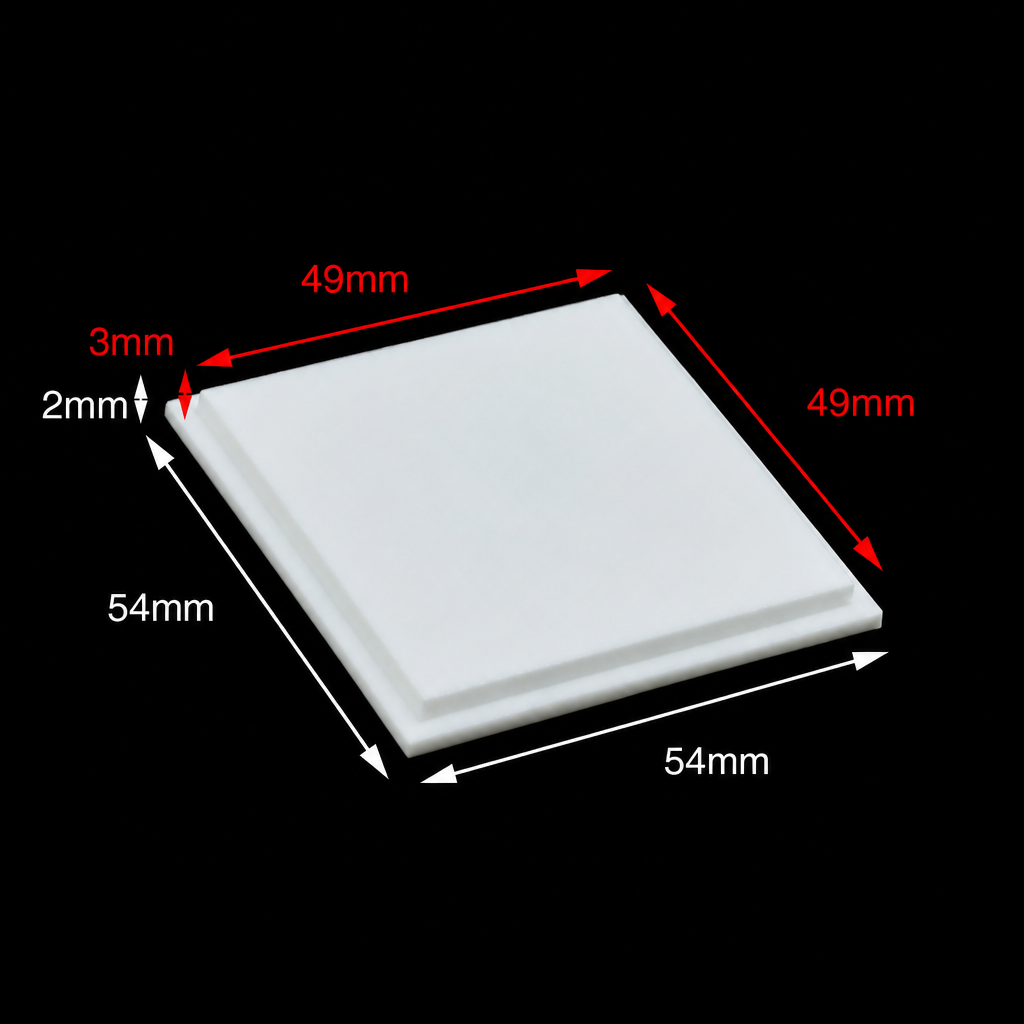

Compare the closure dimensions with the seating surface of your cell.
Compare the closure dimensions with the seating surface of your cell.Open image ↗

Using this accessory

Support the cell and place the lid gently on clean mating surfaces. Lift it clear during filling or sample changes, then set it on a clean surface before refitting. The wider flange gives a visible edge around the central raised section when handling the lid.

First-use check

Inspect the lid and cell rim for residue, edge damage or distortion. Trial-fit on a clean, empty cell; the lid should sit evenly and lift off without force.

Fit and installation

Compare the outer flange, raised square and available clearance with your original part. The 50 mm designation describes the intended cell path, not a dimension of the lid. The separate 3 mm and 2 mm labels do not specify insertion depth or the height of a complete cuvette with the lid fitted.

English selection reference
Selection reference ↗

Handling and cleaning

Use a non-abrasive cleaning method suitable for PTFE, the cell body and your sample. Check chemical and temperature suitability for the complete assembly. No leak-tightness or pressure rating is specified for this separate lid.

Included with this option

One PTFE cuvette lid. The cuvette is sold separately.

Availability and ordering

Order directly, or ask us about current availability and dispatch. Preparation time is separate from transit and customs clearance; ask before checkout if you need a particular delivery date.

Need a different fit?

For a different fit, send your cuvette SKU and mating dimensions or a drawing.
