(MQGSC008) Short-Path Cuvette Holder, 12.5 × 12.5 mm Footprint

Weight50 g
SKU: MQGSC008

$132.00

In Stock

Separate short-path cuvette holder with a 12.5 × 12.5 mm outer footprint, 50 mm overall height and an open upright frame. The internal curved retaining strip supports a matching cell while the side openings leave the optical region accessible. One holder supplied; cuvette sold separately.

In Stock
Add to Wishlist
Add to Wishlist
Shipping and order support
  • Worldwide delivery to door service, hassle free shipping
  • Contact us for quotation of bulk purchase discount
  • Custom design. Send us graphic drawing for solution
  • POs for Academics. Pay after delivery.
  • Availability and dispatch timing vary by item and quantity. Contact us to confirm timing for your order.

Description

MQGSC008 is a separate short-path cuvette holder for setups that use an external support frame around the cell. Its 12.5 × 12.5 mm footprint and 50 mm overall height help you plan the space the holder occupies in your fixture or sample area. This listing is for the holder only, supplied as one piece.

External Dimensions
12.5 × 12.5 × 50 mm
Pack Quantity
1 Piece

Selection Specifications

Product KindAccessory
External Dimensions12.5 × 12.5 × 50 mm
Body Height50 mm
Base Dimensions12.5 × 12.5 mm
Pack Quantity1 Piece
Package Contents1 × Cuvette holder

Choose this option

Choose MQGSC008 when your short-path cell uses a separate upright holder and you need this compact external format. The key point is mechanical fit around the cell assembly: the square base helps with placement, while the 50 mm height helps you check vertical clearance in the working area.

What makes this option different

  • Separate cuvette holder accessory, not a complete optical cell.
  • 12.5 × 12.5 mm square footprint for compact bench or compartment planning.
  • 50 mm overall holder height in an upright frame format.
  • Internal curved retaining strip forms part of the cell-support area.
  • Sold as 1 holder per piece; cuvette sold separately.

Structure and dimensions

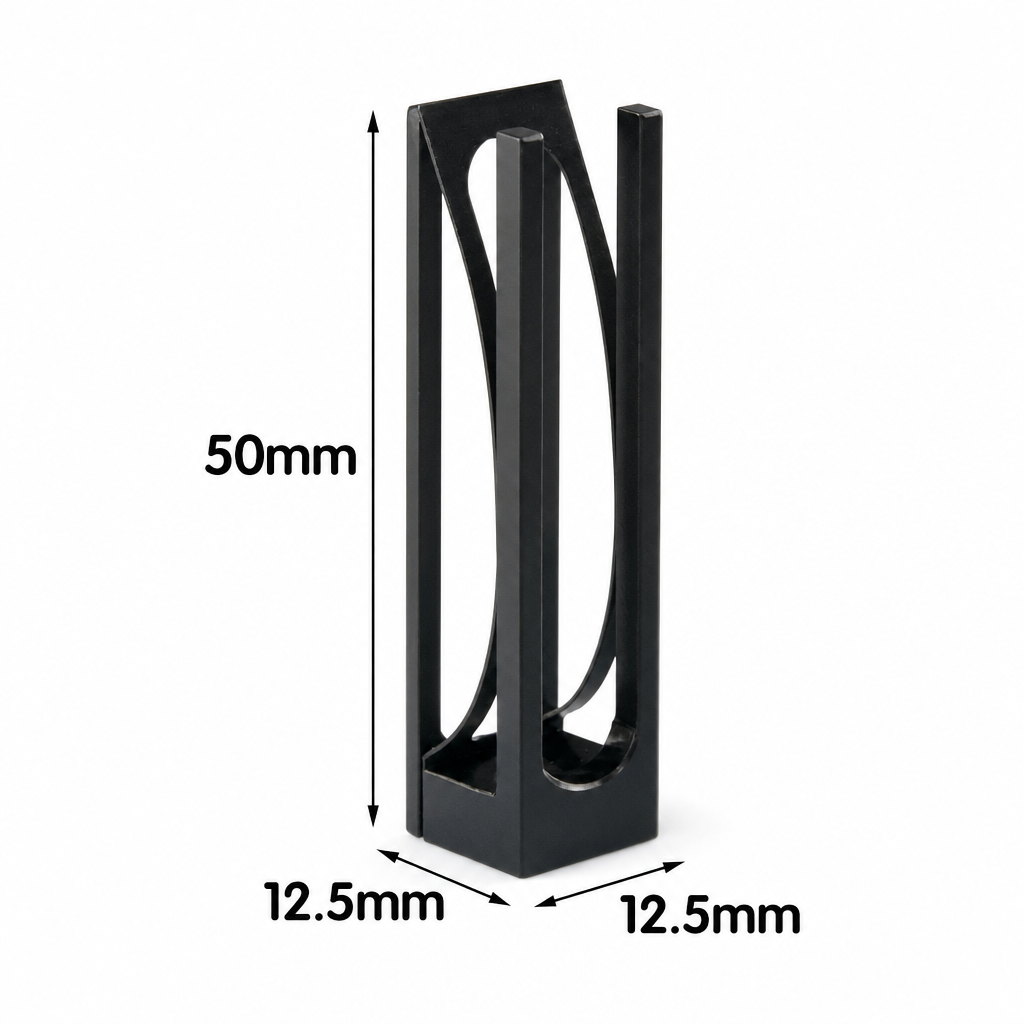

Holder layout and cell-support openings.
Holder layout and cell-support openings.Open image ↗

Using this accessory

Install the holder as the support frame for the intended short-path cell arrangement. Before routine use, check that the cell sits securely in the supporting area and that the holder does not obstruct the optical region your setup needs to keep clear.

If you are replacing an existing holder, compare the supported cell and contact areas as well as the outside dimensions. The holder body dimensions do not define the cuvette optical path, beam height or receiving opening size.

First-use check

  1. Inspect the frame and contact areas for damage, burrs or residue.
  2. Check that the 12.5 × 12.5 mm base and 50 mm height fit the available space.
  3. Test the cell support and optical clearance before measurement.

Fit and installation

View the English selection reference.

The stated dimensions describe the external holder body. They are useful for checking available space in a fixture, holder bay or instrument compartment, but they do not establish a specific cuvette match on their own. If your setup depends on the receiving opening, support profile or beam-center position, send your cell drawing and fixture details before ordering.

English selection reference
Selection reference ↗

Handling and cleaning

Keep the holder clean so residue is not transferred to the cell during installation or removal. Use a gentle cleaning method suitable for the actual holder material and your working conditions. Material-specific chemical and temperature limits are not specified for this accessory.

Included with this option

1 MQGSC008 short-path cuvette holder. The sale item is the holder only.

Availability and ordering

Order this listed option directly, or contact us to check current availability and dispatch timing. For a required delivery date, please ask before checkout. Preparation time is separate from carrier transit and customs clearance.

Need a different fit?

Send a product-selection enquiry with SKU MQGSC008, your cuvette dimensions, mounting requirements and the available instrument space.
