(MQQCU014) Quartz Standard Cuvette, 5 mm path, 0.5 mm Optical Walls, Pack of 2
Description

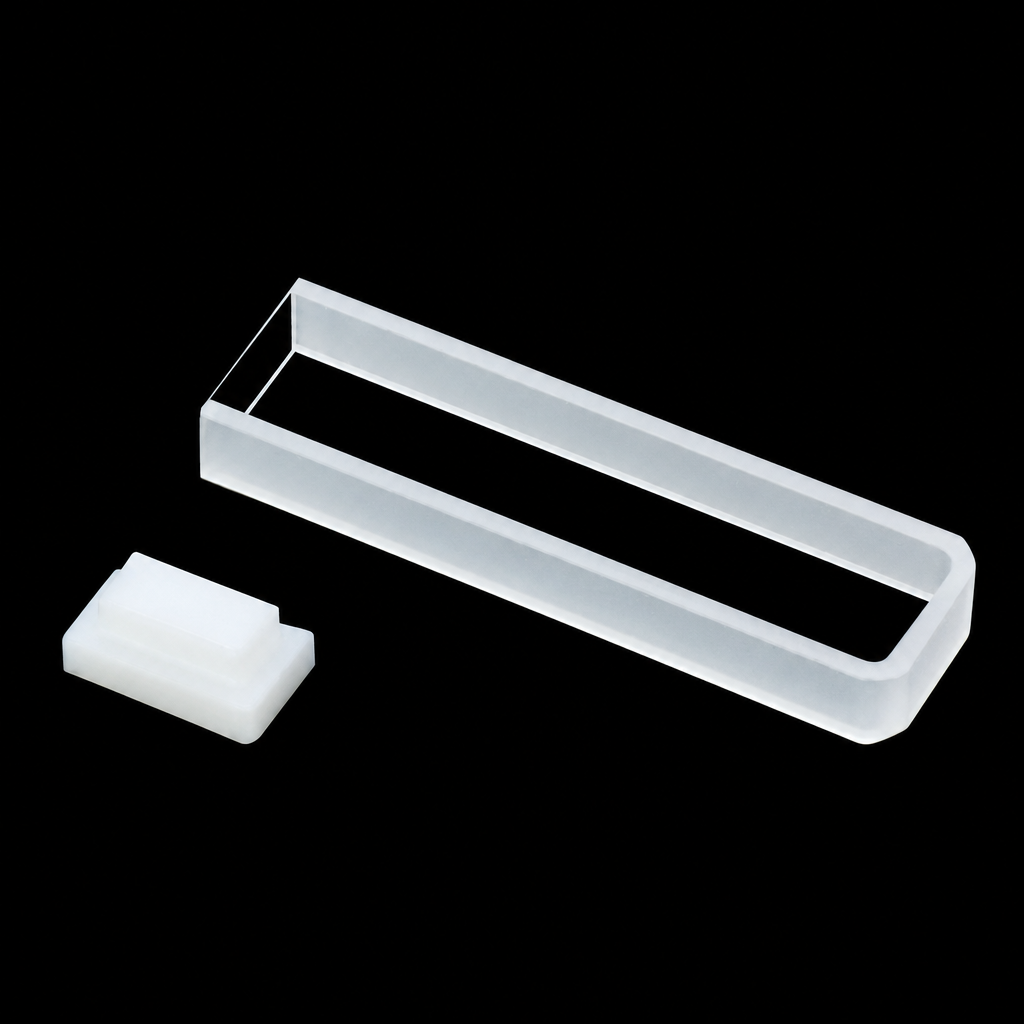

MQQCU014 is a JGS1 quartz standard cuvette for UV/Vis spectroscopy with a 5 mm optical path and Two-Way Light layout. The open-top body lets you fill the cell directly, while the flat lid covers the opening during routine handling. With a 1750 µL nominal capacity and a slim rectangular body, this option suits methods that need a shorter path in a narrower cell format.
- Path Length
- 5 mm
- Sample Volume (Nominal)
- 1.75 mL
- Opening Configuration
- Open Top
Selection Specifications
| Product Kind | Cuvette |
|---|---|
| Cell Type | Standard Cuvette |
| Measurement Mode | UV/Vis Spectroscopy |
| Path Length | 5 mm |
| Light Transmission Configuration | Two-Way Light |
| Wavelength Range — Lower Limit | 200 nm |
| Wavelength Range — Upper Limit | 2500 nm |
| Sample Volume (Nominal) | 1.75 mL |

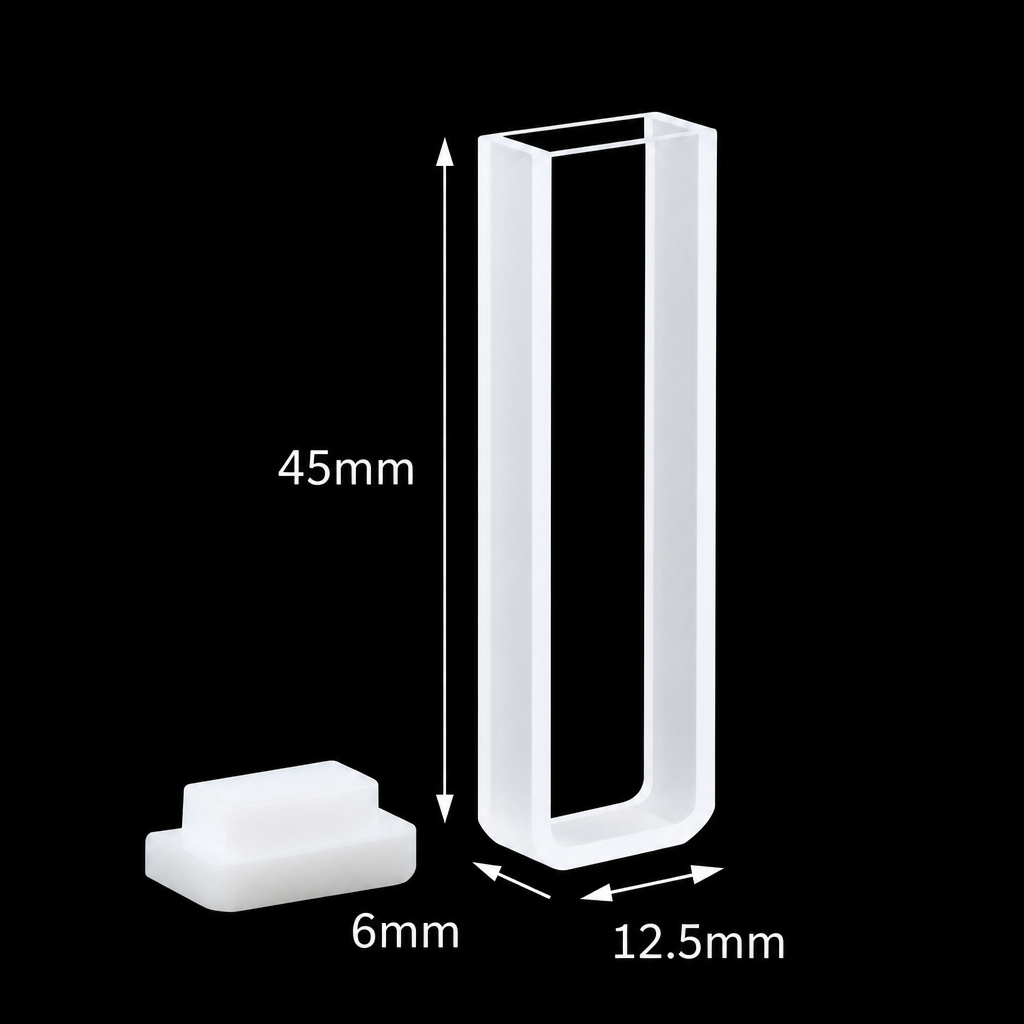

| External Dimensions | 12.5 × 6 × 45 mm |
| Body Height | 45 mm |
| Base Dimensions | 12.5 × 6 mm |
| Material | Quartz |
| Material Grade | JGS1 |
| Closure Type | Flat Lid |
| Closure Included | Yes |
| Opening Configuration | Open Top |
| Sales Unit | pack of 2 |
| Package Contents | 2 × Quartz Standard Cuvette; Accompanying closures |
Choose this option
Choose MQQCU014 when your method calls for a 5 mm path and you want direct top access for filling and cleaning. The quartz body is specified for UV/Vis use from 200 to 2500 nm, and the supplied flat lids let you cover the opening after filling without changing the basic open-top handling style.
What makes this option different
- 5 mm optical path: for methods specified for this short fixed transmission distance.
- Two-Way Light layout: intended for transmission measurements through the main opposing optical faces.
- Open top with flat lid: direct access for pipetting, rinsing and inspection before the cell is covered.
- 1750 µL nominal capacity: a compact sample region for this cell geometry, while nominal volume is not the same as minimum working fill.
- Fused integrated construction: the joined body is rinsed as an assembly through the open top; the flat lid can be lifted away for pipette access.
- Slim 12.5 × 6 mm body, 45 mm height: useful dimensions to check against holder width, slot depth and vertical clearance.
- Pack of 2: the listed price covers two quartz cuvettes with accompanying closures.
Using this cell
Fill the cell from the top opening and place the flat lid after filling when you want the chamber covered during routine handling. Keep the optical faces clean and orient the cell the same way for blank and sample readings.
Before measurement, check that the liquid fully covers the part of the chamber used by your instrument beam. Remove visible bubbles from the optical path and wipe the outside faces carefully so droplets or fingerprints do not affect the reading.
First-use check
- Inspect the optical faces, top opening and lids for chips, dust or handling marks.
- Place each cell in your holder and confirm stable seating and correct beam direction through the intended faces.
- Run a blank in the same orientation you plan to use for the sample.
Fit and optical alignment
The external body size is 12.5 × 6 × 45 mm, so this cuvette can be useful where a narrower rectangular body helps with holder fit or side clearance. The 5 mm path is the optical dimension through the measurement direction; the slim body dimensions are separate fit checks and should be matched to your holder or slot.
Z Height is not established for this SKU, so beam-center fit should be checked from your holder drawing or an existing cell reference if that dimension is critical. View the English selection reference.

Solvents and cleaning
Keep hydrofluoric acid away from quartz. Avoid hot strong alkalis and abrasive cleaning methods.
Chemical compatibility for the complete assembled cell is not established here, so check your actual sample and cleaning conditions if they involve organic solvents, aggressive solutions, elevated temperature or long contact time. Clean the optical faces gently with non-abrasive optical tissue.
Included with this option
2 quartz standard cuvettes and accompanying closures. The listed price is for the pack of 2.
Availability and ordering
Order this specification directly, or contact us to check current availability and dispatch timing. If temporarily unavailable, additional preparation or production time may be needed. For a required delivery date, contact us before checkout; preparation or production is separate from carrier transit and customs clearance.
Discuss a custom version
We coordinate custom JGS1 quartz production for requirements involving path length, capacity, external dimensions, optical windows, Z Height, closures and tolerance needs. Send your drawing or holder details, sample conditions, required quantity and delivery target through our contact page, and we can review a suitable custom option.
Additional information
| Weight | 100 g |
|---|
