(MQQCU018) Quartz Standard Cuvette, 30 mm path, 6 mL nominal capacity, Long-Path Chamber
Description
MQQCU018 is a JGS1 quartz standard cuvette for UV/Vis measurements that use a 30 mm optical path in a straight two-window layout. Its open top gives direct access for filling and rinsing, while the 6 mL nominal capacity and longer 32.5 × 12.5 × 45 mm body help when your setup needs a long-path upright cell rather than a shorter compact format. This listing is for 1 piece.
- Path Length
- 30 mm
- Sample Volume (Nominal)
- 6 mL
- Opening Configuration
- Open Top
Selection Specifications
| Product Kind | Cuvette |
|---|---|
| Cell Type | Standard Cuvette |
| Measurement Mode | UV/Vis Spectroscopy |
| Path Length | 30 mm |
| Light Transmission Configuration | Two-Way Light |
| Wavelength Range — Lower Limit | 200 nm |
| Wavelength Range — Upper Limit | 2500 nm |
| Sample Volume (Nominal) | 6 mL |
| External Dimensions | 32.5 × 12.5 × 45 mm |
| Body Height | 45 mm |
| Base Dimensions | 32.5 × 12.5 mm |
| Material | Quartz |
| Material Grade | JGS1 |
| Opening Configuration | Open Top |
| Pack Quantity | 1 Piece |
| Package Contents | 1 × Quartz Standard Cuvette |
Choose this option
Choose MQQCU018 when your method calls for a 30 mm transmission path and you want direct top access to the sample chamber. The open-top format is straightforward for manual filling, inspection and rinsing, and the supplier-described fused-integrated construction is suited to routine assembled handling of the cell body as one complete cuvette rather than a removable-plate assembly.
What makes this option different
- 30 mm optical path for longer-path UV/Vis transmission measurements in a standard upright cell format.
- Open-top access lets you fill, empty and visually check the sample directly from above.
- Two-Way Light layout supports a defined straight-through beam path through opposite optical faces.
- 6 mL nominal capacity suits methods that use a larger filled chamber in a long-path cell.
- 32.5 × 12.5 × 45 mm outer body gives a longer front-to-back envelope than a square-body cuvette, so holder clearance matters.
- Fused-integrated construction means the cuvette is handled as a fixed assembled body for normal filling, rinsing and placement, without a separate cover plate to fit before measurement.

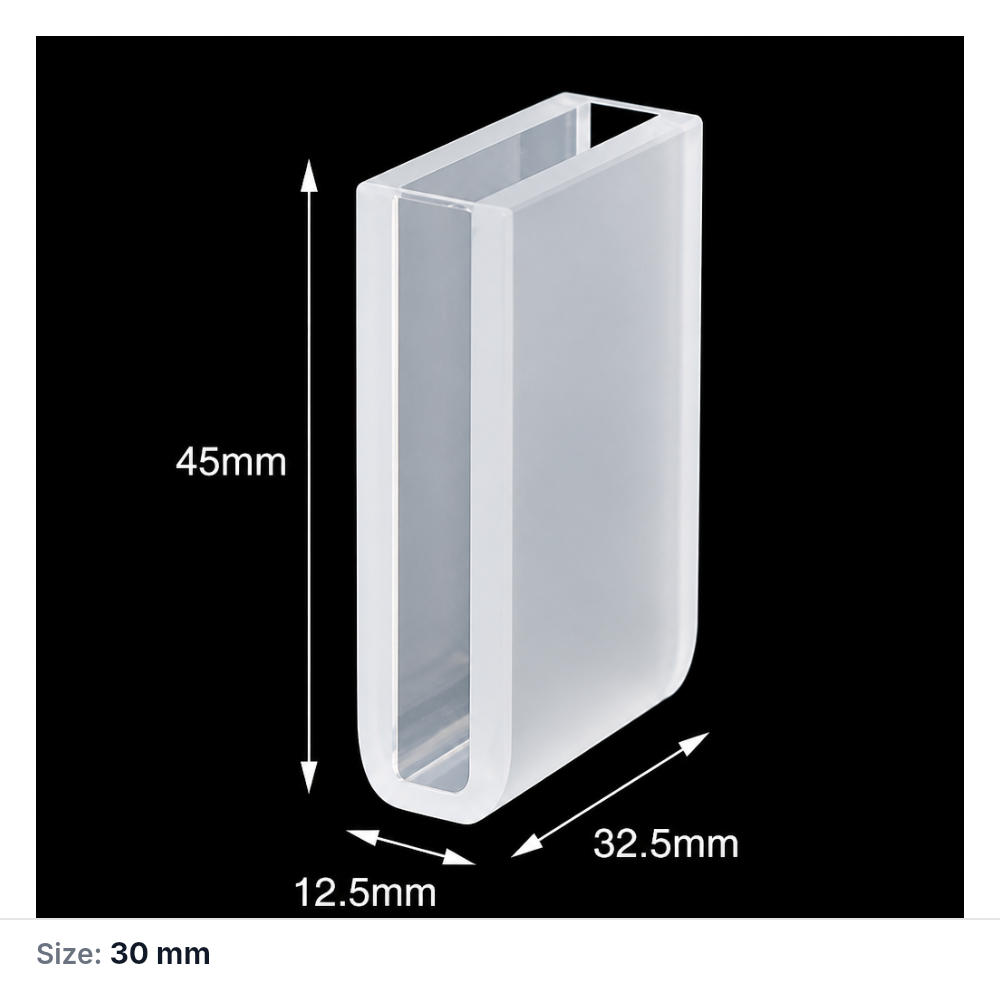

Structure and dimensions

Using this cell
Fill from the open top so the liquid covers the intended beam region, then remove visible bubbles before measurement. For blank and sample runs, keep the same orientation so the beam passes through the same pair of optical faces each time.
The stated 6 mL is the nominal capacity of the cell, not a minimum working volume. If your method uses partial filling or a low liquid level, check beam coverage in your own instrument before routine use.
First-use check
- Inspect the optical faces, rim and corners for chips, scratches or residue.
- Place the cell in your holder and confirm that the beam passes through the intended two opposite faces.
- Fill with a suitable blank and check that the illuminated region is fully covered in your normal measurement position.
Fit and optical alignment
The outer body is 32.5 mm long, 12.5 mm wide and 45 mm high. That longer body shape is useful for this path length, but it also means you should check front-to-back holder space and any nearby clamps or supports instead of assuming fit from a square cuvette footprint.
This SKU is for UV/Vis use with a Two-Way Light geometry. Z Height is not listed, so instruments with a fixed beam position should be checked by actual holder and beam alignment rather than by overall height alone.
View the English selection reference.

Solvents and cleaning
Quartz cells should not be used with hydrofluoric acid. Avoid hot strong alkalis and abrasive cleaning methods.
The full chemical limits for this exact assembly are not listed for this SKU. If your samples or cleaning routine involve organic solvents, aggressive reagents, elevated temperature or long soaking times, review the conditions before use. For general fabrication background, see MQ Cuvette Fabrication Glossary.
Included with this option
1 quartz standard cuvette, SKU MQQCU018. The listed price is for one piece.
Availability and ordering
Order this specification directly, or contact us to check current availability and dispatch timing. If temporarily unavailable, additional preparation or production time may be needed. For a required delivery date, contact us before checkout; preparation or production is separate from carrier transit and customs clearance.
Discuss a custom version
If you need a different outer size, path length or chamber format, send your holder details or a dimensioned sketch with the required optical path, sample conditions and quantity. Send a product-selection enquiry with SKU MQQCU018 and your delivery destination.
Additional information
| Weight | 90 g |
|---|
