(MQQFC077) Custom Long-Path Quartz Flow Cell, Drawing-Based Configuration

Weight250 g
SKU: MQQFC077

$6.00

In Stock

MQQFC077 is a custom long-path quartz flow cell for UV/Vis projects where the final path length, body geometry and connection layout need to follow your drawing. This sale record is for 1 custom cell, with the finished configuration defined by the agreed drawing and quotation.

In Stock
Add to Wishlist
Add to Wishlist
Shipping and order support
  • Worldwide delivery to door service, hassle free shipping
  • Contact us for quotation of bulk purchase discount
  • Custom design. Send us graphic drawing for solution
  • POs for Academics. Pay after delivery.
  • Availability and dispatch timing vary by item and quantity. Contact us to confirm timing for your order.

Description

MQQFC077 is the drawing-based option in this long-path quartz flow-cell family. It is intended for UV/Vis projects where a fixed catalogue geometry is not enough and the flow cell needs to match your holder, optical space or fluid connection plan.

This option works best when the important dimensions are already known or can be shown on a sketch or drawing. Instead of choosing a fixed path length and fixed envelope from the product page, you define the arrangement that your instrument or assembly actually needs.

Cell Type
Flow Cell

Selection Specifications

Product KindFlow Cell
Cell TypeFlow Cell
Measurement ModeUV/Vis Spectroscopy
MaterialQuartz
Port Count2
Pack Quantity1 Piece
Package Contents1 × Custom Long-Path Quartz Flow Cell

Choose this option

Choose MQQFC077 when your project needs a long-path quartz flow cell that must be built around your own drawing rather than a standard listed layout. It is especially useful for replacement work, retrofit installations and custom holders where beam position, connection direction or mounting space should be reviewed before production.

What makes this option different

  • Drawing-based configuration so the final geometry is defined for your project rather than fixed on the page.
  • Intended for UV/Vis use within this long-path quartz flow-cell family.
  • Two end connections are shown in the family example style, but the final connection layout belongs to the agreed design.
  • Sold as one custom cell with the finished specification set by drawing and quotation.

Using this cell

Use the finished cell according to the drawing approved for your project. In practice, that means deciding the optical direction, connection arrangement and mounting approach at the design stage so the delivered part matches the way your system is assembled.

For long-path flow work, plan tubing support, flushing approach and bubble control early. The installed assembly should support the cell body properly rather than leaving projecting connections to carry the mechanical load.

For use in a pressurized circuit, specify the operating conditions and confirm the pressure limit for the finished design before routine use.

First-use check

  1. Compare the delivered cell with the approved drawing before installation.
  2. Check holder fit, tubing access and beam alignment with a suitable blank.
  3. Run an initial flush and confirm the assembled system behaves as expected under your operating conditions.

Fit and optical alignment

View the English selection reference.

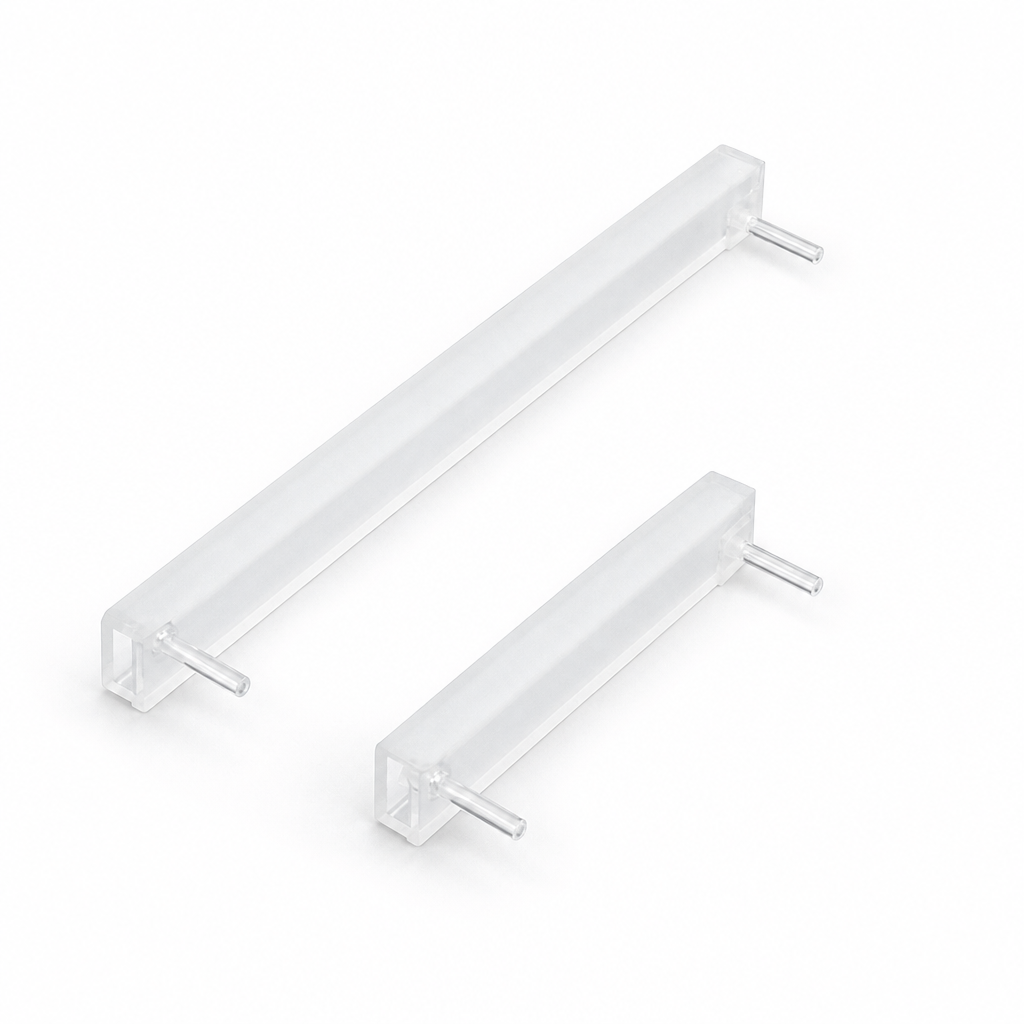

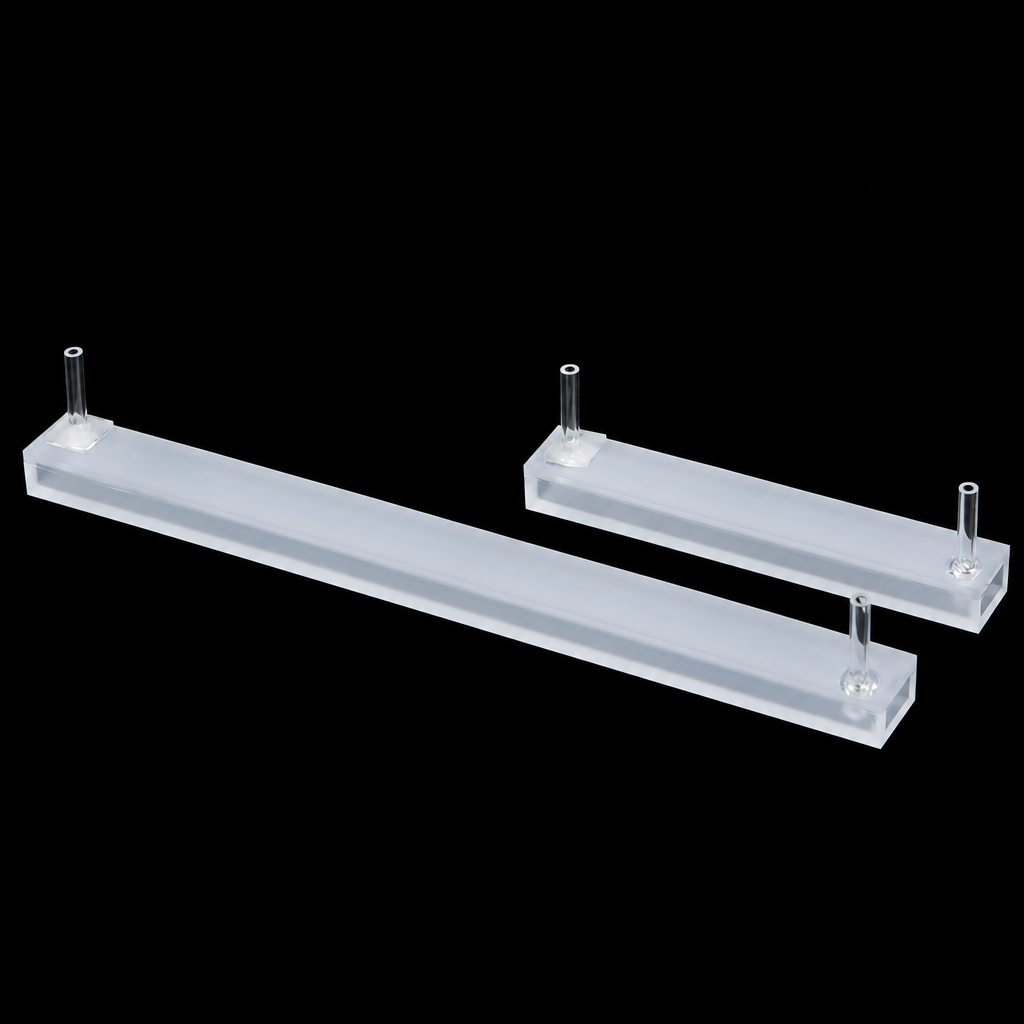

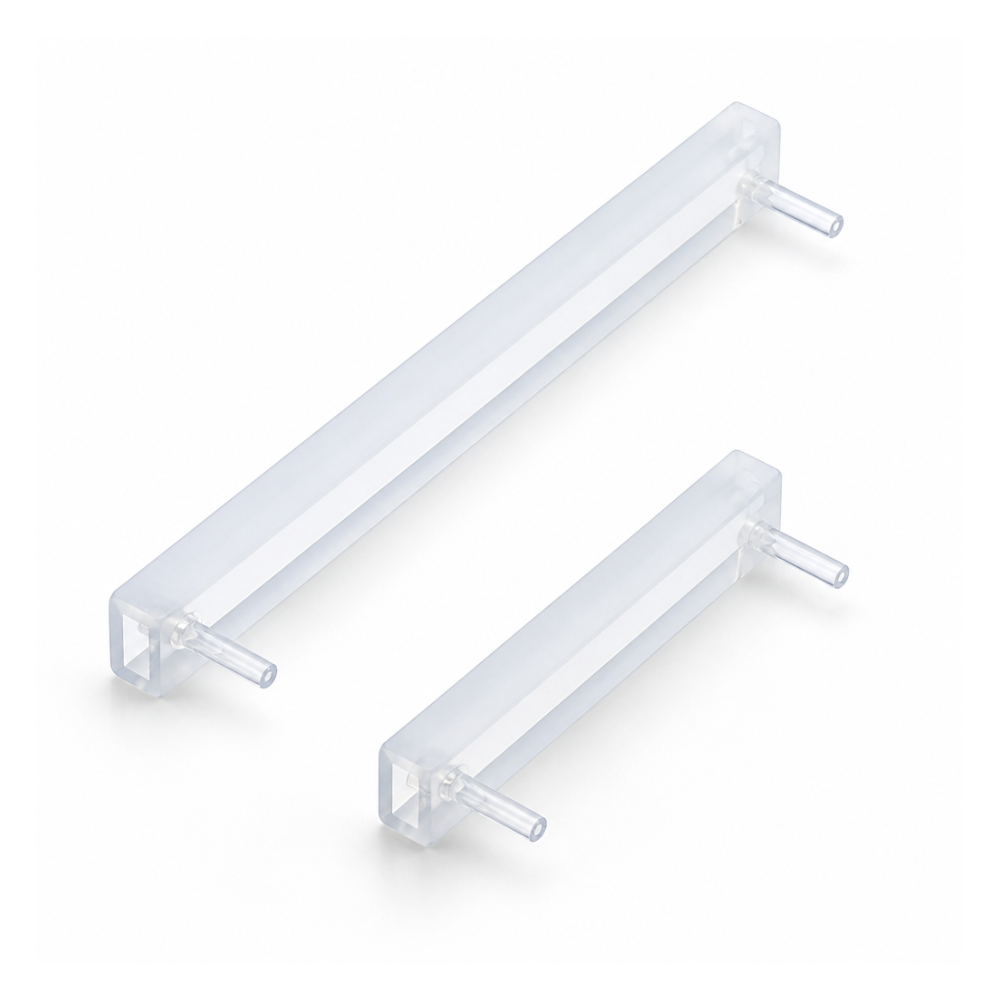

The family example images show a general style only. Specify the optical path, Z Height, tube sizes, material grade, fabrication method and full outside dimensions in your drawing; the finished cell will be defined by the agreed design.

If beam-center height, mounting clearance or connection spacing controls fit in your instrument, include those dimensions directly in your enquiry. That gives a more useful basis for quotation and production than trying to adapt an assumed standard outline later.

English selection reference
Selection reference ↗

Solvents and cleaning

Solvent suitability depends on the final construction and complete assembled cell, not on the family name alone. If your method involves organic solvents, aggressive chemicals, elevated temperature or long contact time, include the liquid, concentration, temperature and exposure time in your enquiry so the design can be reviewed for that job.

Keep hydrofluoric acid away from quartz. Avoid hot strong alkalis and abrasive cleaning methods on quartz optical surfaces.

Included with this option

1 Custom Long-Path Quartz Flow Cell. The final configuration and included components are defined in the agreed drawing and quotation.

Availability and ordering

Order this specification directly, or contact us to check current availability and dispatch timing. If temporarily unavailable, additional preparation or production time may be needed. For a required delivery date, contact us before checkout; preparation or production is separate from carrier transit and customs clearance.

Discuss a custom version

Contact us with SKU MQQFC077 and send a dimensioned drawing or labelled sketch. Include the required optical path, beam position or Z Height if relevant, connection layout, sample conditions, quantity and any deadline that matters to your project.
