(MQQFC081) Quartz Flow Cell, 20 mm path, 10 mL nominal capacity, Broad Two-Face Chamber

Weight150 g
SKU: MQQFC081

$270.00

In Stock

MQQFC081 is a JGS1 quartz flow cell for UV/Vis work with a 20 mm optical path, a 10 mL nominal capacity and opposed 4 mm OD / 2 mm ID fluid tubes. Its broad internal chamber suits setups that need a longer path in a larger flowing sample region. Sold as 1 piece.

In Stock
Add to Wishlist
Add to Wishlist
SKU: MQQFC081 Categories: , , Tags: , ,
Shipping and order support
  • Worldwide delivery to door service, hassle free shipping
  • Contact us for quotation of bulk purchase discount
  • Custom design. Send us graphic drawing for solution
  • POs for Academics. Pay after delivery.
  • Availability and dispatch timing vary by item and quantity. Contact us to confirm timing for your order.

Description

MQQFC081 is a JGS1 quartz flow cell for UV/Vis setups built around a 20 mm optical path. It combines a broad 50 × 20 × 10 mm internal chamber, a 10 mL nominal capacity and opposed tube connections, so you can plan the optical path, body clearance and tubing route as one assembly. This sale option is for one cell.

Path Length
20 mm
Sample Volume (Nominal)
10 mL
Opening Configuration
Two Opposed Fluid Tubes

Selection Specifications

Product KindFlow Cell
Cell TypeFlow Cell
Measurement ModeUV/Vis Spectroscopy
Path Length20 mm
Light Transmission ConfigurationTwo-Way Light
Wavelength Range — Lower Limit200 nm
Wavelength Range — Upper Limit2500 nm
Sample Volume (Nominal)10 mL
External Dimensions86 × 22 × 12 mm
Cell Body Dimensions52 × 22 × 12 mm
Uncapped Cell Dimensions86 × 22 × 12 mm
External Dimensions ScopeUncapped Cell
Internal Dimensions50 × 20 × 10 mm
MaterialQuartz
Material GradeJGS1
Port Count2
Tube Outer Diameter (OD)4 mm
Tube Inner Diameter (ID)2 mm
Fabrication MethodMolded 83
Opening ConfigurationTwo Opposed Fluid Tubes
Port LayoutEnd/side connection at the left in the referenced original; Opposite end/side connection at the right in the referenced original
Pack Quantity1 Piece
Package Contents1 × Quartz Flow Cell

Choose this option

Choose MQQFC081 when your method needs a longer 20 mm absorption path in a broad flow-cell format rather than a narrow microchannel. The larger chamber is useful when your flow arrangement and rinse routine are already designed for a higher nominal cell volume, and the opposed tube layout keeps the fluid route straightforward across the cell body.

What makes this option different

  • 20 mm optical path for UV/Vis methods that require a longer through-beam path.
  • Broad internal chamber with 50 × 20 × 10 mm internal dimensions and 10 mL nominal capacity.
  • Two-Way Light layout for direct transmission through the selected optical faces.
  • Opposed 4 mm OD / 2 mm ID tubes for straight-through connection planning.

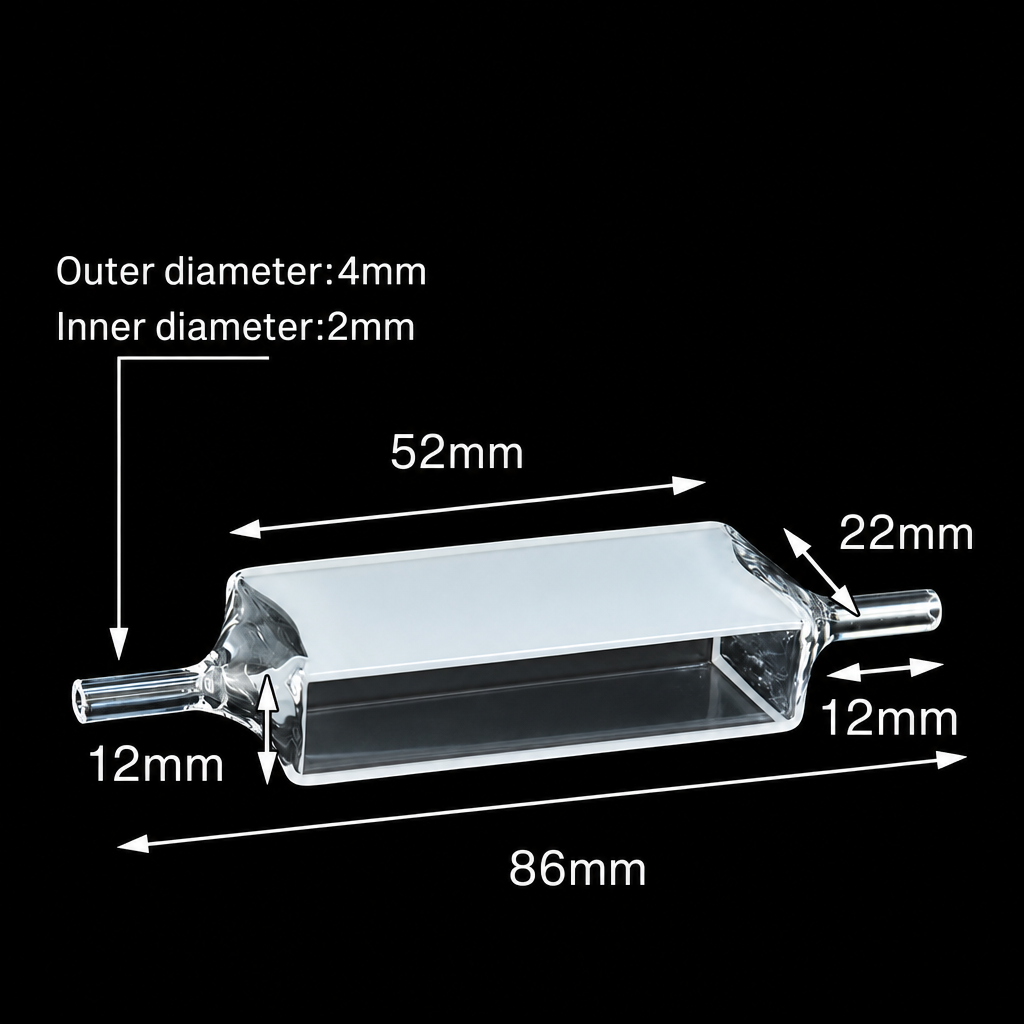

Structure and dimensions

Product dimensions for checking holder clearance and sample access.
Product dimensions for checking holder clearance and sample access.Open image ↗

Using this cell

Support the body during installation and connect the two tubes without twisting or pulling on the ends. Fill and rinse gradually so the chamber wets evenly, then clear visible bubbles from the illuminated region before measuring a blank or sample.

This is a larger-volume flow cell, so your actual exchange and rinse volume should be set by the full flow circuit and method. The 10 mL figure is the nominal cell capacity; it should not be treated as a minimum working volume.

First-use check

  1. Inspect the optical faces, chamber area and both tube ends for chips, residue or blockage.
  2. Mount the cell so the body is supported and the tube ends are not side-loaded.
  3. Prime with a suitable blank, remove bubbles, then repeat the baseline in the final installed position.

Fit and optical alignment

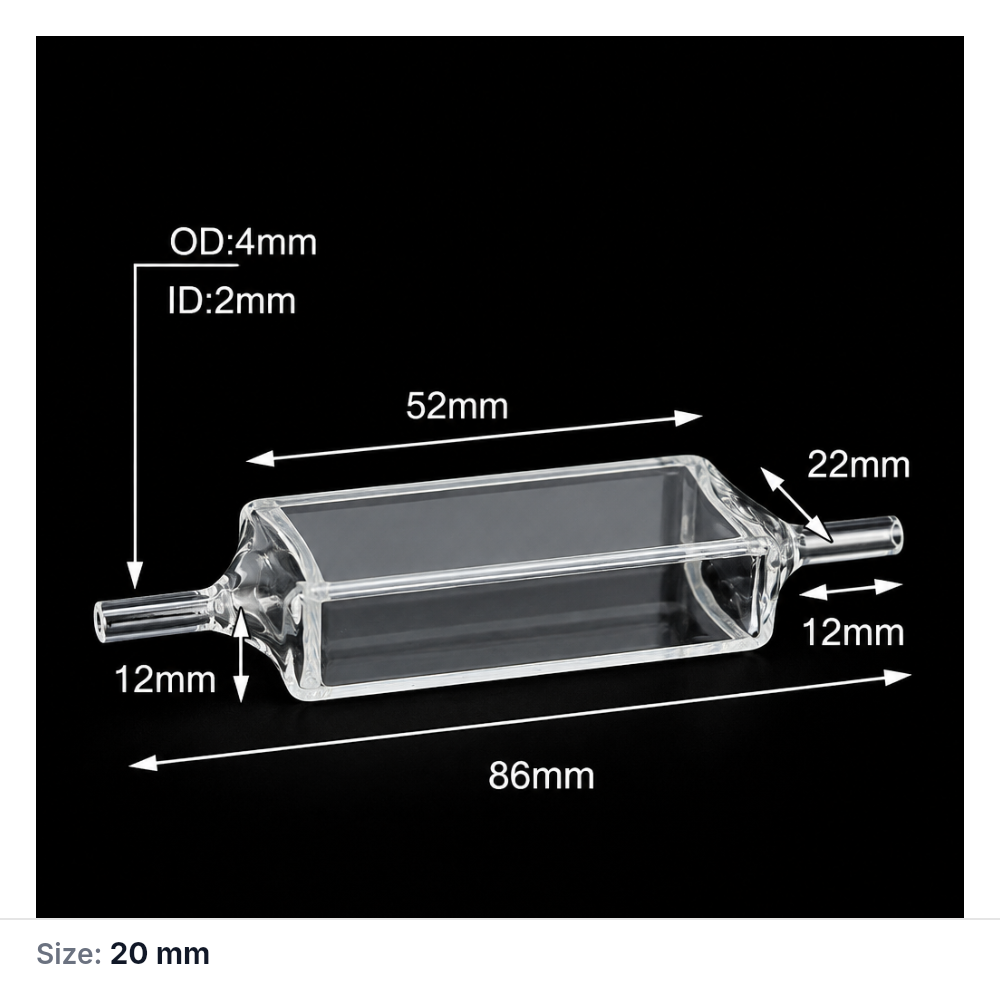

View the English selection reference.

The uncapped cell envelope is 86 × 22 × 12 mm, while the optical body itself is 52 × 22 × 12 mm. Check clearance for the full fixed length of the cell and leave additional room for tubing approach beyond both ends.

Z Height is not stated for this model. If your holder or instrument has a fixed optical centre, check beam position separately instead of relying on the external size alone.

English selection reference
Selection reference ↗

Solvents and cleaning

This cell is listed as Molded 83. In MQ selection use, this is commonly chosen for methods that may involve organic solvents or heated measurement conditions, provided the complete wetted assembly is suitable for the actual liquid, concentration, temperature and contact time.

Keep hydrofluoric acid away from quartz. Avoid hot strong alkalis and abrasive cleaners, and clean the optical faces gently with non-abrasive optical tissue or another suitable soft material.

Included with this option

1 Quartz Flow Cell. The listed price is for one piece.

Availability and ordering

Order this specification directly, or contact us to check current availability and dispatch timing. If temporarily unavailable, additional preparation or production time may be needed. For a required delivery date, contact us before checkout; preparation or production is separate from carrier transit and customs clearance.

Discuss a custom version

We also coordinate custom JGS1 quartz flow cells for changes to path length, chamber size, tube dimensions, body envelope and holder-related requirements. If you need a different connection layout or fit, send your drawing or labelled sketch together with sample conditions, quantity and timing through our contact page.
