(MQQSC023) Quartz Screw-Top Sample Cell, 7 mL, 20 mm Version, Electrode-Ready
$588.00

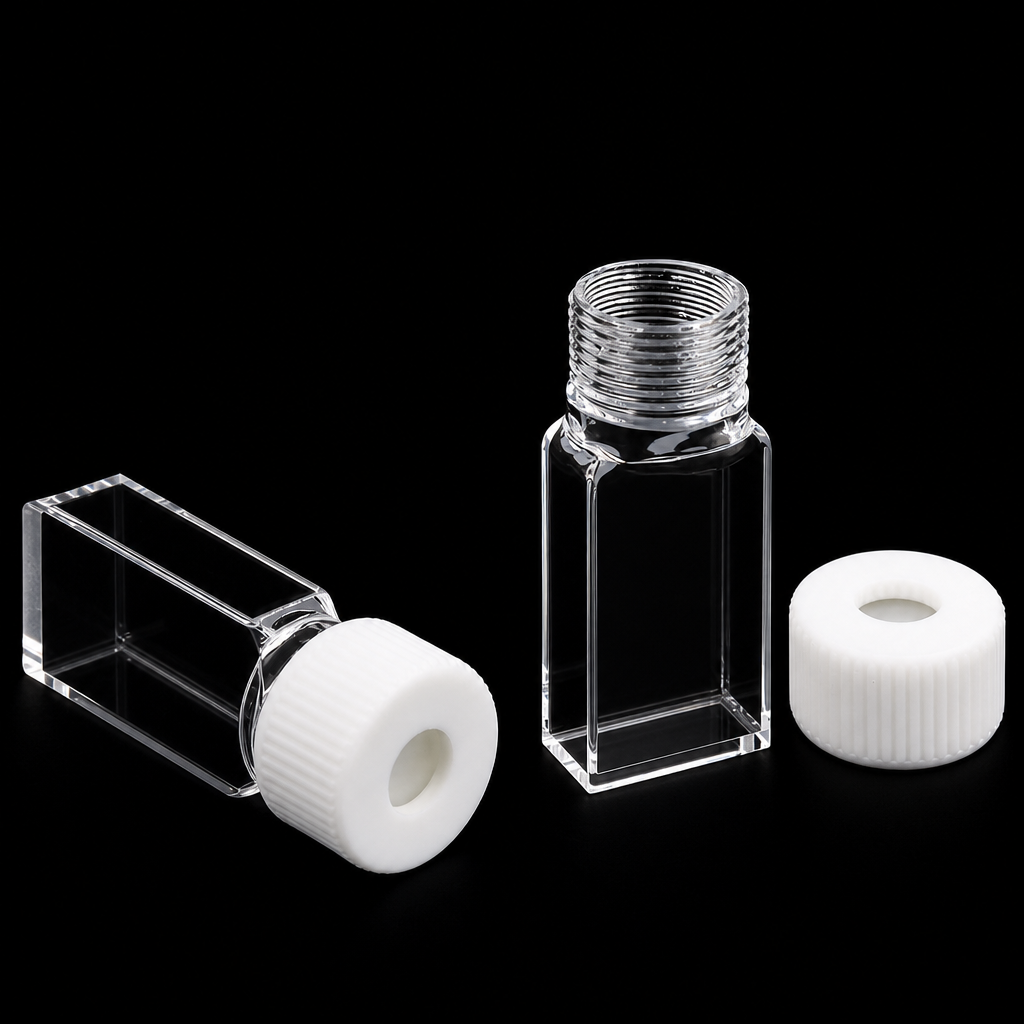

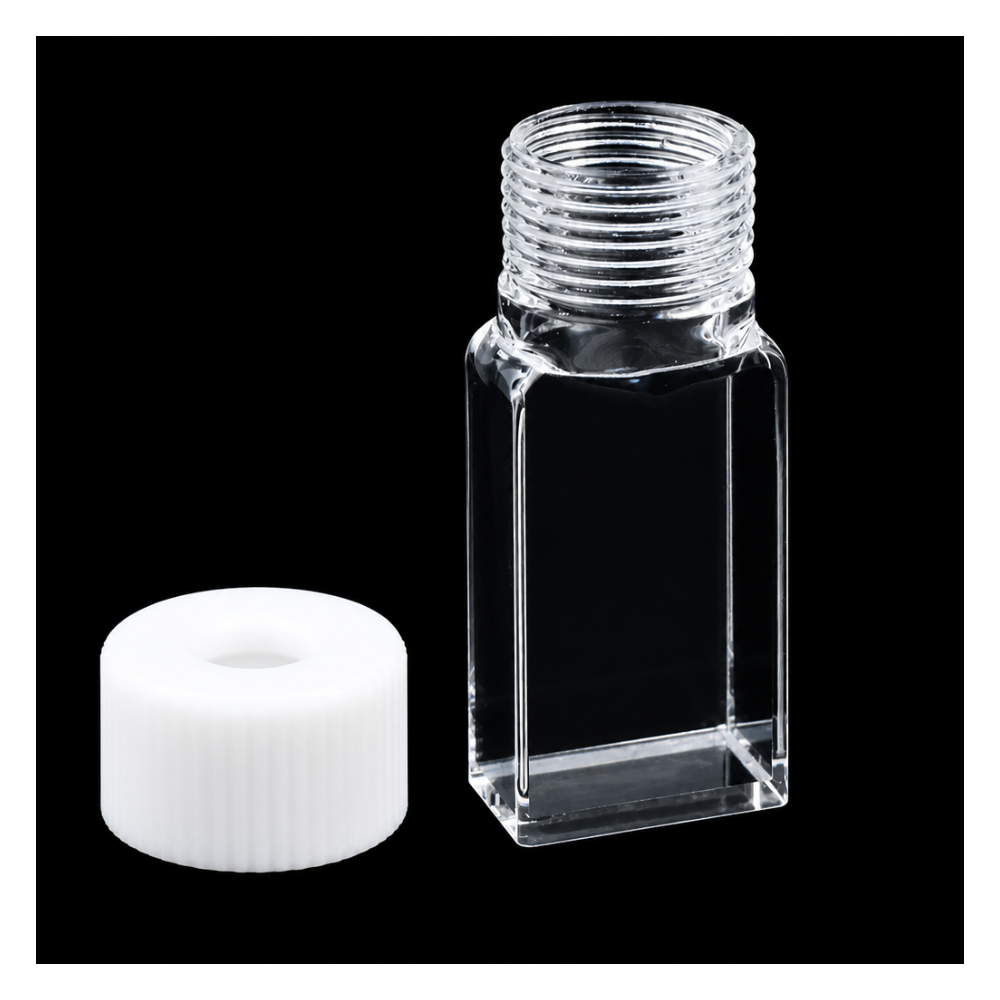

Quartz screw-top sample cell in the 20 mm version, with a 7 mL capacity. The source drawing marks a 20 mm outer diameter, 16 mm inner diameter and 76 mm overall height. Five-side light transmission; the lid supports sample injection and electrode insertion.
In Stock
Description
Product Overview
Screw-top quartz sample cell for electrode-based measurements.
Specifications
- Selected version: 20 mm
- Capacity: 7 mL
- Outer diameter: 20 mm
- Inner diameter: 16 mm
- Overall height: 76 mm
- Optical configuration: Five-side light transmission
- Thread: M20, as listed by the source
- Material: Quartz
- Construction: Optical-cement bonded, as listed by the source
The source describes a lid for sample injection and electrode insertion. Confirm the electrode and fixture dimensions for your setup.
Additional information
| Weight | 120 g |
|---|
