(MQQSC026) Quartz Screw-Top Cuvette, 4.5 mL, 10 mm Path, 60 mm Body Height
$210.00

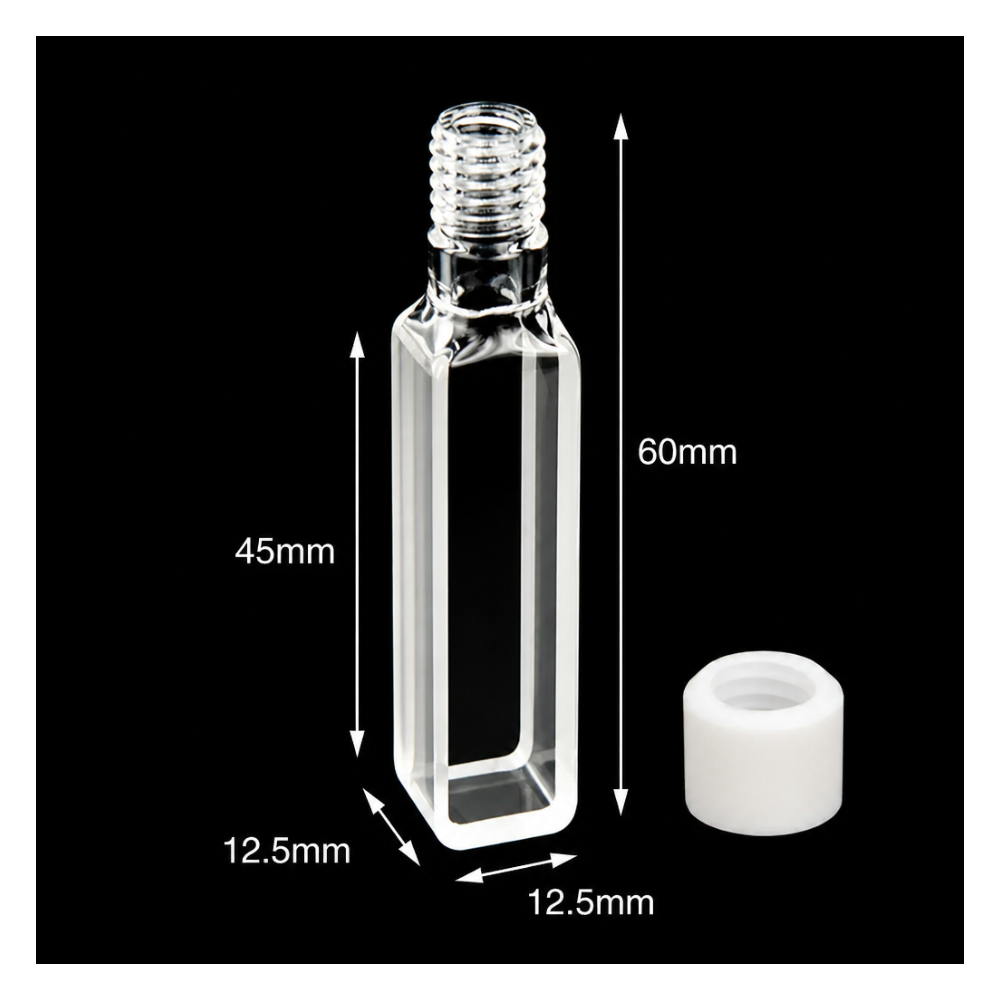

Quartz screw-top cuvette with a 10 mm optical path and 4.5 mL capacity. Body height: 60 mm; optical height: 45 mm; base: 12.5 × 12.5 mm. Overall size with the white cap: 12.5 × 12.5 × 64 mm. Two-side light transmission.
In Stock
Description
Product Overview
High-form quartz screw-top cuvette with a white cap.
Specifications
- Optical path length: 10 mm
- Capacity: 4.5 mL
- Body height: 60 mm
- Optical height: 45 mm
- Base dimensions: 12.5 × 12.5 mm
- Overall dimensions with cap: 12.5 × 12.5 × 64 mm
- Optical configuration: Two-side light transmission
- Thread: M10
- Construction: Optical-cement bonded, as listed by the source
- Material: Quartz
Source describes the cap as suitable for sample injection; confirm the arrangement required for your setup.
Additional information
| Weight | 100 g |
|---|
