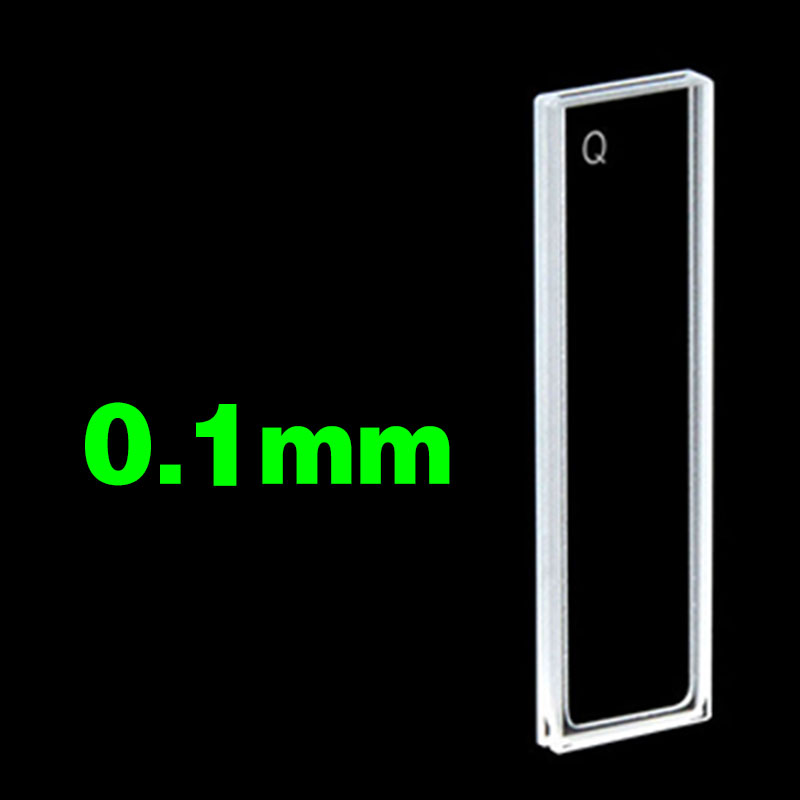

(C0.12CS) Quartz Standard Cuvette, 0.1 mm Path, 35 µL

Weight	30 g

SKU: C0.12CS

Original price was: $233.00.Current price is: $210.00.

In Stock

C0.12CS is a JGS1 quartz cuvette with a 0.1 mm optical path, 35 µL nominal capacity and Two-Way Light access for UV/Vis work. The open top provides direct access for filling and rinsing. No lid is included; use neutral sample solutions only.

In Stock

SKU: C0.12CS Categories: Cuvettes, Products, Quartz Standard Cuvettes Brand: MachinedQuartz

Shipping and order support

Worldwide delivery to door service, hassle free shipping
Contact us for quotation of bulk purchase discount
Custom design. Send us graphic drawing for solution
POs for Academics. Pay after delivery.
Availability and dispatch timing vary by item and quantity. Contact us to confirm timing for your order.

Description

C0.12CS is a JGS1 quartz short-path cuvette for UV/Vis spectroscopy. It combines a 0.1 mm optical path with a 35 µL nominal capacity in an open-top body, making it a practical choice when your method calls for a very short path and a small nominal sample chamber.

Path Length: 0.1 mm
Sample Volume (Nominal): 35 µL
Opening Configuration: Open Top

Selection Specifications

Product Kind	Cuvette
Cell Type	Standard Cuvette
Measurement Mode	UV/Vis Spectroscopy
Pack Quantity	1 Piece
Path Length	0.1 mm
Light Transmission Configuration	Two-Way Light
Sample Volume (Nominal)	35 µL
Cell Body Dimensions	2.6 × 12.5 × 45 mm
Material	Quartz
Material Grade	JGS1
Closure Type	No Closure
Closure Included	No
Opening Configuration	Open Top

Choose this option

Choose C0.12CS when your method specifically needs a 0.1 mm path in a standard cuvette-style body for UV/Vis measurement. The open-top format is useful when you want direct access for loading, rinsing and visual inspection of the sample chamber, and the 35 µL nominal capacity indicates a small sample region without implying a minimum working fill.

What makes this option different

0.1 mm optical path: suited to methods written for a very short path length.
35 µL nominal capacity: indicates a small sample chamber matched to this short-path format.
Open top with no closure: sample loading and cleaning are done directly from above.
Two-Way Light configuration: designed for the primary transmission axis rather than side optical access.
JGS1 quartz body: specified for UV/Vis use on this exact SKU.
2.6 × 12.5 × 45 mm body size: useful for checking holder seating and compartment clearance.

Using this cell

Load the sample carefully from the top opening and make sure the liquid fully covers the part of the optical path used by your instrument. Because this is an open-top cell with no closure, handle it upright during filling, transfer and measurement.

Keep the same orientation for blank and sample runs, and avoid bubbles or residue in the short-path sample region. The 35 µL figure is the nominal capacity of the cell, not a stated minimum working volume.

First-use check

Inspect the optical faces and top opening for chips, particles or dried residue.
Confirm that the cell seats correctly in your holder before loading a valuable sample.
Run a blank at your measurement wavelength using the same orientation intended for the sample.

Fit and optical alignment

The body dimensions are 2.6 × 12.5 × 45 mm for the body only. Check holder width, seating depth and any top clearance in your instrument, especially if your accessory expects a conventional full-width cuvette body or a specific beam height.

Z Height is not specified for this model, so instrument fit should be reviewed where beam position is tightly defined.

Solvents and cleaning

This SKU is restricted to neutral solutions only. It is not specified here for acid, alkali or organic-solvent use.

For general fabrication background, see Compare fabrication options. Do not use hydrofluoric acid on quartz. Avoid hot strong alkalis and abrasive cleaning, and wipe the optical faces gently with non-abrasive optical tissue.

Included with this option

Cuvette body without a lid. Confirm the required number of cells and the quoted price unit when ordering.

Availability and ordering

You can order the listed specification directly, or contact us first to confirm current availability and dispatch timing before ordering. For a required delivery date, ask before checkout; preparation or production time is separate from carrier transit and customs clearance.

Discuss a custom version

For a different short path or holder fit, send a labelled drawing with the required optical path, body clearance and sample-region constraints. Include the neutral sample conditions and proposed fill requirements. Discuss your requirements with SKU C0.12CS.
