(C0.52WR1) Quartz Demountable Cuvette, 0.5 mm Path, 150 µL

Weight	30 g

SKU: C0.52WR1

Original price was: $294.00.Current price is: $265.00.

In Stock

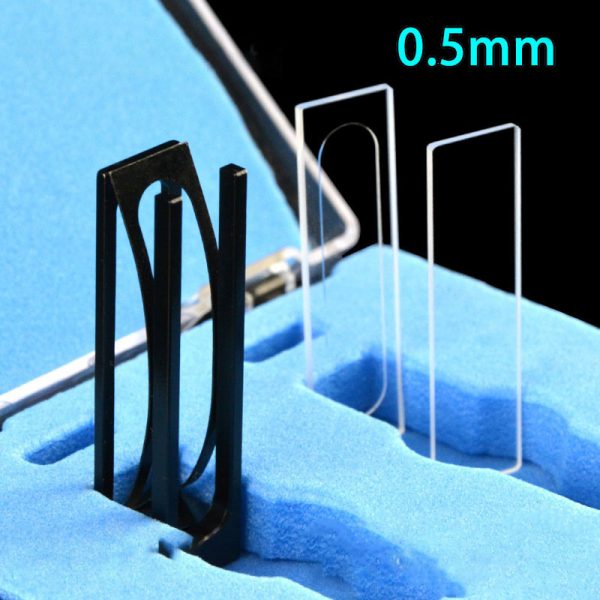

C0.52WR1 is a JGS1 quartz demountable cuvette for fluorescence spectroscopy, with a 0.5 mm optical path, 150 µL nominal capacity, a removable quartz cover plate and an included holder. Its rounded-end sample groove gives direct access for loading and inspection before measurement. Sold as 1 cuvette per listed price unit.

In Stock

SKU: C0.52WR1 Categories: Cuvettes, Products, Quartz Demountable Cuvettes Brand: MachinedQuartz

Shipping and order support

Worldwide delivery to door service, hassle free shipping
Contact us for quotation of bulk purchase discount
Custom design. Send us graphic drawing for solution
POs for Academics. Pay after delivery.
Availability and dispatch timing vary by item and quantity. Contact us to confirm timing for your order.

Description

C0.52WR1 is a JGS1 quartz demountable cuvette supplied with a holder for fluorescence spectroscopy. It combines a 0.5 mm optical path with a 150 µL nominal capacity and a removable quartz cover plate, so you can place the sample into the rounded-end groove, inspect the sample region, and then use the assembled cell in the supplied support.

Path Length: 0.5 mm
Sample Volume (Nominal): 150 µL
Closure Type: Removable Cover Plate

Selection Specifications

Product Kind	Cuvette
Cell Type	Demountable Cuvette
Measurement Mode	Fluorescence Spectroscopy
Path Length	0.5 mm
Light Transmission Configuration	Two-Way Light
Wavelength Range — Lower Limit	200 nm
Wavelength Range — Upper Limit	2500 nm
Sample Volume (Nominal)	150 µL
External Dimensions	45 × 12.5 × 3 mm
Overall Dimensions with Closure	45 × 12.5 × 3 mm
External Dimensions Scope	With Closure
Material	Quartz
Material Grade	JGS1
Closure Type	Removable Cover Plate
Closure Material	Quartz
Closure Included	Yes
Holder Included	Yes
Slot Depth	0.5 mm

Choose this option

Choose C0.52WR1 when you need a short-path demountable cell and want the holder supplied with it. The removable quartz cover plate keeps the sample region accessible during loading, and the rounded-end groove helps define where the sample sits within this 0.5 mm path-length version.

What makes this option different

0.5 mm optical path for methods that need this short-path demountable format.
150 µL nominal capacity paired with a small sample groove rather than a larger chamber format.
Rounded-end sample groove helps locate the sample region during loading and visual inspection.
Removable quartz cover plate lets you access the sample area directly before assembly.
Holder included so the cell and its support are supplied together in this option.
45 × 12.5 × 3 mm covered cell size keeps the cell body slim, while holder clearance still needs to be checked separately.

Using this cell

Load the sample into the groove on the cuvette body, then place the quartz cover plate evenly over the sample region before setting the assembly into the holder. This format is useful when you want to prepare and inspect the sample outside the measurement position first.

The 150 µL figure is a nominal capacity for this version. A minimum working volume is not stated, so methods that rely on very small fills or a tightly defined beam footprint should verify actual sample coverage during setup.

First-use check

Before first use, inspect the quartz body, cover plate and holder for dust, fingerprints or uneven seating. Assemble the cell with a blank and confirm that the illuminated area passes through the intended sample region in your measurement orientation.

Fit and optical alignment

The stated 45 × 12.5 × 3 mm dimensions apply to the covered cell body, including the cover plate. They do not describe the full installed envelope of the holder-and-cell assembly.

Z Height is not stated for this SKU. The included holder supports the assembled cell, but it does not by itself establish compatibility with a particular instrument compartment or beam-center height, so check installed clearance and beam position if your setup is height-sensitive.

Solvents and cleaning

Quartz should not be used with hydrofluoric acid. Avoid hot strong alkalis and abrasive cleaning on the quartz surfaces.

Chemical suitability for this exact selected assembly is not established here, so if your work involves unusual solvents, extended exposure or temperature-sensitive conditions, check suitability for the cuvette, cover plate and holder combination before use. For general fabrication background, see https://machinedquartz.com/fabrication-method-of-cuvettes/.

Included with this option

Supplied as 1 cuvette per listed price unit, with a removable quartz cover plate and holder.

Availability and ordering

Order this specification directly, or contact us to check current availability and dispatch timing. If temporarily unavailable, additional preparation or production time may be needed. For a required delivery date, contact us before checkout; preparation or production is separate from carrier transit and customs clearance.

Discuss a custom version

We can review custom JGS1 quartz versions for changes to path length, sample-region geometry, holder-related fit requirements and other critical dimensions. Send your drawing or labelled sketch together with instrument or fixture information, wavelength range, sample conditions and quantity needs. Discuss your requirements and reference C0.52WR1.
