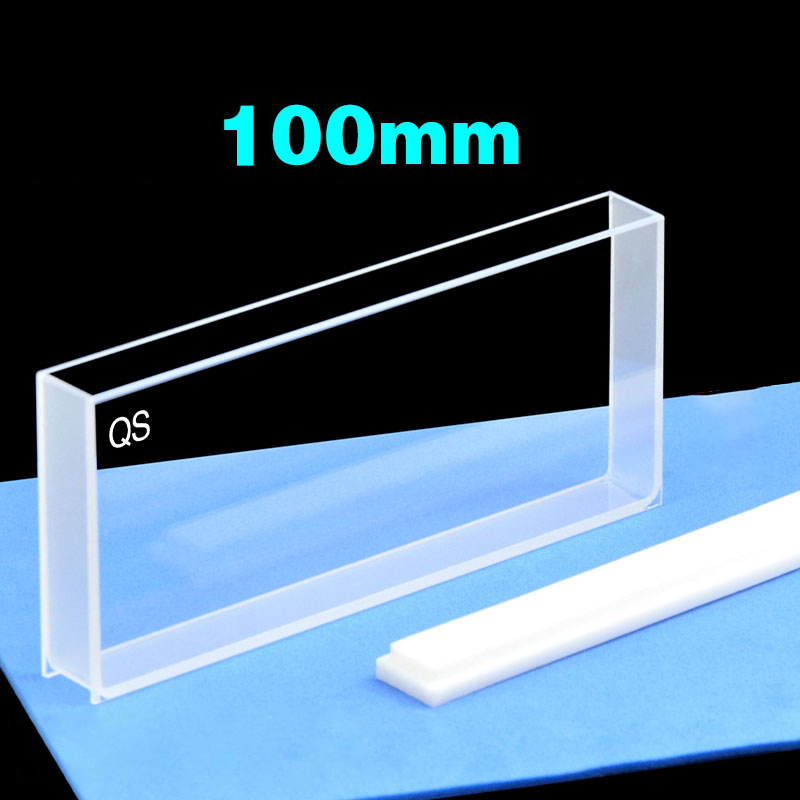

(C1002CR) Quartz Large-Window Cuvette, 100 mm Path, 35 mL

Weight	100 g

SKU: C1002CR

Original price was: $361.00.Current price is: $325.00.

In Stock

C1002CR is a JGS1 quartz large-window cuvette with a 100 mm optical path and 35 mL nominal capacity for UV/Vis work. Its long chamber gives direct top access for filling and liquid checks, and an accompanying lid covers the opening during routine handling. Check holder length against the 12.5 × 102.5 × 45 mm body.

In Stock

SKU: C1002CR Categories: Cuvettes, Products, Quartz Large Window Cuvettes Brand: MachinedQuartz

Shipping and order support

Worldwide delivery to door service, hassle free shipping
Contact us for quotation of bulk purchase discount
Custom design. Send us graphic drawing for solution
POs for Academics. Pay after delivery.
Availability and dispatch timing vary by item and quantity. Contact us to confirm timing for your order.

Description

C1002CR combines a 100 mm optical path with a 35 mL nominal chamber in a long, large-window quartz body. Fill and inspect the liquid from the top, then use the accompanying lid during routine handling. Its fused integrated construction is handled as a joined body; sample access does not require separating optical plates.

The optical path is 100 mm. Check the required viewing direction, beam height and holder seating for your instrument separately; those fit details are not established by path length alone.

Path Length: 100 mm
Sample Volume (Nominal): 35 mL
Closure Type: Lid

Selection Specifications

Product Kind	Cuvette
Cell Type	Large-Window Cuvette
Measurement Mode	UV/Vis Spectroscopy
Pack Quantity	1 Piece
Path Length	100 mm
Light Transmission Configuration	Two-Way Light
Wavelength Range — Lower Limit	200 nm
Wavelength Range — Upper Limit	2500 nm
Sample Volume (Nominal)	35 mL
External Dimensions	12.5 × 102.5 × 45 mm
Cell Body Dimensions	12.5 × 102.5 × 45 mm
External Dimensions Scope	Body Only
Material	Quartz
Material Grade	JGS1
Closure Type	Lid
Closure Included	Yes

Choose this option

Choose C1002CR when you need a large-window quartz cell with a larger nominal sample volume and an upright, lidded format for manual filling. It is suited to UV/Vis setups where the body length, sample chamber size and access from the top all matter, and where you can verify the required optical direction in your holder or instrument before use.

What makes this option different

Large-window cuvette format: selected for applications that need the large-window body style rather than a small standard cell shape.
35 mL nominal capacity: useful when your method calls for a larger filled sample region in a single cell.
Long body dimensions: the 12.5 × 102.5 × 45 mm body size helps you check compartment length and general installation space.
Top-access, lidded use: the included lid supports upright filling and covered bench use.
Fused integrated construction: supplied in the source-described assembled construction style rather than as a separate demountable plate set.
100 mm optical path: choose this long transmission distance when it is specified by your method and supported by the holder.

Using this cell

Fill the cell in an upright position so the sample covers the intended beam area, then remove visible bubbles before measurement. Keep the same orientation for blank and sample readings to maintain consistent handling from run to run.

The lid is useful for covered manual use, but no pressure rating or sealed-system limit is stated for this SKU. Use it as an upright sample cell rather than as a pressure-rated flow component.

First-use check

Inspect the optical faces and the lid when the cuvette arrives. Rinse with a suitable liquid for your method, make sure the cell sits upright and stable in the holder, and run a blank before routine measurements.

Fit and optical alignment

The stated 12.5 × 102.5 × 45 mm dimensions apply to the body only, excluding the lid. When checking fit, allow extra clearance above the cell for the closure and for handling during filling and cleaning.

Z Height is not listed for this SKU. If your instrument requires a defined beam-center height, or if your method depends on a specific 100 mm optical direction within this large-window format, please review the holder geometry before ordering.

Solvents and cleaning

The supplier describes this cell as fused integrated construction. For general background on cuvette construction styles, see the Cuvette Fabrication Glossary.

Specific chemical limits for this exact SKU are not established here. Do not use hydrofluoric acid on quartz. Avoid hot strong alkalis and abrasive cleaning, and clean the optical faces gently with non-abrasive optical tissue.

Included with this option

1 cuvette per listed price unit. Closure included.

Availability and ordering

Order this specification directly, or contact us to check current availability and dispatch timing. If temporarily unavailable, additional preparation or production time may be needed. For a required delivery date, contact us before checkout; preparation or production is separate from carrier transit and customs clearance.

Discuss a custom version

We coordinate custom JGS1 quartz production for requirements involving dimensions, optical path length, sample volume, optical windows or Z Height, closures and connections, fabrication and tolerances. Send a dimensioned drawing or labelled sketch and identify the dimensions and tolerances that are critical to your application. Prototype batches typically involve 2–4 cells; the final quantity, feasibility, specifications, price and production time are confirmed in the project quotation. Modified designs and prototype batches are quoted separately from the listed SKU. Discuss your requirements and quote part number C1002CR.
