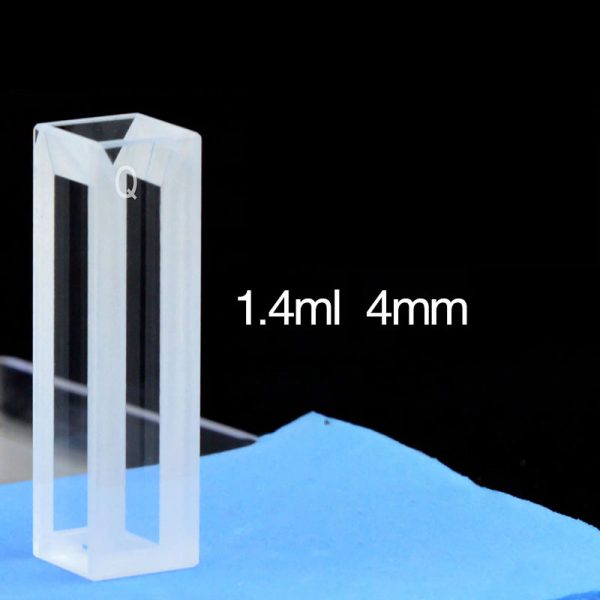

(C104CR30) Quartz Micro Cuvette, 10 mm Path, 1.4 mL

Weight30 g
SKU: C104CR30

Original price was: $138.00.Current price is: $125.00.

In Stock

C104CR30 is a quartz micro cuvette with a 10 mm optical path, Four-Way Light access and a 1.4 mL nominal capacity. This version combines an open-top body with a 4 mm sample-region channel, giving direct filling access and a broader sample region to check against your beam geometry. Supplied as 1 cuvette per price unit, with a lid included.

In Stock
Add to Wishlist
Add to Wishlist
SKU: C104CR30 Categories: , , Brand:
Shipping and order support
  • Worldwide delivery to door service, hassle free shipping
  • Contact us for quotation of bulk purchase discount
  • Custom design. Send us graphic drawing for solution
  • POs for Academics. Pay after delivery.
  • Availability and dispatch timing vary by item and quantity. Contact us to confirm timing for your order.

Description

C104CR30 is a quartz micro cuvette for fluorescence spectroscopy with a 10 mm optical path and Four-Way Light access. This 1.4 mL nominal-capacity version uses an open-top body and a 4 mm sample-region channel, so you can fill it directly from above and check whether your beam is fully covered within a broader sample region. The body is supplied with a lid and sold as 1 cuvette per price unit.

Path Length
10 mm
Sample Volume (Nominal)
1.4 mL
Opening Configuration
Open Top (Cell Body)

Selection Specifications

Product KindCuvette
Cell TypeMicro Cuvette
Measurement ModeFluorescence Spectroscopy
Pack Quantity1 Piece
Path Length10 mm
Light Transmission ConfigurationFour-Way Light
Wavelength Range — Lower Limit200 nm
Wavelength Range — Upper Limit2500 nm
Sample Volume (Nominal)1.4 mL
External Dimensions12.5 × 12.5 × 45 mm
Cell Body Dimensions12.5 × 12.5 × 45 mm
Uncapped Cell Dimensions12.5 × 12.5 × 45 mm
External Dimensions ScopeUncapped Cell
MaterialQuartz
Closure TypeLid
Closure IncludedYes
Opening ConfigurationOpen Top (Cell Body)
Detection Channel Width4 mm

Choose this option

Choose C104CR30 when you need a 10 mm path micro cuvette with side optical access and more chamber volume within the same compact 12.5 × 12.5 mm body format. The 4 mm sample-region version is useful when your method needs a wider presented sample region than narrower-channel options, while the open top makes direct loading and rinsing straightforward.

What makes this option different

  • Open-top access with lid: the sample chamber is filled from the top, which suits direct pipetting, inspection during filling and straightforward rinsing between runs. The lid covers the opening but is not described here as a pressure or leak-tight closure.
  • 4 mm sample-region channel: this version is selected for its broader sample region, which matters when you need to check beam placement and liquid coverage against a wider internal presentation area.
  • 1.4 mL nominal capacity: this is the larger-capacity option within this compact body style, which can be useful when your method or handling routine prefers a fuller chamber rather than a smaller nominal fill.
  • Four-Way Light configuration: the cell supports optical access from four sides for fluorescence setups that use compatible side-looking geometry.
  • Powder-fused construction: this exact research-style version is identified by the supplier with this construction term, distinguishing it from other variants in the family. For ordinary use, treat it as an assembled quartz cell and choose cleaning methods that suit laboratory quartzware rather than abrasive mechanical scrubbing.
  • Compact uncapped body: the stated 12.5 × 12.5 × 45 mm dimensions describe the bare cell body, helping you check holder fit while leaving extra clearance above for the supplied lid.

Using this cell

Fill the chamber through the top opening and place the lid after loading. When preparing a run, look through the optical region and make sure the illuminated area is covered by liquid without bubbles, splashes or residue sitting in the beam path.

The stated 1.4 mL value is the nominal capacity of the cell, not a minimum working volume. If your method uses partial fills, establish the practical level in your own setup so the beam stays within the filled sample region.

First-use check

Inspect the quartz faces, top opening and lid before first use. Rinse the cell for your sample type, then run a blank to confirm seating, beam coverage and a fill level that suits your instrument and method.

Fit and optical alignment

The listed 12.5 × 12.5 × 45 mm dimensions apply to the uncapped body. They are useful for checking holder size and side clearance, but they do not include the added height of the lid, so leave room above the cell if your compartment has limited vertical clearance.

Z Height is not listed for this SKU, so instrument fit should be checked against your actual beam position rather than assumed from the outer body dimensions. The 4 mm sample-region channel should also be reviewed against the illuminated area used by your method, especially if you work with tightly defined beam geometry.

Solvents and cleaning

This quartz micro cuvette is offered for fluorescence work, but detailed chemical limits are not listed here for this exact option. The supplier identifies this research-style version as powder-fused construction, so it should be selected and cleaned as an assembled quartz cell rather than treated as a claim of universal solvent compatibility. General fabrication background is available here: https://machinedquartz.com/fabrication-method-of-cuvettes/.

Do not use hydrofluoric acid on quartz. Avoid hot strong alkalis and abrasive cleaning, and use non-abrasive optical tissue on the optical faces.

Included with this option

Supplied as 1 quartz micro cuvette with a lid included.

Availability and ordering

Order this specification directly, or contact us to check current availability and dispatch timing. If temporarily unavailable, additional preparation or production time may be needed. For a required delivery date, contact us before checkout; preparation or production is separate from carrier transit and customs clearance.

Discuss a custom version

We coordinate custom JGS1 quartz production for changes to dimensions, optical path length, sample volume, optical windows, Z Height, closures and related geometry. Send a dimensioned drawing or labelled sketch together with holder details, sample chemistry and target quantity. Discuss your requirements and quote part number C104CR30.

Additional information

Weight30 g
