(C104CE2) Quartz Micro Cuvette, 10 mm / 3 mm (dual path) Path, 1.05 mL

Weight	30 g

SKU: C104CE2

Original price was: $452.00.Current price is: $407.00.

In Stock

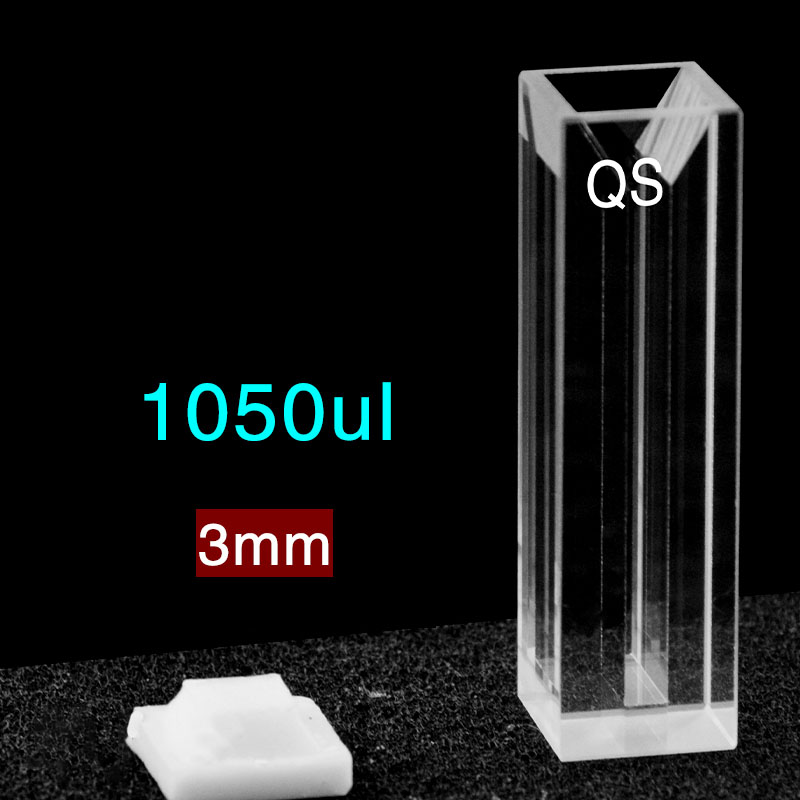

JGS1 quartz micro cuvette for fluorescence spectroscopy with a 10 mm primary path, 3 mm secondary path, Four-Way Light configuration and 1.05 mL nominal capacity. The uncapped cell body measures 12.5 × 12.5 × 45 mm, and this sale option is supplied as 1 cuvette with a lid.

In Stock

SKU: C104CE2 Categories: Cuvettes, Products, Quartz Fluorescence Cuvettes Brand: MachinedQuartz

Shipping and order support

Worldwide delivery to door service, hassle free shipping
Contact us for quotation of bulk purchase discount
Custom design. Send us graphic drawing for solution
POs for Academics. Pay after delivery.
Availability and dispatch timing vary by item and quantity. Contact us to confirm timing for your order.

Description

C104CE2 is a JGS1 quartz micro cuvette for fluorescence spectroscopy with a 10 mm primary path, a 3 mm secondary path and a Four-Way Light layout. Its 1.05 mL nominal capacity and 12.5 × 12.5 × 45 mm uncapped body suit users who want a compact micro cuvette with side optical access, and this sale option includes a lid.

Path Length: 10 mm / 3 mm (dual path)
Sample Volume (Nominal): 1.05 mL
Closure Type: Lid

Selection Specifications

Product Kind	Cuvette
Cell Type	Micro Cuvette
Measurement Mode	Fluorescence Spectroscopy
Pack Quantity	1 Piece
Path Length	10 mm / 3 mm (dual path)
Light Transmission Configuration	Four-Way Light
Optical Window Dimensions	3 mm
Wavelength Range — Lower Limit	200 nm
Wavelength Range — Upper Limit	2500 nm
Sample Volume (Nominal)	1.05 mL
External Dimensions	12.5 × 12.5 × 45 mm
Uncapped Cell Dimensions	12.5 × 12.5 × 45 mm
External Dimensions Scope	Uncapped Cell
Material	Quartz
Material Grade	JGS1
Closure Type	Lid
Closure Included	Yes
Fabrication Method	Molded 83
Detection Channel Width	3 mm

Choose this option

Choose C104CE2 when you need the stated 10 mm / 3 mm dual-path geometry in a shorter micro-cuvette body. The 3 mm sample-region width and Four-Way Light arrangement are the main distinctions here, while the supplied lid is useful when your workflow prefers a covered cell between filling and measurement.

What makes this option different

10 mm / 3 mm dual path for this specific fluorescence cuvette layout.
1.05 mL nominal capacity in a compact micro-cuvette format.
Four-Way Light configuration for side optical access around the sample region.
Supplied as 1 cuvette with lid per listed price unit.

Using this cell

Fill from the top and seat the lid gently if you want a covered sample during handling or measurement. Keep the optical faces free of bubbles, residue and fingerprints, and use a consistent orientation for blank and sample runs.

The 1.05 mL figure is the nominal capacity of the cell, not a minimum working volume. Set your actual fill level so the illuminated region is fully covered in your own instrument geometry.

First-use check

Inspect the windows under good light before first use and rinse with a method-compatible liquid if needed. Run a blank with the same orientation and filling practice you will use for samples, and confirm that the liquid level covers the beam path without trapped air.

Fit and optical alignment

The stated 12.5 × 12.5 × 45 mm dimensions apply to the uncapped cell body. Use them to check holder seating and side clearance, and allow extra top clearance for the supplied lid because the overall capped height is not specified here.

Z Height is not established for this SKU. If your fluorescence holder depends on a fixed beam center or a defined insertion height, check that requirement before ordering rather than relying on body height alone.

Solvents and cleaning

This cuvette is classified as Molded 83. In MQ’s fabrication guide, this is a common choice for methods involving organic solvents or temperature-related process conditions, but suitability still depends on the complete assembled cell and your actual sample and cleaning routine.

Do not use hydrofluoric acid on quartz. Avoid hot strong alkalis and abrasive cleaning, and wipe the exterior optical faces gently with non-abrasive optical tissue. If your sample, cleaning liquid or temperature exposure is demanding, please contact us before ordering.

Included with this option

1 cuvette per listed price unit. Closure included.

Availability and ordering

Order this specification directly, or contact us to check current availability and dispatch timing. If temporarily unavailable, additional preparation or production time may be needed. For a required delivery date, contact us before checkout; preparation or production is separate from carrier transit and customs clearance.

Discuss a custom version

We coordinate custom JGS1 quartz production for requirements involving dimensions, optical path length, sample volume, optical windows or Z Height, closures and connections, and fabrication or tolerances. Send a dimensioned drawing or labelled sketch together with holder details, wavelength range, sample conditions and target quantity. Prototype batches typically involve 2–4 cells; feasibility, final specifications, price and production time are confirmed in the project quotation. Discuss your requirements and mention part number C104CE2.
