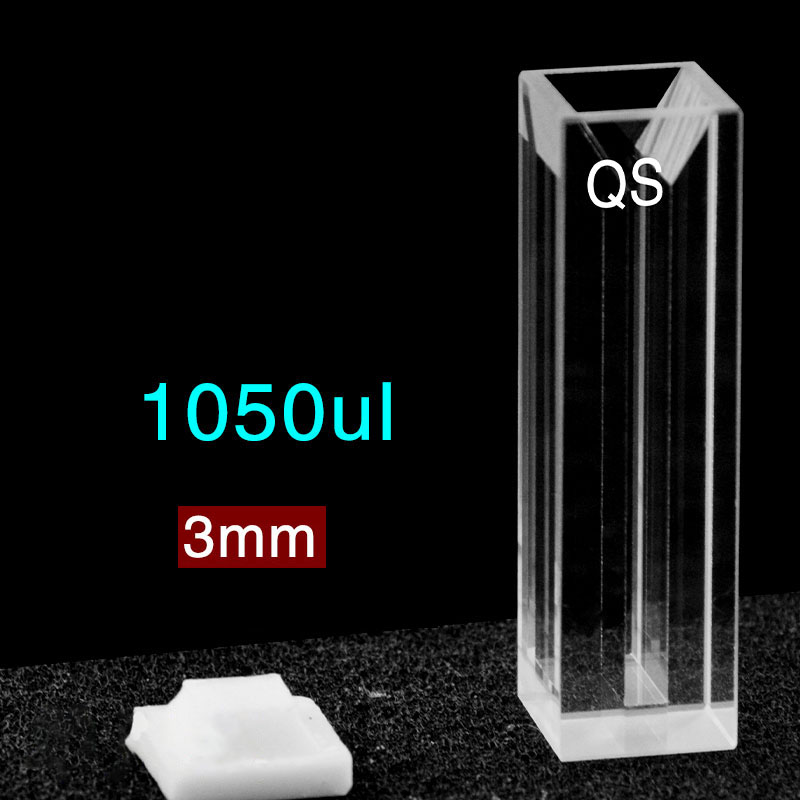

(C104CE6) Quartz Micro Cuvette, 10 mm / 3 mm (dual path) Path, 1.05 mL

Weight	30 g

SKU: C104CE6

Original price was: $323.00.Current price is: $291.00.

In Stock

C104CE6 is a JGS1 quartz micro cuvette for fluorescence measurements with a 10 mm main path, a 3 mm secondary path and Four-Way Light access. Its 1.05 mL nominal capacity and 12.5 × 12.5 × 45 mm uncapped cell body help with sample planning and holder checks. Sold as 1 cuvette with closure included.

In Stock

SKU: C104CE6 Categories: Cuvettes, Products, Quartz Fluorescence Cuvettes Brand: MachinedQuartz

Shipping and order support

Worldwide delivery to door service, hassle free shipping
Contact us for quotation of bulk purchase discount
Custom design. Send us graphic drawing for solution
POs for Academics. Pay after delivery.
Availability and dispatch timing vary by item and quantity. Contact us to confirm timing for your order.

Description

C104CE6 is a JGS1 quartz micro cuvette for fluorescence work that combines a 10 mm main optical path with a 3 mm secondary path in one compact cell. Four-Way Light access and a 3 mm sample-region width make this a practical option when your method uses more than one defined optical direction but still needs a micro cuvette body. The nominal capacity is 1.05 mL, and this sale unit is 1 cuvette with closure included.

Path Length: 10 mm / 3 mm (dual path)
Sample Volume (Nominal): 1.05 mL
Closure Type: Lid

Selection Specifications

Product Kind	Cuvette
Cell Type	Micro Cuvette
Measurement Mode	Fluorescence Spectroscopy
Pack Quantity	1 Piece
Path Length	10 mm / 3 mm (dual path)
Light Transmission Configuration	Four-Way Light
Optical Window Dimensions	3 mm
Wavelength Range — Lower Limit	200 nm
Wavelength Range — Upper Limit	2500 nm
Sample Volume (Nominal)	1.05 mL
External Dimensions	12.5 × 12.5 × 45 mm
Cell Body Dimensions	12.5 × 12.5 × 45 mm
Uncapped Cell Dimensions	12.5 × 12.5 × 45 mm
External Dimensions Scope	Uncapped Cell
Material	Quartz
Material Grade	JGS1
Closure Type	Lid
Closure Included	Yes
Fabrication Method	Molded 83
Detection Channel Width	3 mm

Choose this option

Choose C104CE6 when your method needs the stated dual-path geometry rather than a single-path micro cuvette. The 10 mm and 3 mm paths give you two defined optical directions in the same cell, while the 12.5 × 12.5 × 45 mm uncapped body keeps the format compact for holder review. This is the key combination to check if your measurement setup depends on both the optical layout and the physical envelope of the bare cell.

What makes this option different

Dual optical path with a 10 mm main path and 3 mm secondary path.
Four-Way Light layout for optical access from multiple sides.
1.05 mL nominal capacity with a 3 mm sample-region width.
12.5 × 12.5 × 45 mm uncapped cell body for holder and compartment checks.
Closure included with the single-cuvette sale unit.

Using this cell

Fill the cell so the illuminated region is fully covered, and keep bubbles, droplets and dried residue away from the optical faces. If your method uses the dual-path geometry actively, keep the same orientation for blank and sample measurements so the optical setup stays consistent.

The 1.05 mL figure is the nominal capacity of the cell, not a minimum working volume. Set your practical fill level according to your beam position and the part of the sample region that must remain covered during measurement.

First-use check

Inspect the optical faces, body edges and closure contact area for chips or residue.
Place the empty cell in the holder and check seating and clearance.
Run a blank and confirm that the beam passes through the intended filled region in the intended orientation.

Fit and optical alignment

The stated 12.5 × 12.5 × 45 mm dimensions apply to the uncapped cell body. Use them to check holder seating and basic compartment clearance, but leave room for the supplied closure because the overall capped envelope is not established here.

Z Height is not established for this option. If your fluorescence setup depends on a fixed beam-center height, verify the actual beam position in your holder before ordering rather than assuming instrument fit from the body dimensions alone.

Solvents and cleaning

This cuvette uses Molded 83 fabrication. This construction is commonly selected for methods that may involve organic solvents or temperature-controlled work, but suitability still depends on your actual chemicals, exposure conditions and the full wetted assembly, including the closure.

Do not use hydrofluoric acid on quartz. Avoid hot strong alkalis and abrasive cleaning. Wipe the outer optical faces gently with non-abrasive optical tissue, and check compatibility before routine use with aggressive reagents or long exposure times.

Included with this option

1 cuvette per listed price unit. Closure included.

Availability and ordering

Order this specification directly, or contact us to check current availability and dispatch timing. If temporarily unavailable, additional preparation or production time may be needed. For a required delivery date, contact us before checkout; preparation or production is separate from carrier transit and customs clearance.

Discuss a custom version

We coordinate custom JGS1 quartz cuvettes for requirements involving dimensions, optical path length, sample volume, optical windows or Z Height, closures and fabrication. Send a dimensioned drawing or labelled sketch together with your holder details, critical dimensions, sample conditions and target quantity. Prototype batches typically involve 2–4 cells; final specifications, price and production time are confirmed in quotation. Discuss your requirements and quote C104CE6.
