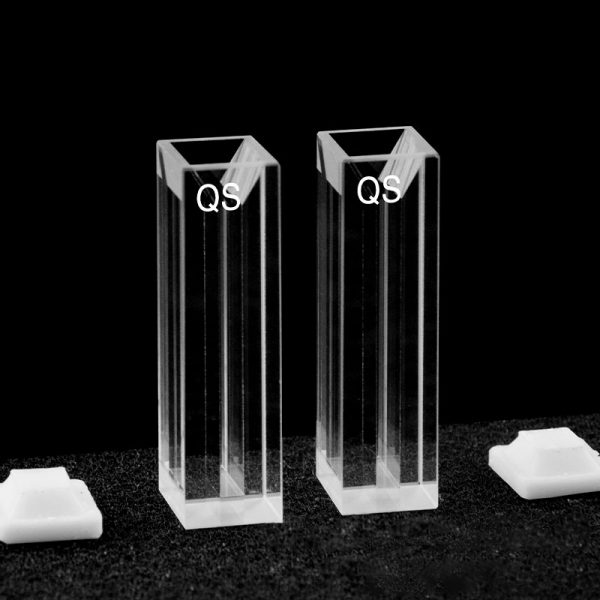

(C104CE3) Quartz Micro Cuvette, 10 mm / 3 mm (dual path) Path, 1.05 mL, Pack of 2

Weight	30 g

SKU: C104CE3

Original price was: $903.00.Current price is: $813.00.

In Stock

JGS1 quartz micro cuvette for fluorescence spectroscopy with a 10 mm primary path, 3 mm secondary path, Four-Way Light configuration and 1.05 mL nominal capacity. The uncapped cell body measures 12.5 × 12.5 × 45 mm. Supplied as a pack of 2 cuvettes with lids.

In Stock

SKU: C104CE3 Categories: Cuvettes, Products, Quartz Fluorescence Cuvettes Brand: MachinedQuartz

Shipping and order support

Worldwide delivery to door service, hassle free shipping
Contact us for quotation of bulk purchase discount
Custom design. Send us graphic drawing for solution
POs for Academics. Pay after delivery.
Availability and dispatch timing vary by item and quantity. Contact us to confirm timing for your order.

Description

C104CE3 is a JGS1 quartz micro cuvette for fluorescence spectroscopy with a 10 mm primary path, a 3 mm secondary path and Four-Way Light access. Its 1.05 mL nominal capacity keeps the sample cell compact, and this sale option is supplied as a pack of 2 cuvettes with lids.

Path Length: 10 mm / 3 mm (dual path)
Sample Volume (Nominal): 1.05 mL
Closure Type: Lid

Selection Specifications

Product Kind	Cuvette
Cell Type	Micro Cuvette
Measurement Mode	Fluorescence Spectroscopy
Pack Quantity	Pack of 2
Path Length	10 mm / 3 mm (dual path)
Light Transmission Configuration	Four-Way Light
Optical Window Dimensions	3 mm
Wavelength Range — Lower Limit	200 nm
Wavelength Range — Upper Limit	2500 nm
Sample Volume (Nominal)	1.05 mL
External Dimensions	12.5 × 12.5 × 45 mm
Uncapped Cell Dimensions	12.5 × 12.5 × 45 mm
External Dimensions Scope	Uncapped Cell
Material	Quartz
Material Grade	JGS1
Closure Type	Lid
Closure Included	Yes
Fabrication Method	Molded 83
Detection Channel Width	3 mm

Choose this option

Choose C104CE3 when you need the stated 10 mm / 3 mm dual-path geometry in a compact micro-cuvette body and want two cuvettes per price unit. The Four-Way Light arrangement is useful where side optical access around the sample region matters, and the supplied lids suit covered handling between filling and measurement.

What makes this option different

10 mm / 3 mm dual path for this specific fluorescence cuvette layout.
Four-Way Light configuration for side optical access around the sample region.
1.05 mL nominal capacity in a compact 12.5 × 12.5 × 45 mm uncapped body.
Pack of 2 cuvettes with lids per listed price unit.

Using this cell

Fill the cell so the illuminated sample region is fully covered during measurement. The 1.05 mL value is the nominal capacity of the cell, not a minimum working volume, so set your actual fill level according to your beam position and handling method.

For fluorescence work, keep the optical faces clean and orient the cell consistently for blank and sample measurements. If you use the supplied lids, seat them gently and check that the contact surfaces are clean before use.

First-use check

Inspect the cuvette bodies and optical faces for dust, chips or handling residue.
Test the uncapped body fit in your holder before routine use.
Run a blank and confirm that the filled sample region fully covers the beam without bubbles.

Fit and optical alignment

The stated external dimensions are for the uncapped cell body: 12.5 × 12.5 × 45 mm. Use these dimensions to check holder fit and body clearance, but leave extra space for any installed lid because the overall capped height is not specified here.

Z Height is not established for this option, so beam-center matching should be checked against your instrument or holder before ordering. This matters most in fluorescence setups where beam height and side collection geometry both need to align with the sample region.

Solvents and cleaning

This cuvette is classified as Molded 83. In MQ’s fabrication guide, this is a common choice for methods involving organic solvents and temperature-related process conditions, but the exact chemical limits of this assembled SKU are not specified here.

Do not use hydrofluoric acid on quartz. Avoid hot strong alkalis and abrasive cleaning, and wipe the optical faces gently with non-abrasive optical tissue. If your sample or cleaning routine includes aggressive reagents or extended contact time, please check suitability before ordering.

Included with this option

2 cuvettes per listed price unit. Closure included.

Availability and ordering

Order this specification directly, or contact us to check current availability and dispatch timing. If temporarily unavailable, additional preparation or production time may be needed. For a required delivery date, contact us before checkout; preparation or production is separate from carrier transit and customs clearance.

Discuss a custom version

We coordinate custom JGS1 quartz production for requirements involving dimensions, optical path length, sample volume, optical windows or Z Height, closures and fabrication details. Send a dimensioned drawing or labelled sketch together with your holder or instrument information, critical dimensions, wavelength range, sample conditions and target quantity. Prototype batches typically involve 2–4 cells; feasibility, final specifications, price and production time are confirmed in the project quotation. Discuss your requirements and quote part number C104CE3.
