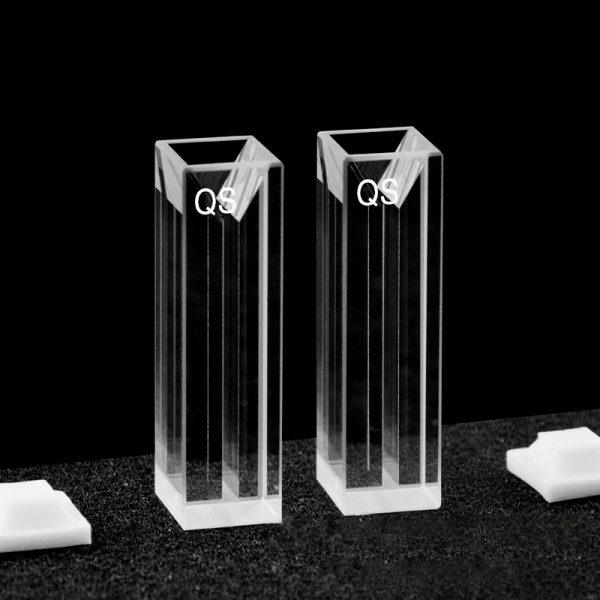

(C104CR12) Quartz Micro Cuvette, 10 mm / 2 mm (dual path) Path, 700 µL

Weight	30 g

SKU: C104CR12

Original price was: $903.00.Current price is: $813.00.

In Stock

C104CR12 is a JGS1 quartz micro cuvette for fluorescence measurements, combining a 10 mm primary path, a 2 mm secondary path and Four-Way Light access in one cell. Its 700 µL nominal capacity and narrow 2 mm sample region suit methods that need direct filling into a compact optical channel rather than a full-width chamber. Sold per 1 cuvette, with lid included.

In Stock

SKU: C104CR12 Categories: Cuvettes, Products, Quartz Fluorescence Cuvettes Brand: MachinedQuartz

Shipping and order support

Worldwide delivery to door service, hassle free shipping
Contact us for quotation of bulk purchase discount
Custom design. Send us graphic drawing for solution
POs for Academics. Pay after delivery.
Availability and dispatch timing vary by item and quantity. Contact us to confirm timing for your order.

Description

C104CR12 is a JGS1 quartz micro cuvette for fluorescence measurements with a 10 mm primary path, a 2 mm secondary path and Four-Way Light access. Its 700 µL nominal capacity and narrow 2 mm sample region make it a practical choice when your method needs a defined compact optical channel rather than a full-width sample chamber. The listed price is for 1 cuvette, and this option includes a lid.

Path Length: 10 mm / 2 mm (dual path)
Sample Volume (Nominal): 700 µL
Closure Type: Lid

Selection Specifications

Product Kind	Cuvette
Cell Type	Micro Cuvette
Measurement Mode	Fluorescence Spectroscopy
Path Length	10 mm / 2 mm (dual path)
Light Transmission Configuration	Four-Way Light
Optical Window Dimensions	2 mm
Wavelength Range — Lower Limit	200 nm
Wavelength Range — Upper Limit	2500 nm
Sample Volume (Nominal)	700 µL
External Dimensions	12.5 × 12.5 × 45 mm
Uncapped Cell Dimensions	12.5 × 12.5 × 45 mm
External Dimensions Scope	Uncapped Cell
Material	Quartz
Material Grade	JGS1
Closure Type	Lid
Closure Included	Yes
Fabrication Method	Molded 83
Detection Channel Width	2 mm

Choose this option

Choose this cell when your method needs the 10 mm / 2 mm dual-path layout and side optical access in the same cuvette. The narrow sample region helps you work with a compact filled channel, so this design is especially useful when the optical arrangement matters as much as the nominal volume.

What makes this option different

10 mm primary path and 2 mm secondary path in one micro cuvette for methods built around a dual-path geometry.
Four-Way Light access adds side optical access alongside the main transmission direction used in fluorescence work.
2 mm sample-region width gives a defined narrow channel instead of a full-width standard chamber.
700 µL nominal capacity suits small-volume filling without changing to a flow-cell format.
JGS1 quartz body with an explicit optical-contact supplier construction term for this exact option.
Lid included with the cuvette for covered sample handling after filling.

Using this cell

Fill the cell from the top and make sure the liquid covers the measurement region required by your method before taking a reading. After filling, check for trapped bubbles in the narrow sample region, because a compact channel is less forgiving of bubbles or incomplete coverage than a broad chamber.

Keep the same orientation for blank and sample runs so the primary path, secondary path and side optical access stay consistent. The 700 µL figure is the nominal capacity, not a stated minimum working volume.

First-use check

Before routine use, inspect the optical faces and the sample opening for chips, residue or fingerprints. Then seat the cuvette in your holder, fill with a suitable blank, and confirm that the filled sample region lines up correctly in your measurement setup.

Fit and optical alignment

The body dimensions used for holder planning are 12.5 × 12.5 × 45 mm for the uncapped cell. These dimensions help you check holder clearance and insertion space, but they do not include the lid height, so leave extra room above the cell for the lid and for routine handling.

Z Height is not specified for this option. If your instrument has a fixed beam-center height, check the beam position against the actual sample region before ordering rather than assuming a standard cuvette alignment.

Solvents and cleaning

This option is described with the supplier term optical contact and is listed under Molded 83 in the MQ fabrication glossary. In practical selection terms, that fabrication family is commonly chosen for methods that may involve organic solvents or elevated-temperature process conditions, but the complete assembly and actual exposure conditions still matter in use.

Do not use hydrofluoric acid with quartz. Avoid hot strong alkalis and abrasive cleaning. For routine care, rinse promptly after use and clean gently with a non-scratching method suitable for optical quartz.

Included with this option

1 cuvette per listed price unit. Closure included.

Availability and ordering

Order this listed specification directly, or ask about current availability and dispatch. If your delivery date is important, ask before checkout; preparation or production time is separate from transit and customs clearance.

Discuss a custom version

If you need a different path arrangement, body size or other quartz-cell geometry, send a drawing or describe the change you need. Custom JGS1 quartz enquiries are handled separately from this listed specification, with feasibility, quantity, price and production time confirmed in the project quotation.
