(C104SS25) Quartz Micro Cuvette, 10 mm Path, 700 µL

Weight	30 g

SKU: C104SS25

Original price was: $132.00.Current price is: $119.00.

In Stock

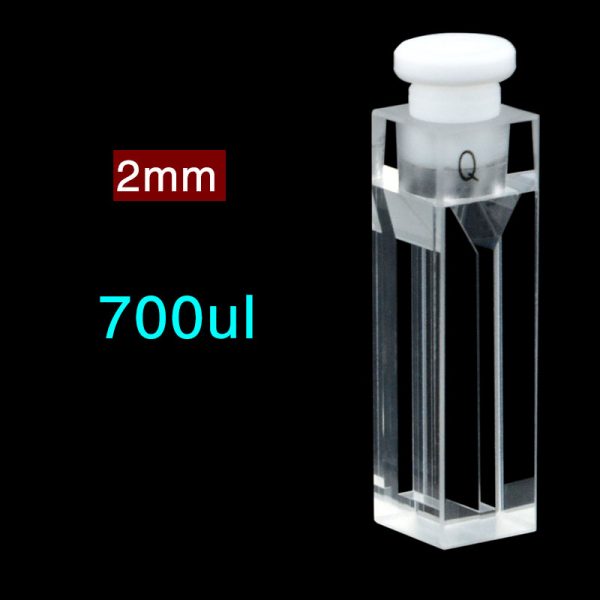

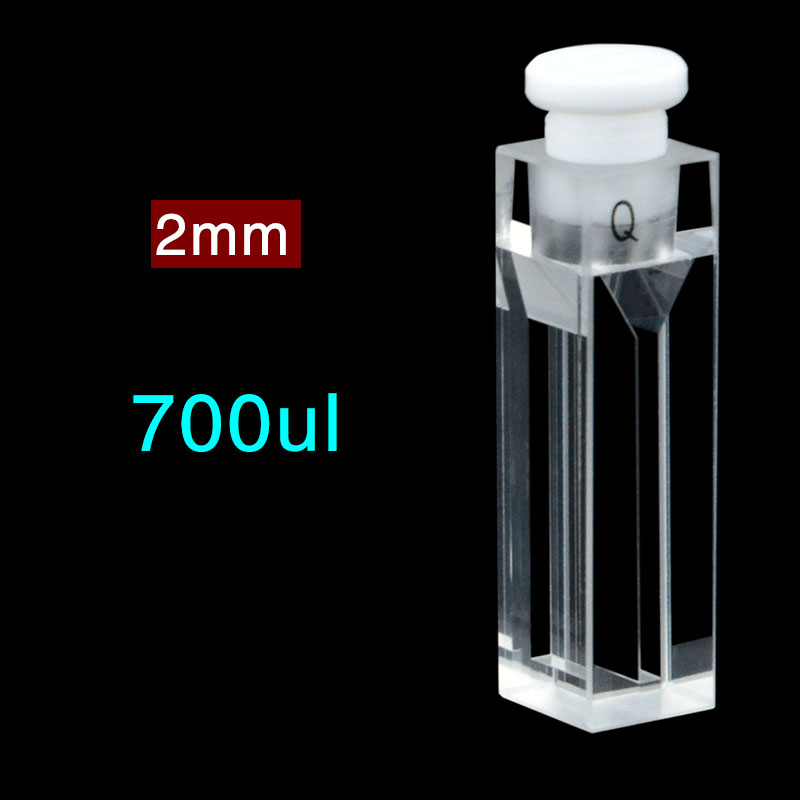

C104SS25 is a JGS1 quartz micro cuvette for fluorescence spectroscopy with a 10 mm optical path, Four-Way Light access and 700 µL nominal capacity. This version uses a 2 mm sample-region width in a compact stoppered format for a narrowly defined illuminated sample zone. Sold per piece as 1 cuvette, with a stopper included.

In Stock

SKU: C104SS25 Categories: Cuvettes, Products, Quartz Fluorescence Cuvettes Brand: MachinedQuartz

Shipping and order support

Worldwide delivery to door service, hassle free shipping
Contact us for quotation of bulk purchase discount
Custom design. Send us graphic drawing for solution
POs for Academics. Pay after delivery.
Availability and dispatch timing vary by item and quantity. Contact us to confirm timing for your order.

Description

C104SS25 is a stoppered JGS1 quartz micro cuvette for fluorescence spectroscopy when you need a 10 mm path in a compact closed cell. It combines Four-Way Light geometry with a 700 µL nominal capacity and a 2 mm sample-region width, so it suits methods that need optical access from more than one side while keeping the filled measurement region narrow. This listing is sold as 1 cuvette, with a stopper included.

Path Length: 10 mm
Sample Volume (Nominal): 700 µL
Closure Type: Stopper

Selection Specifications

Product Kind	Cuvette
Cell Type	Micro Cuvette
Measurement Mode	Fluorescence Spectroscopy
Pack Quantity	1 Piece
Path Length	10 mm
Light Transmission Configuration	Four-Way Light
Optical Window Dimensions	2 mm
Wavelength Range — Lower Limit	200 nm
Wavelength Range — Upper Limit	2500 nm
Sample Volume (Nominal)	700 µL
External Dimensions	12.5 × 12.5 × 45 mm
Base Dimensions	12.5 × 12.5 mm
Material	Quartz
Material Grade	JGS1
Closure Type	Stopper
Closure Included	Yes
Fabrication Method	Standard 80
Detection Channel Width	2 mm

Choose this option

Choose C104SS25 when your method is built around a 10 mm fluorescence cell but you want a narrower internal sample region than broader-channel versions in the same format. The 2 mm sample-region width helps define where the liquid sits in the illuminated area, while the stoppered top supports routine filling and covered handling between preparation and measurement.

What makes this option different

10 mm optical path for fluorescence methods set up around this standard path length.
Four-Way Light geometry for optical access from multiple sides of the cuvette body.
700 µL nominal capacity with a 2 mm sample-region width for a relatively narrow filled measurement zone.
JGS1 quartz body in a compact 12.5 × 12.5 mm base format, sold as 1 cuvette with stopper.

Using this cell

Fill the cuvette so the beam passes through a fully covered, bubble-free liquid region. The 700 µL value is the nominal cell capacity, not a minimum working volume, so the actual fill level should be checked against your beam position and measurement orientation.

Insert the stopper gently after filling and keep the outer optical faces clean and dry. For repeatable fluorescence work, use the same cuvette orientation for blanks and samples so the same faces and sample region stay in the optical path.

First-use check

Inspect the optical faces, edges and top opening before first use. Rinse with a suitable mild liquid for your method, run a blank in the intended orientation, and confirm that the beam crosses a clean, fully filled region without visible bubbles.

Fit and optical alignment

The stated external dimensions are 12.5 × 12.5 × 45 mm, with a 12.5 × 12.5 mm base. This is useful for checking holder footprint and general vertical clearance, but the available data do not establish whether the 45 mm dimension should be treated as body-only or closure-inclusive clearance.

Z Height is not listed for this SKU, so this page does not promise beam-center alignment for a specific fluorimeter or holder. The stated 2 mm sample-region width is relevant if your beam footprint is tight and you need to judge whether the illuminated area will remain fully within the filled region.

Solvents and cleaning

This cuvette uses adhesive-bonded quartz construction and is listed under Standard 80. For this construction, routine room-temperature water-based samples and buffers are the safer selection direction. Avoid organic sample solvents and organic cleaning agents with this type of assembly.

Do not use hydrofluoric acid on quartz. Avoid hot strong alkalis and abrasive cleaning, and wipe the optical faces gently with non-abrasive optical tissue. Broader chemical limits for the full wetted assembly are not established here for this SKU.

Included with this option

Supplied as 1 micro cuvette with stopper.

Availability and ordering

Order this specification directly, or contact us to check current availability and dispatch timing. If temporarily unavailable, additional preparation or production time may be needed. For a required delivery date, contact us before checkout; preparation or production is separate from carrier transit and customs clearance.

Discuss a custom version

We coordinate custom JGS1 quartz production for changes to dimensions, optical path length, sample volume, optical windows, Z Height, closures and related tolerances. Send a dimensioned drawing or labelled sketch, together with holder details, sample conditions and target quantity. Discuss your requirements and quote part number C104SS25.
