(C102CE17) Quartz Micro Cuvette, 10 mm Path, 1.4 mL

Weight	30 g

SKU: C102CE17

Original price was: $179.00.Current price is: $162.00.

In Stock

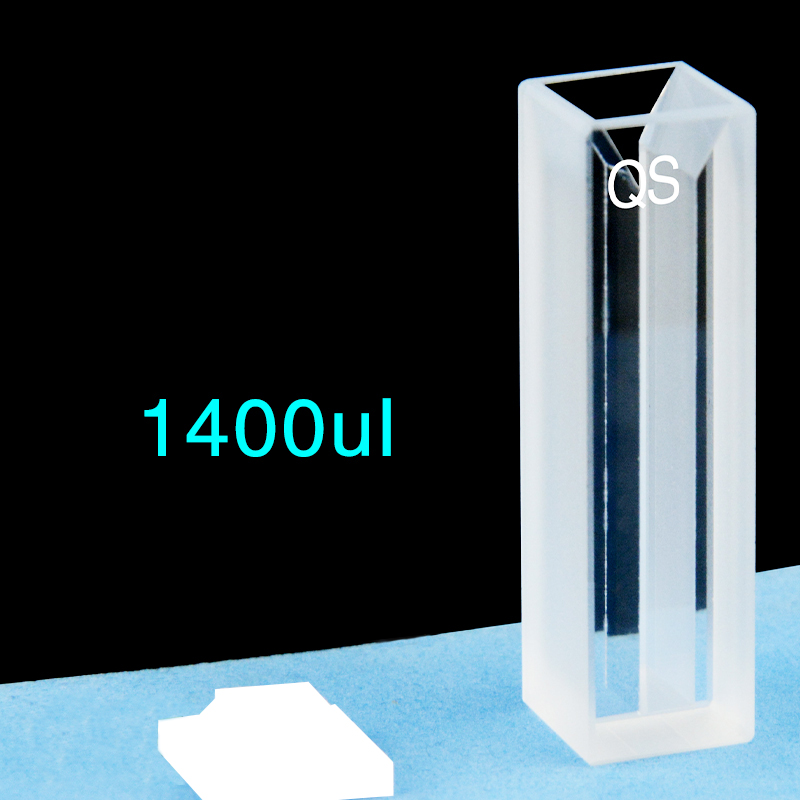

C102CE17 is a quartz micro cuvette for UV/Vis spectroscopy with a 10 mm optical path, 1.4 mL nominal capacity and a 4 mm sample-region width. Its Two-Way Light layout provides a wider defined sample region while keeping the same compact square-body format. Sold as 1 cuvette per price unit, with a closure included.

In Stock

SKU: C102CE17 Categories: Cuvettes, Products, Quartz Micro Cuvettes Brand: MachinedQuartz

Shipping and order support

Worldwide delivery to door service, hassle free shipping
Contact us for quotation of bulk purchase discount
Custom design. Send us graphic drawing for solution
POs for Academics. Pay after delivery.
Availability and dispatch timing vary by item and quantity. Contact us to confirm timing for your order.

Description

C102CE17 is a quartz micro cuvette for UV/Vis spectroscopy with a 10 mm optical path and a 1.4 mL nominal capacity. This version uses a 4 mm sample-region width, giving a wider defined illuminated section while keeping the same compact 12.5 × 12.5 × 45 mm uncapped body format. The quartz body uses a Two-Way Light layout and is specified for 200–2500 nm use.

Path Length: 10 mm
Sample Volume (Nominal): 1.4 mL
Closure Type: Lid

Selection Specifications

Product Kind	Cuvette
Cell Type	Micro Cuvette
Measurement Mode	UV/Vis Spectroscopy
Path Length	10 mm
Light Transmission Configuration	Two-Way Light
Optical Window Dimensions	4 mm
Wavelength Range — Lower Limit	200 nm
Wavelength Range — Upper Limit	2500 nm
Sample Volume (Nominal)	1.4 mL
External Dimensions	12.5 × 12.5 × 45 mm
Cell Body Dimensions	12.5 × 12.5 × 45 mm
Uncapped Cell Dimensions	12.5 × 12.5 × 45 mm
External Dimensions Scope	Uncapped Cell
Material	Quartz
Closure Type	Lid
Closure Included	Yes
Fabrication Method	Molded 83
Detection Channel Width	4 mm

Choose this option

Choose C102CE17 when you need a 10 mm path length in a compact micro cuvette body but want more nominal volume and a more open sample region than the narrower slit versions. The 4 mm sample-region width can be a practical middle ground when your method benefits from a defined optical section without using the tightest slit geometry. A closure is included for routine handling.

What makes this option different

10 mm optical path for UV/Vis methods built around this common path length.
1.4 mL nominal capacity in a compact quartz micro cuvette body.
4 mm sample-region width for a wider defined illuminated section than the narrower family options.
Two-Way Light layout with a stated 200–2500 nm wavelength range.
Closure included with the listed single-cuvette sale unit.

Using this cell

Fill the cuvette so the beam passes fully through the filled sample region. Before each run, check for bubbles, droplets or residue in the illuminated section, and keep the same orientation for blanks, standards and samples if your procedure depends on repeatable positioning.

The 1.4 mL figure is a nominal capacity only. It is not a minimum working volume, so lower-fill methods should be checked in the actual holder to make sure the beam remains fully covered.

First-use check

Inspect the optical faces before first use, rinse the cell with a cleaning liquid suitable for your method, and place it in the holder to confirm square seating and sufficient top clearance. Then run a trial fill and confirm that the measurement zone is fully covered without trapped bubbles.

Fit and optical alignment

The stated 12.5 × 12.5 × 45 mm dimensions apply to the uncapped quartz body. That helps you check holder fit and compartment space for the body itself, but not the extra height or clearance needed for the closure.

Z Height is not specified for this model. If your instrument uses a fixed beam position or a tightly defined beam-center height, confirm that alignment before ordering rather than assuming it from the outside dimensions alone.

Solvents and cleaning

This cuvette uses Molded 83 fabrication. This type is often selected for methods that may involve organic solvents or temperature-related work, but the actual chemical suitability still depends on the complete assembly and your operating conditions.

Do not use hydrofluoric acid on quartz. Avoid hot strong alkalis and abrasive cleaning materials, and wipe the optical faces gently with non-abrasive optical tissue.

Included with this option

1 cuvette per listed price unit. Closure included.

Availability and ordering

Order this specification directly, or contact us to check current availability and dispatch timing. If temporarily unavailable, additional preparation or production time may be needed. For a required delivery date, contact us before checkout; preparation or production is separate from carrier transit and customs clearance.

Discuss a custom version

If you need a different path length, volume, opening style or holder-related geometry, please contact us with your drawing or application details. Custom quartz versions are quoted separately from this listed SKU.
