(C304CA1) Quartz Fluorescence Cuvette, 30 mm / 10 mm (dual path) Path, 10.5 mL, Pack of 2

Weight	100 g

SKU: C304CA1

Original price was: $312.00.Current price is: $281.00.

In Stock

C304CA1 is a JGS1 quartz fluorescence cuvette with a 30 mm primary path, a 10 mm secondary path and Four-Way Light optical access. The open-top format gives direct access for filling and inspection, and each cell has a 10.5 mL nominal capacity for millilitre-scale sample handling.

In Stock

SKU: C304CA1 Categories: Cuvettes, Products, Quartz Fluorescence Cuvettes Brand: MachinedQuartz

Shipping and order support

Worldwide delivery to door service, hassle free shipping
Contact us for quotation of bulk purchase discount
Custom design. Send us graphic drawing for solution
POs for Academics. Pay after delivery.
Availability and dispatch timing vary by item and quantity. Contact us to confirm timing for your order.

Description

C304CA1 is a JGS1 quartz fluorescence cuvette for methods that use a 30 mm optical path and side optical access around the sample. Its 30 mm primary path, 10 mm secondary path, Four-Way Light layout and open-top body give you a straightforward format for filling from above and aligning the cell in fluorescence work. Each cell has a 10.5 mL nominal capacity, and this MQ listing is priced and sold as a pack of 2 cells.

Path Length: 30 mm / 10 mm (dual path)
Sample Volume (Nominal): 10.5 mL
Opening Configuration: Open Top

Selection Specifications

Product Kind	Cuvette
Cell Type	Fluorescence Cuvette
Measurement Mode	Fluorescence Spectroscopy
Pack Quantity	Pack of 2
Path Length	30 mm / 10 mm (dual path)
Light Transmission Configuration	Four-Way Light
Wavelength Range — Lower Limit	200 nm
Wavelength Range — Upper Limit	2500 nm
Sample Volume (Nominal)	10.5 mL
External Dimensions	12.5 × 32.5 × 45 mm
Uncapped Cell Dimensions	12.5 × 32.5 × 45 mm
External Dimensions Scope	Uncapped Cell
Body Height	45 mm
Base Dimensions	12.5 × 32.5 mm
Material	Quartz
Material Grade	JGS1
Closure Type	Lid
Closure Included	Yes
Opening Configuration	Open Top

Choose this option

Choose C304CA1 when your method needs this longer 30 mm path in a rectangular fluorescence cell, but you also want a stated 10 mm secondary optical direction in the same body. The open-top arrangement is useful when you need direct access for pipetting, checking the liquid level and inspecting the sample region before measurement. Its nominal 10.5 mL capacity places it in routine millilitre-scale work rather than micro-volume use.

What makes this option different

30 mm primary path: suits setups built around a longer optical distance through the sample.
10 mm secondary path: adds a second stated optical direction in the same cuvette body.
Four-Way Light layout: gives optical access from more than one side around the sample region for supported fluorescence geometries.
Open-top body: allows direct top filling and visual inspection of the sample before measurement.
JGS1 quartz: specified for UV/Vis-capable quartz cuvette use across the stated 200–2500 nm range.
Fused integrated construction: handle and rinse the joined body as an assembly through the open top rather than separating the optical faces.
30 mm primary and 10 mm secondary directions: orient the cell so excitation and collection use the directions required by your fluorescence method.

Using this cell

Fill the cuvette from the open top and check the sample region before placing it in the holder. The top opening makes it easier to inspect for bubbles, droplets or residue that may sit in the optical path.

If you use both cells in one method, keep their orientation consistent in the holder so the same optical faces are presented each time. The nominal volume is 10.5 mL per cell, but minimum working volume is not stated, so the liquid level still needs to cover your actual beam position in use.

First-use check

Inspect both cells for clean optical faces, clean top openings and intact edges.
Place each empty cell in the holder to confirm seating and orientation.
Run a blank and verify that your setup uses the intended 30 mm or 10 mm optical direction.

Fit and optical alignment

The uncapped cell body measures 12.5 × 32.5 × 45 mm, with a 12.5 × 32.5 mm base footprint. Use these body dimensions to check holder seating, side clearance and the space available above the cuvette for filling and handling.

Z Height is not listed for this SKU. If your instrument uses a fixed beam height or a tight fluorescence collection geometry, confirm the beam position against your holder rather than relying on the outer body dimensions alone.

Solvents and cleaning

These are quartz cuvettes. For a general overview of quartz cuvette construction options, see Compare fabrication options.

Do not use hydrofluoric acid on quartz. Avoid hot strong alkalis and abrasive cleaning. Chemical limits for this exact SKU are not otherwise established here, so match the cell to your actual sample and cleaning chemistry before use, then rinse promptly and wipe the exterior optical faces gently with non-abrasive optical tissue.

Included with this option

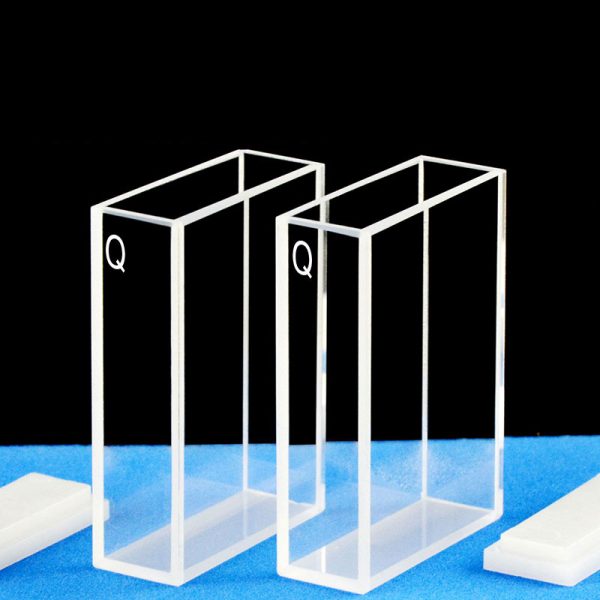

The listed price covers 2 C304CA1 fluorescence cuvettes, with accompanying lids and a storage box.

Availability and ordering

Order this specification directly, or contact us to check current availability and dispatch timing. If temporarily unavailable, additional preparation or production time may be needed. For a required delivery date, contact us before checkout; preparation or production is separate from carrier transit and customs clearance.

Discuss a custom version

We coordinate custom JGS1 quartz production for changes to dimensions, optical path length, sample volume, optical windows or Z Height, closures and connections, and tolerance requirements. Send a labelled drawing or sketch together with holder details, wavelength range, sample conditions and target quantity. Discuss your requirements and quote part number C304CA1.
