(C032CR4) Quartz Rectangular Sample Cell, 3 mm Path, 1.05 mL, Pack of 2

Weight	30 g

SKU: C032CR4

Original price was: $148.00.Current price is: $134.00.

In Stock

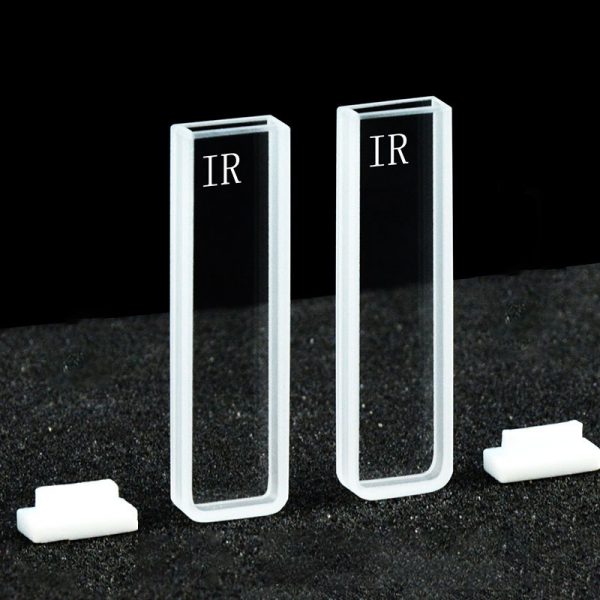

C032CR4 is a pack of 2 JGS3 quartz rectangular sample cells for infrared spectroscopy and visible absorbance measurements. Each cell combines a 3 mm optical path, Two-Way Light transmission, a 1.05 mL nominal capacity and an open-top format with an included closure. Supplied as 2 cells per listed price unit.

In Stock

SKU: C032CR4 Categories: Cuvettes, Products, Quartz Standard Cuvettes Brand: MachinedQuartz

Shipping and order support

Worldwide delivery to door service, hassle free shipping
Contact us for quotation of bulk purchase discount
Custom design. Send us graphic drawing for solution
POs for Academics. Pay after delivery.
Availability and dispatch timing vary by item and quantity. Contact us to confirm timing for your order.

Description

C032CR4 is a pack of 2 JGS3 quartz rectangular sample cells for infrared spectroscopy and visible absorbance work. Each cell combines a 3 mm optical path, Two-Way Light layout and 1.05 mL nominal capacity in a slim rectangular body, making this option useful when you want the same cell format for paired work, routine blank-and-sample handling or a spare kept ready in the lab. The body size for each cell is 12.5 × 5.5 × 45 mm, with an open top and included closure.

Path Length: 3 mm
Sample Volume (Nominal): 1.05 mL
Opening Configuration: Open Top

Selection Specifications

Product Kind	Cuvette
Cell Type	Rectangular Sample Cell
Measurement Mode	Infrared Spectroscopy; Visible Absorbance Spectroscopy
Pack Quantity	Pack of 2
Path Length	3 mm
Light Transmission Configuration	Two-Way Light
Wavelength Range — Lower Limit	260 nm
Wavelength Range — Upper Limit	3500 nm
Sample Volume (Nominal)	1.05 mL
External Dimensions	12.5 × 5.5 × 45 mm
Cell Body Dimensions	12.5 × 5.5 × 45 mm
External Dimensions Scope	Body Only
Material	Quartz
Material Grade	JGS3
Closure Type	Lid
Closure Included	Yes
Opening Configuration	Open Top

Choose this option

Choose C032CR4 when your method is set up for a 3 mm rectangular transmission cell and you want two physical cuvettes under one SKU. The JGS3 quartz body is specified for use from 260 to 3500 nm, covering infrared measurements as well as visible absorbance work. The open-top format also gives direct filling access for routine sample preparation and rinsing between runs.

What makes this option different

2 cuvettes per listed price unit for paired routine use, blank-and-sample handling or backup availability.
3 mm optical path for methods built around a short rectangular transmission length.
Two-Way Light configuration with opposed optical faces for transmission measurements.
Open-top rectangular body with 12.5 × 5.5 × 45 mm body dimensions for each cell, excluding the closure from the stated size.

Using this cell

Fill each cell from the open top and make sure the sample covers the beam area before measurement. Use the 3 mm path length in your method setup, remove visible bubbles, and keep the orientation consistent between blank and sample runs.

With a two-cell sale unit, many users keep one cell for the blank or duplicate preparation while the second stays available for sample measurement or as a ready spare. Handle both by the non-optical sides where possible to keep the measurement faces clean.

First-use check

Inspect both cells on arrival, then rinse and run a blank before routine use. Confirm that each cell seats properly in your holder and that the beam passes through the intended optical faces without bubbles, dust or residue in the sample region.

Fit and optical alignment

The listed 12.5 × 5.5 × 45 mm dimensions apply to the body of each cell only. Check holder width, seating depth and top clearance if your instrument compartment is tight, because the closure is not included in the stated body dimensions.

Z Height is not specified for this SKU. If your instrument or holder depends on a defined beam-center height, confirm that requirement before ordering.

Solvents and cleaning

This quartz cell style is intended for infrared and visible transmission use, but the chemical limits for this exact SKU are not stated here. If your method uses aggressive chemicals, heated cleaning or extended contact conditions, review suitability before routine use.

Do not use hydrofluoric acid on quartz. Avoid hot strong alkalis and abrasive cleaning, and clean the optical faces gently with non-abrasive optical tissue. For general background on MQ cuvette construction options, see fabrication method of cuvettes.

Included with this option

Two C032CR4 rectangular sample cells, each supplied with an included closure.

Availability and ordering

Order this specification directly, or contact us to check current availability and dispatch timing. If temporarily unavailable, additional preparation or production time may be needed. For a required delivery date, contact us before checkout; preparation or production is separate from carrier transit and customs clearance.

Discuss a custom version

If you need a different path length, body geometry, sample volume, optical window arrangement, Z Height or closure style, we can review a custom JGS1 quartz version. Please send your drawing or labelled sketch, holder or instrument details, key dimensions and tolerances, sample conditions and target quantity through our contact page, and quote part number C032CR4.
