Quartz 5mm Standard Cuvette, 1.75ml, Molded 0.01, Two-way Light, PTFE Cap, Pack of Two, C052CF2

Weight	30 g

SKU: C052CF2

C052CF2 5mm Quartz Two-way Light Standard Cuvette, 1.75ml, Molded 0.01, PTFE Cap

~~USD$189.00~~ USD$171.00

In Stock

Quartz 5 mm standard cuvette for absorbance spectroscopy (190–2500 nm). 1.75ml volume, Molded 0.01 (>83% transmittance), two-way light windows, ptfe cap. Sold as a pack of two. SKU: C052CF2

In Stock

SKU: C052CF2 Categories: Cuvettes, Products, Quartz Standard Cuvettes

Worldwide Timed Dispatch Available

Free Shipping apply to all orders over $1800
Worldwide delivery to door service, hassle free shipping
Contact us for quotation of bulk purchase discount
Custom design. Send us graphic drawing for solution
POs for Academics. Pay after delivery.
Fast dispatch. Receive deliveries in 1 - 2 weeks.

Description

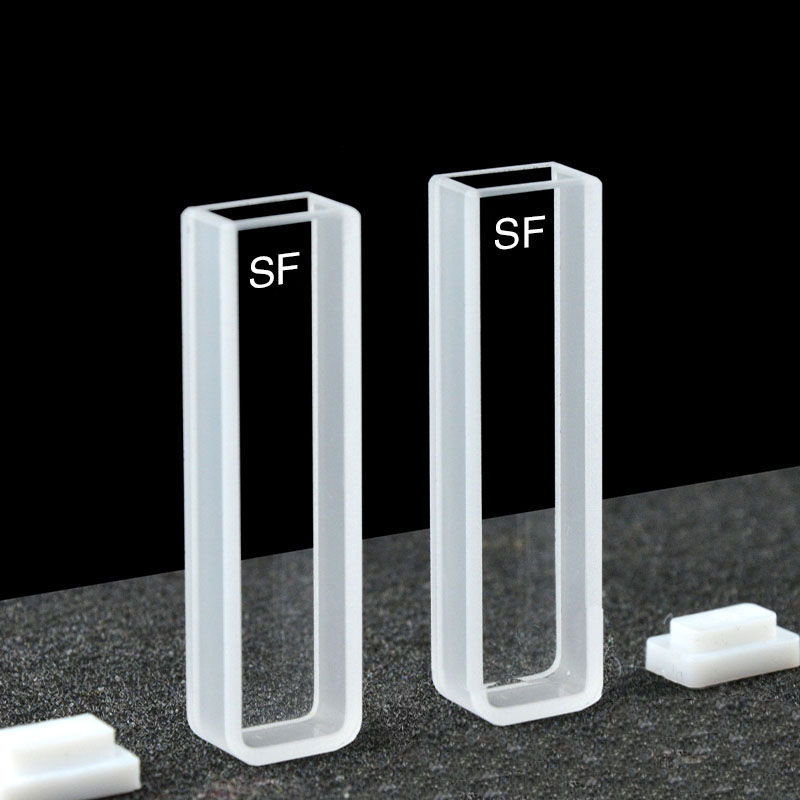

The C052CF2 is a quartz (fused silica) standard cuvette with 5 mm path length and two-way light optical windows, designed for UV-Vis and NIR spectrophotometry across 190–2500 nm. The two-way light configuration transmits the beam through two opposing polished optical faces while the two frosted sides minimize stray light interference and internal reflections, delivering clean baseline performance for absorbance measurements. Fabricated using Molded 0.01 — the highest-precision integrally fused one-piece construction available — achieving >83% transmittance and an exceptionally tight path length tolerance of ±0.01 mm. This premium fabrication withstands temperatures up to 1200 °C and resists all common laboratory solvents, acids, and bases. The ±0.01 mm tolerance is critical for the most demanding quantitative work where path accuracy directly impacts measurement reliability. Includes a ptfe cap for chemical-resistant sealing. Supplied as a pack of two for cost-effective parallel or comparative experiments.

Technical Specifications
Material	Quartz (Fused Silica)	SKU	C052CF2
Type	Standard Cuvette	Path Length	5 mm
Volume	1.75ml	Optical Windows	Two-way Light
Fabrication	Molded 0.01	Transmittance	>83%
Wavelength	190–2500 nm	Cap	PTFE Cap
Exterior Dimensions	12.5 × 7.5 × 45 mm	Interior Dimensions	10 × 5 × 43 mm
Package	Pack of Two	Path Tolerance	±0.01 mm

Applications

◆ UV-Vis absorbance spectrophotometry across the full 190–2500 nm range

◆ Beer-Lambert law concentration determination and calibration curves

◆ Pharmaceutical dissolution testing and active ingredient quantification

◆ Environmental water quality analysis (COD, BOD, nitrate, phosphate)

◆ Chemical kinetics and reaction rate monitoring

◆ Teaching laboratories and routine analytical measurements

Why This Cuvette?

The two-way light configuration (two polished optical faces, two frosted sides) provides clean absorbance measurements with minimal stray light. The frosted faces reduce internal reflections and scattering, improving baseline stability and signal-to-noise ratio — particularly important for low-absorbance measurements near the detection limit. The 5 mm path length reduces absorbance by 2× compared to a standard 10 mm cuvette (Beer-Lambert law: A = εlc), making it well-suited for moderately concentrated samples that would saturate a longer-path cell.

Usage Tips: Handle the cuvette by its frosted (non-optical) sides to avoid fingerprints on the polished windows. Fill to at least 15 mm above the beam center height to avoid meniscus effects in the light path. Clean with spectroscopic-grade solvent and lint-free tissue after each use. For aqueous samples, rinse with deionized water first, then solvent. Avoid prolonged ultrasonic cleaning which can stress the optical bonds over time. Store upright in the original case when not in use. Compatible with Shimadzu, Agilent, PerkinElmer, Thermo Fisher, JASCO, and most commercial UV-Vis spectrophotometers with standard 12.5 mm cuvette holders.

Custom Orders & Academic Purchasing: Need a custom size, path length, or window configuration? We manufacture made-to-order cuvettes tailored to your specifications. Academic institutions: we accept Purchase Orders (POs) with pay-after-delivery terms. Contact us for quotes and custom requests.

Disclaimer: This product is intended for laboratory and research use only. It is not designed, approved, or intended for use in medical diagnostics, therapeutic procedures, or any clinical application involving human or animal subjects. The buyer assumes all responsibility for determining the suitability of this product for their specific application.
