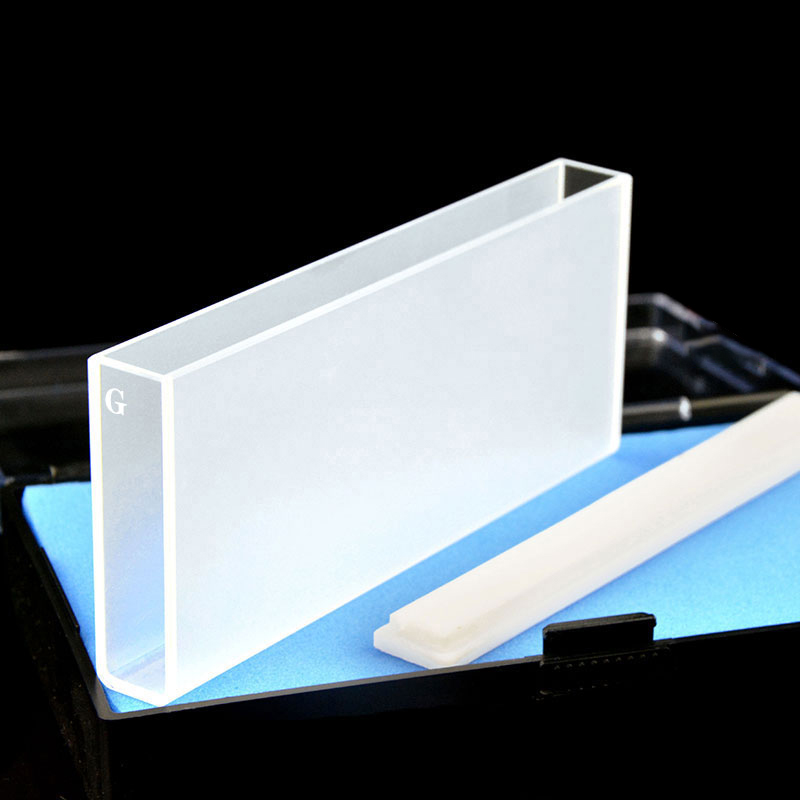

(C1002CA) Glass Standard Cuvette, 100 mm Path, 35 mL
9%
Original price was: $57.00.$52.00Current price is: $52.00.
C1002CA is a glass standard cuvette with a 100 mm optical path and 35 mL nominal capacity. Its open-top body is supplied with a lid, giving direct filling access in a long-path rectangular format. Listed price is for 1 cuvette.
In Stock
Description
C1002CA is a glass standard cuvette built for measurements that use a 100 mm optical path in a long rectangular cell body. Its 35 mL nominal capacity suits methods that need a larger filled sample volume, and the lid-equipped open top gives straightforward access for filling and emptying. The stated wavelength range for this glass cell is 350–2000 nm.
- Path Length
- 100 mm
- Sample Volume (Nominal)
- 35 mL
- Closure Type
- Lid
Selection Specifications
| Product Kind | Cuvette |
|---|---|
| Cell Type | Standard Cuvette |
| Measurement Mode | Absorbance Spectroscopy |
| Path Length | 100 mm |
| Light Transmission Configuration | Two-Way Light |
| Wavelength Range — Lower Limit | 350 nm |
| Wavelength Range — Upper Limit | 2000 nm |
| Sample Volume (Nominal) | 35 mL |
| External Dimensions | 12.5 × 102.5 × 45 mm |
| Uncapped Cell Dimensions | 12.5 × 102.5 × 45 mm |
| External Dimensions Scope | Uncapped Cell |
| Material | Glass |
| Closure Type | Lid |
| Closure Included | Yes |
Choose this option
Choose C1002CA when your method is written around a 100 mm path and a full-length standard cuvette shape rather than a shorter cell. This option combines a long optical path, a large nominal volume and a simple top-opening format, which is useful when you want direct sample access without moving to a flow cell or a special chamber design.
What makes this option different
- 100 mm optical path for long-path absorbance measurements in a standard rectangular body.
- 35 mL nominal capacity suits methods built around a relatively large sample fill.
- Open-top cell with lid allows direct top filling and routine covered handling.
- Glass construction with a stated wavelength range of 350–2000 nm.
- Supplier-described fused integrated construction identifies the joining style, but does not by itself define chemical limits or a sealing rating.
Using this cell
Fill the cell from the top so the liquid fully covers the beam region used in your instrument. For blank and sample runs, keep the same orientation and check that bubbles are not trapped in the optical path.
The lid covers the opening during routine handling, but this product is not described as a sealed assembly. Use the nominal 35 mL capacity as the overall chamber size only; a minimum working volume is not established here.
First-use check
Inspect the optical faces for chips, scratches or residue, then test-fit the empty cell in the holder. Before routine work, run a blank at the intended fill level and confirm that the beam passes through the liquid region as expected.
Fit and optical alignment
The uncapped body dimensions are 12.5 × 102.5 × 45 mm. That long body shape matters when checking holder depth, compartment space and the clearance needed above the opening and lid during insertion and removal.
Z Height is not established for this SKU. If your instrument or holder needs a defined beam-center height, confirm that point before ordering instead of assuming fit from the outer dimensions alone.
Solvents and cleaning
Chemical limits are not established here for this exact SKU, so choose your sample and cleaning routine with the full glass-and-lid assembly in mind. If your work involves aggressive chemicals, dedicated rinse solvents or prolonged contact, check suitability before use.
For a general overview of cuvette construction approaches, see fabrication method of cuvettes.
Included with this option
1 cuvette per listed price unit. A lid is included.
Availability and ordering
Order this specification directly, or contact us to check current availability and dispatch timing. If temporarily unavailable, additional preparation or production time may be needed. For a required delivery date, contact us before checkout; preparation or production is separate from carrier transit and customs clearance.
Discuss a custom version
If you need a different path length, body size or a quartz version for a modified design, send a drawing or describe the change you need. Custom enquiries are assessed separately from this listed specification.
Additional information
| Weight | 100 g |
|---|
