(C102CS34) Glass Micro Cuvette, 10 mm Path, 350 µL
6%
Original price was: $18.00.$17.00Current price is: $17.00.

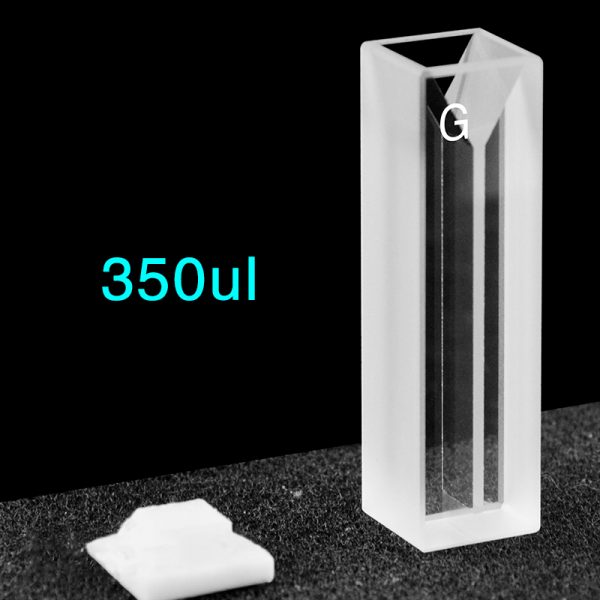

C102CS34 is a glass micro cuvette for visible absorbance spectroscopy with a 10 mm optical path, 350 µL nominal capacity and a 1 mm sample region. Its Two-Way Light layout suits straightforward transmission measurements in a compact cell format. Sold as 1 cuvette, with a PTFE lid included.
In Stock
Description
C102CS34 is a glass micro cuvette for visible absorbance work when you need a 10 mm path in a compact 350 µL format. The Two-Way Light layout and narrow 1 mm sample region make it suitable for methods that use a small illuminated section. This option is sold as 1 cuvette, with a PTFE lid included.
This is a visible-light cell rather than a UV cell, so it should be selected only for methods that stay in the visible range. It uses adhesive-bonded Standard 80 construction, which also limits chemical use and cleaning choices.
- Path Length
- 10 mm
- Sample Volume (Nominal)
- 350 µL
- Closure Type
- Lid
Selection Specifications
| Product Kind | Cuvette |
|---|---|
| Cell Type | Micro Cuvette |
| Measurement Mode | Visible Absorbance Spectroscopy |
| Pack Quantity | 1 Piece |
| Path Length | 10 mm |
| Light Transmission Configuration | Two-Way Light |
| Optical Window Dimensions | 1 mm |
| Sample Volume (Nominal) | 350 µL |
| Material | Glass |
| Closure Type | Lid |
| Closure Material | PTFE |
| Closure Included | Yes |
| Fabrication Method | Standard 80 |
| Detection Channel Width | 1 mm |
Choose this option
Choose C102CS34 when your method is firmly in the visible range and you want a single micro cuvette rather than a multi-piece purchase. The 10 mm path keeps a familiar absorbance path length, while the 350 µL nominal capacity and 1 mm sample region suit compact sample handling and a narrow illuminated section.
What makes this option different
- Glass body for visible absorbance spectroscopy only.
- 10 mm optical path with 350 µL nominal capacity.
- Two-Way Light configuration with a 1 mm sample region.
- Supplied as 1 cuvette per price unit, with a PTFE lid included.
Using this cell
Fill the cell so the illuminated region is fully covered during measurement, and keep bubbles or droplets away from the optical faces. The 350 µL value is a nominal capacity, not a minimum working volume, so your own method should determine the fill needed for reliable beam coverage.
Use the same orientation for blank and sample measurements, especially if you are working with a narrow beam section. Seat the PTFE lid gently after filling, but do not use it as a pressure-rated closure.
First-use check
- Inspect the optical faces for dust, residue or visible marks.
- Test fit the empty cuvette in your holder before preparing sample.
- Run a visible-range blank and confirm that the filled sample covers the beam without bubbles.
Fit and optical alignment
The key geometry provided here is the 1 mm sample region. Your beam should pass through that intended area without clipping the edges, so the holder and beam footprint should be checked together if your setup is tight.
External body dimensions are not established for this item, and Z Height is also not established. If your instrument compartment has limited clearance or a fixed beam-center position, confirm physical fit and beam alignment before ordering rather than assuming interchangeability with other micro cuvettes.
Solvents and cleaning
This adhesive-bonded Standard 80 cuvette has a restricted chemical range. Do not soak or rinse it with ethanol, and do not use acids, alkalis or organic solvents with this construction.
Use cleaning methods suitable for mild, water-based residue and wipe the optical faces gently with non-abrasive tissue. Avoid abrasive cleaning on both the cell body and the PTFE lid.
Included with this option
1 micro cuvette with 1 PTFE lid included.
Availability and ordering
Order this specification directly, or contact us to check current availability and dispatch timing. If temporarily unavailable, additional preparation or production time may be needed. For a required delivery date, contact us before checkout; preparation or production is separate from carrier transit and customs clearance.
Need a different fit?
We coordinate custom JGS1 quartz projects for requirements involving dimensions, optical path length, sample volume, optical windows, Z Height, closures and fabrication details. These custom quartz projects are separate from the listed glass SKU. Send a dimensioned drawing or labelled sketch, your holder or instrument information, the key dimensions and tolerances, and your sample conditions. Discuss your requirements and reference C102CS34.
Additional information
| Weight | 30 g |
|---|
