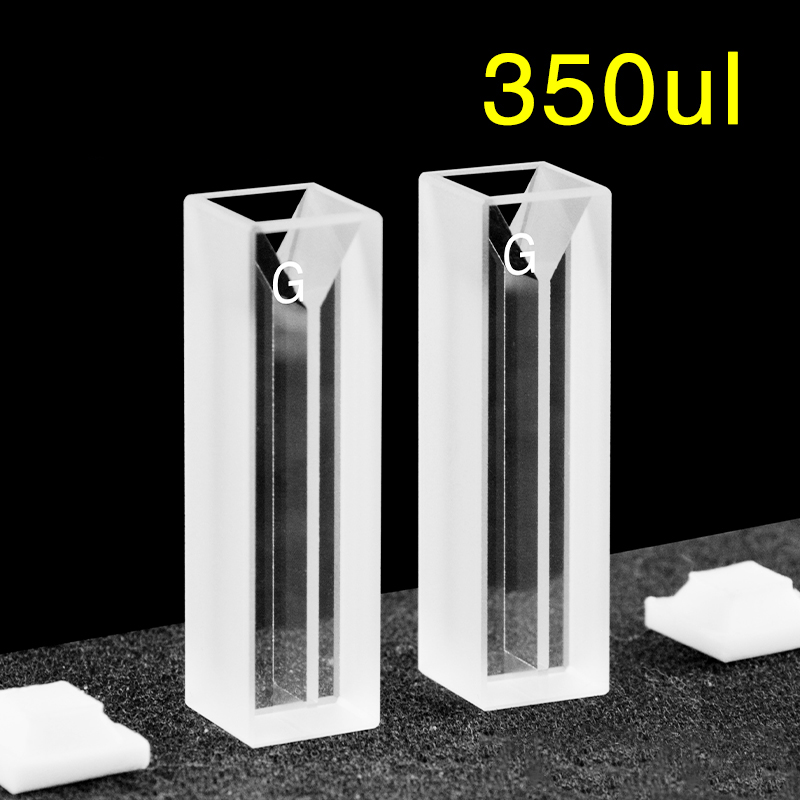

(C102CS42) Glass Micro Cuvette, 10 mm Path, 350 µL, Pack of 2

Weight	30 g

SKU: C102CS42

Original price was: $34.00.Current price is: $31.00.

In Stock

C102CS42 is a glass Micro Cuvette for visible absorbance measurements, combining a 10 mm optical path with a 350 µL nominal volume and a 1 mm sample-region width in a Two-Way Light layout. This option suits methods that need a full 10 mm path in a compact micro-volume format. Sold as a pack of 2; the package includes closures.

In Stock

SKU: C102CS42 Categories: Cuvettes, Glass Cuvettes, Products Brand: MachinedQuartz

Shipping and order support

Worldwide delivery to door service, hassle free shipping
Contact us for quotation of bulk purchase discount
Custom design. Send us graphic drawing for solution
POs for Academics. Pay after delivery.
Availability and dispatch timing vary by item and quantity. Contact us to confirm timing for your order.

Description

C102CS42 is a glass Micro Cuvette for visible absorbance work with a 10 mm optical path in a compact body. It combines a 350 µL nominal volume with a 1 mm sample-region width and a Two-Way Light layout, making it useful when your method needs a standard path length without moving to a larger cuvette format. This MQ sale unit is offered as a pack of 2, and the package includes closures.

Path Length: 10 mm
Sample Volume (Nominal): 350 µL
Closure Type: Lid

Selection Specifications

Product Kind	Cuvette
Cell Type	Micro Cuvette
Measurement Mode	Visible Absorbance Spectroscopy
Pack Quantity	Pack of 2
Path Length	10 mm
Light Transmission Configuration	Two-Way Light
Optical Window Dimensions	1 mm
Wavelength Range — Lower Limit	350 nm
Wavelength Range — Upper Limit	2000 nm
Sample Volume (Nominal)	350 µL
External Dimensions	12.5 × 12.5 × 45 mm
Cell Body Dimensions	12.5 × 12.5 × 45 mm
Uncapped Cell Dimensions	12.5 × 12.5 × 45 mm
External Dimensions Scope	Uncapped Cell
Material	Glass
Closure Type	Lid
Closure Included	Yes
Fabrication Method	Standard 80
Detection Channel Width	1 mm

Choose this option

Choose C102CS42 when your method calls for a 10 mm absorbance path but your sample volume and cell footprint need to stay small. The 1 mm sample-region width is part of this specific geometry, so it is worth selecting when that narrow sample region matters to your filling approach or measurement setup. The supplied closure helps cover the opening during routine handling, while the glass body is intended for visible-range use at 350–2000 nm.

What makes this option different

10 mm optical path in a micro-format cell for methods that use this common absorbance path length.
350 µL nominal volume for small-volume work without switching to a full-size cuvette body.
1 mm sample-region width as part of this option’s stated sample geometry.
Two-Way Light layout for transmission measurements through the defined optical path.
MQ sale unit of 2 for the listed priced option; closures are included.

Using this cell

Fill the cell so the illuminated path is covered during measurement, and load the sample carefully to avoid bubbles sitting in the optical region. For blank and sample readings, keep the same orientation each time so the optical faces and sample position remain consistent.

The 350 µL figure is a nominal capacity, not a minimum working volume. In practice, the fill level you need depends on your instrument beam position and how fully the liquid covers the light path in your own setup.

First-use check

Inspect the optical faces and edges for chips, dust or residue.
Test the uncapped body in your holder before routine use.
Add liquid and verify that your normal fill level covers the beam area.
Run blank and sample with the same cell orientation.

Fit and optical alignment

The uncapped cell body is 12.5 × 12.5 × 45 mm. That square-body size can help when you are matching the cuvette to a holder designed around compact rectangular cells, but it is still important to check holder width, insertion depth and the space above the opening.

Z Height is not specified for this item. If your instrument requires a known beam-center height, confirm that point before ordering. The stated dimensions apply to the uncapped body only, so allow extra vertical clearance for the supplied closure in your installation.

Solvents and cleaning

This cuvette uses Standard 80 construction. For this assembled cell, exact chemical compatibility is not specified, so check both the sample liquid and cleaning liquid against the complete wetted assembly before using unfamiliar reagents.

Use non-abrasive cleaning methods on the optical faces. Rinse promptly after use, and avoid harsh cleaning choices that may not suit the assembled glass-and-closure combination. The product is intended for visible absorbance use rather than UV work.

Included with this option

Supplied as 2 micro cuvettes. Lids are included.

Availability and ordering

Order this specification directly, or contact us to check current availability and dispatch timing. If temporarily unavailable, additional preparation or production time may be needed. For a required delivery date, contact us before checkout; preparation or production is separate from carrier transit and customs clearance.

Discuss a custom version

We can review custom quartz versions for requirements involving dimensions, path length, sample volume, optical windows, Z Height, closures and fabrication. Send a labelled drawing or sketch together with holder details, critical dimensions, sample conditions and target quantity. Discuss your requirements and quote part number C102CS42.
